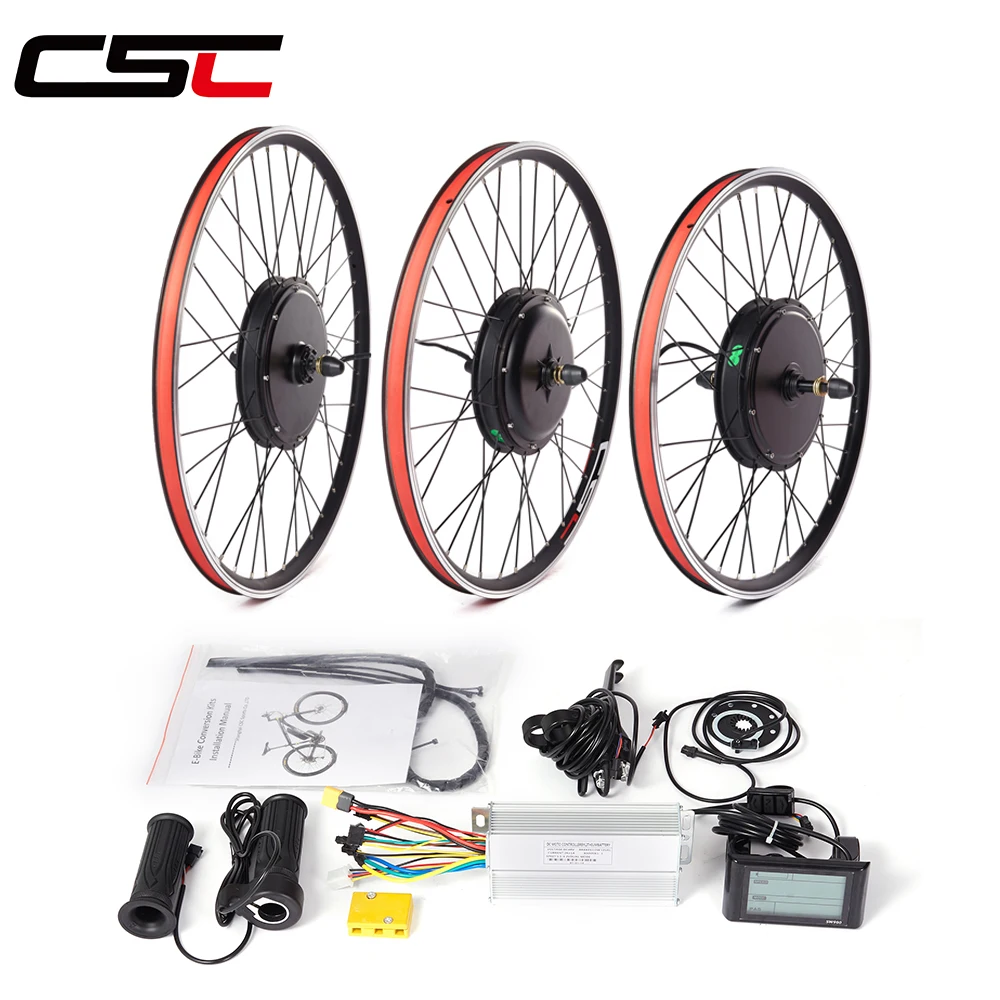

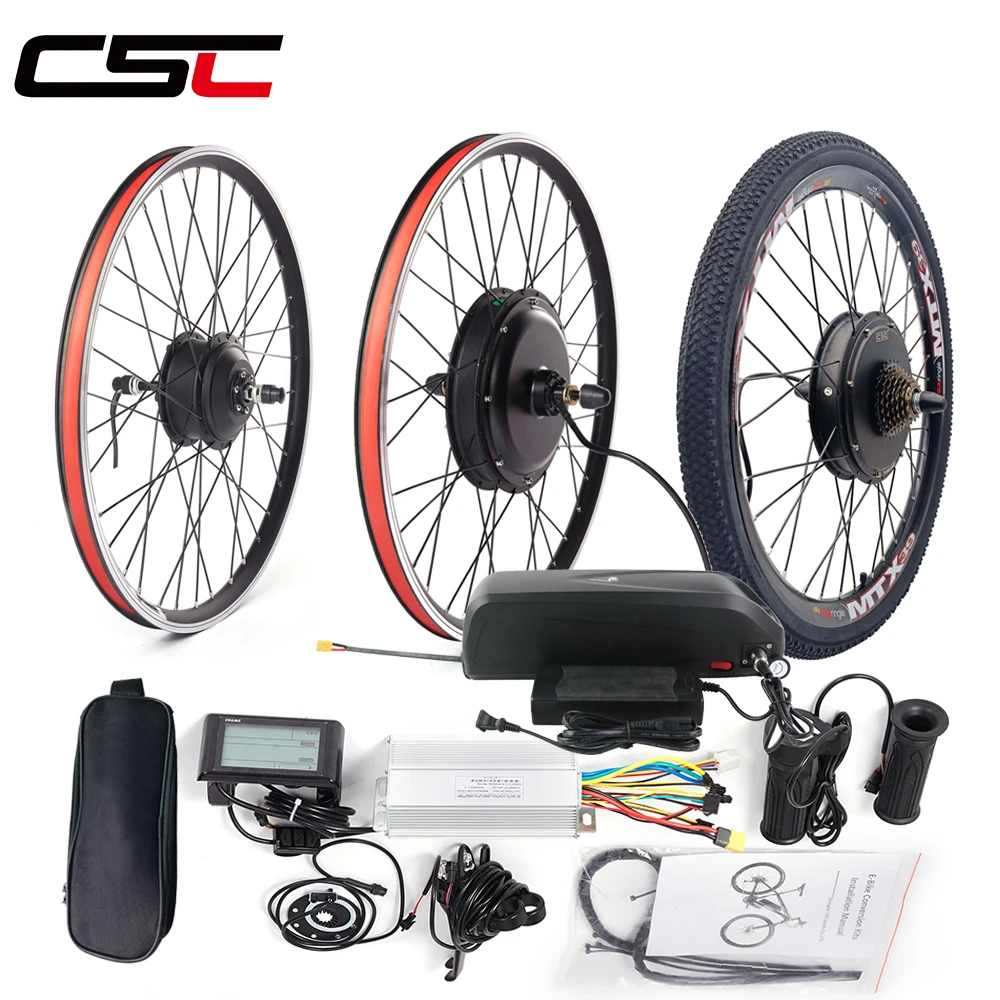

CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim
CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim - Image 2
CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim - Image 3
CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim - Image 4
CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim - Image 5
CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim - Image 6

CSC Electric Bike Conversion Kits 36V 250W 350W Front Rear Wheel hub motor 48V 1000W 1500W Electric Bicycle Brushless MTX rim

Availability:

800 in stock

Price range: 302,48 € through 1 092,83 €

  • Wattage: 201 – 300w
  • Design: Brushless
  • Voltage: 36V
  • Brand Name: CSC
  • Origin: Mainland China
  • Voltage: 36V 48V
  • power: 250W 350W 500W 750W 1000W 1500W
  • Rim: Brushless gearless,MTX no braking surface
  • Brake Type: v-brake, disc brake compatible
  • size: 20 inch 24 inch 26 inch 27.5 inch 28 inch 29 inch 700C
  • Motor shaft diameter: 36V M12 (12MM*10MM)，48V M14 (14MM*10MM)，
  • Note: Check the dimensions stamped on the tire before ordering
  • Item Width: Front 100mm Rear 135mm
  • Motor Type: 48V 1000W 1500W Brushless gearless motor,36V 250W 350W 500W Brushless gear motor,48V 500W Brushless gear motor
  • cassette: Suitable for 7 8 9 s
  • Thread freewheel: Suitable for 7 8 9 10s
  • Display: SW900
  • Installation location: front drive rear drive

Packing List

Click this link to see cheaper price

https://www.aliexpress.us/item/3256807314782371.html

If you choose CSC rim kit

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
If you choose CSC rim kit
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

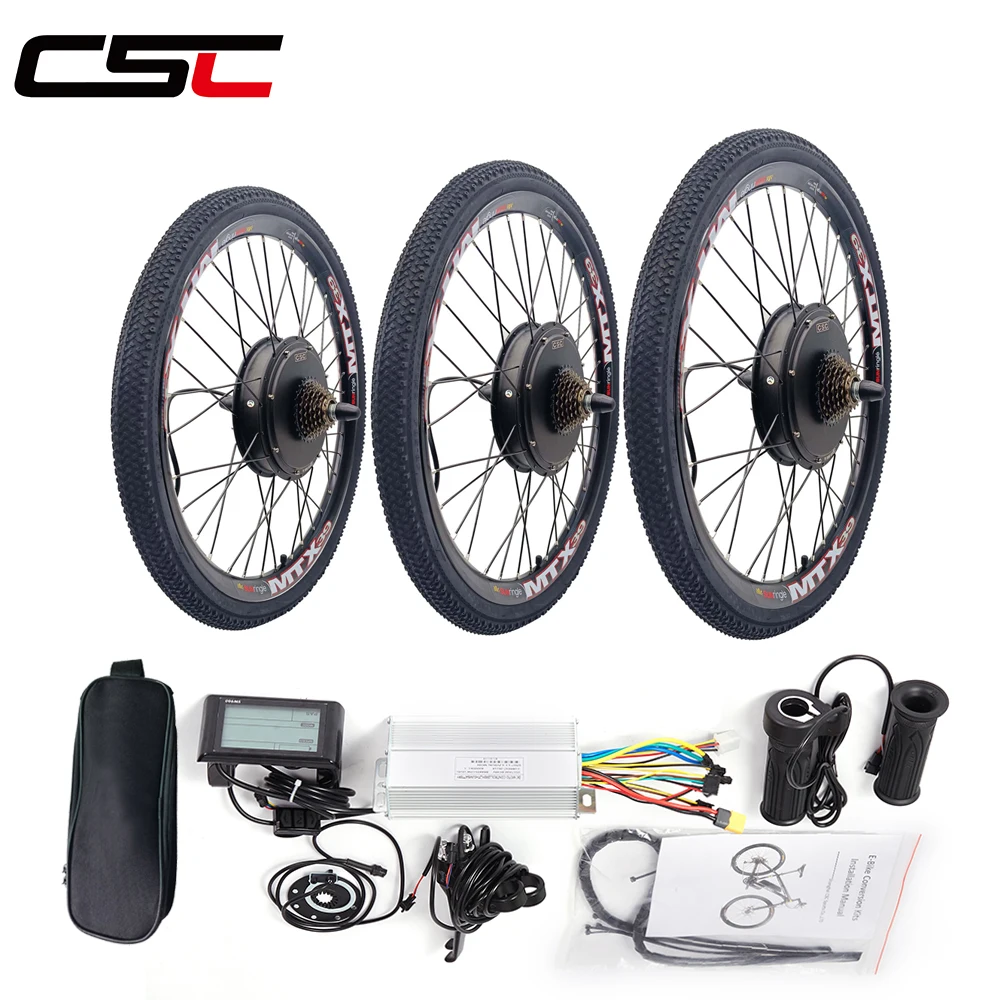

If you choose MTX rim kit

Noted:Conversion Kit not include Battery, ( If you need a Battery, Please contact us for an additional fee )
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

Motor Wheel

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 500W about 45-50km/h,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:
Brushless gear Hub Motor for 36V 250W 350W 500W ,48V 500W 750W
Brushless Non-gear Hub Motor for 48V 1000W 1500W
3. Rim: Double-wall Aluminium Alloy Rim
CSC rim ,inner width 25mm
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:35NM for 36v 250W 350W
40NM for 36V 500W 48V 500W ,
55NM for 1000W
60NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
425 for 48V 500W
470 for 48V 1000W
540 for 48V 1500W

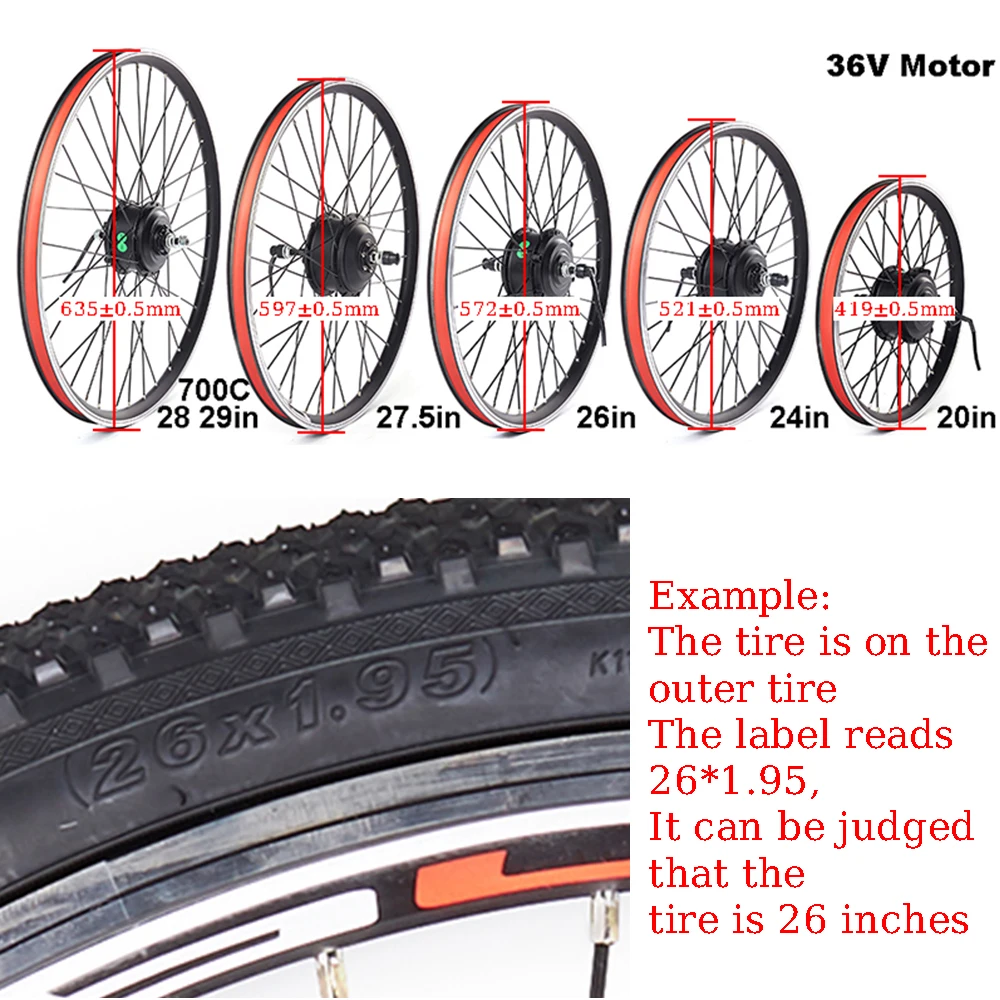

Example

The tire is on the outer tire :The label reads 26*1.95, It can be judged that the tire is 26 inches

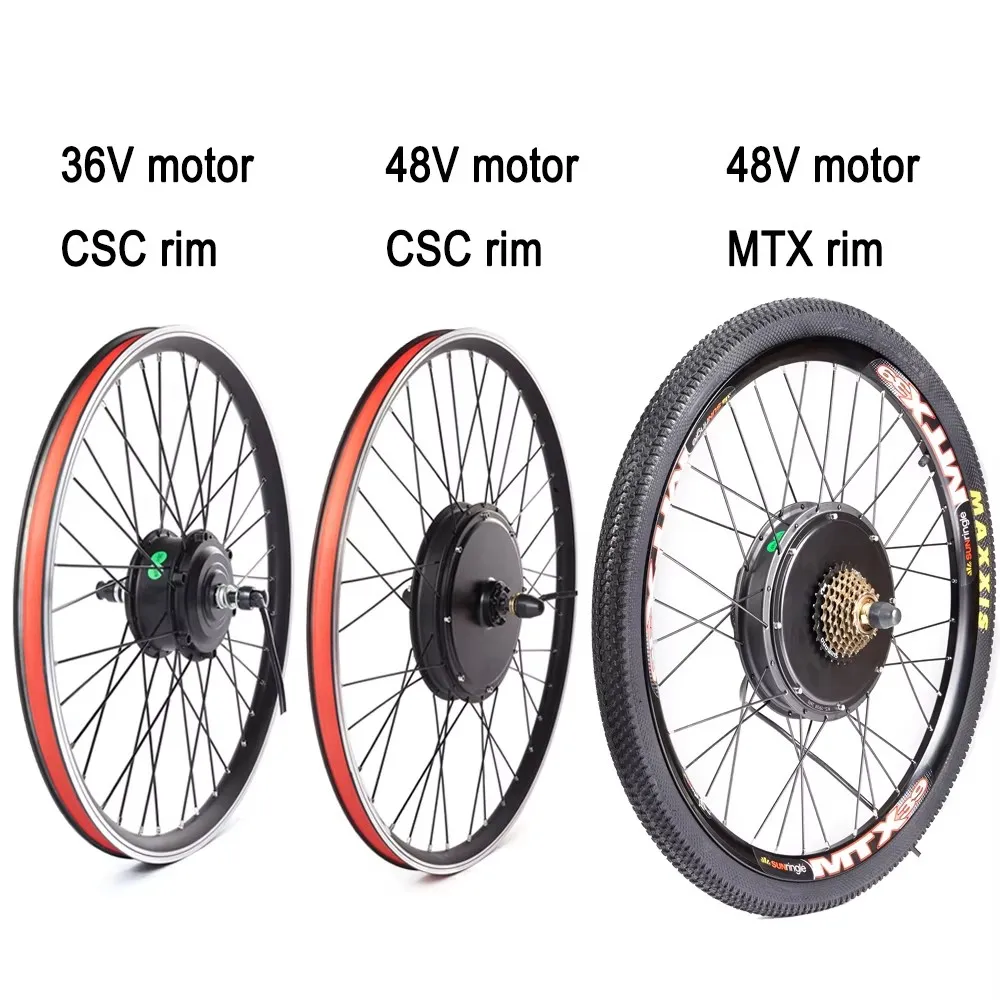

36V 250W 350W 500W 48V 500W 750W Motor CSC Rim

48V 1000W 1500W Motor CSC Rim

48V Motor MTX rim

Display

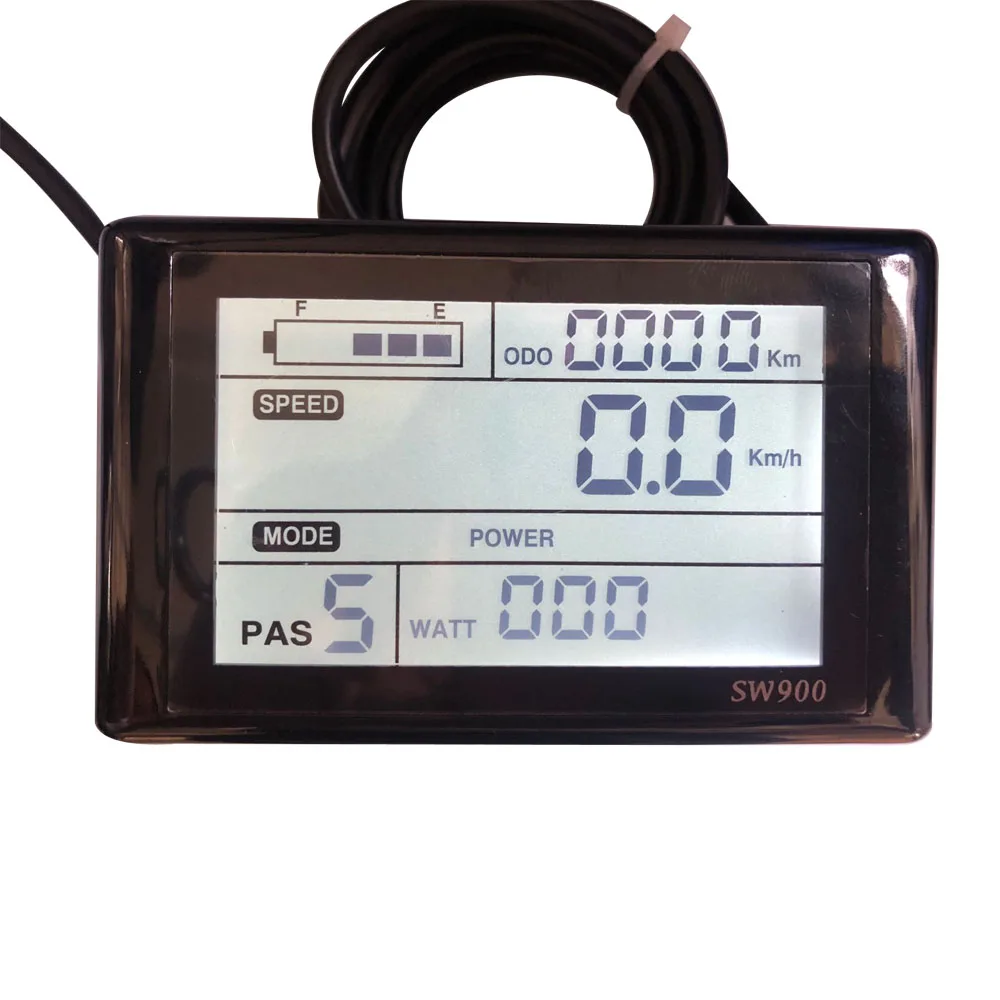

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 130*72*40mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 172*83*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 210*83*42mm

Controller Bag

PAS

KT BZ-4(8) Magnet

Throttle

Twist Throttle

Power cut-off brake leaver
