CSC 48V 500W 750W Ebike Conversion Kit hub motor 20in – 29in 700C Wheel Front Rear Drive Engine Gear motor for electric bicycle

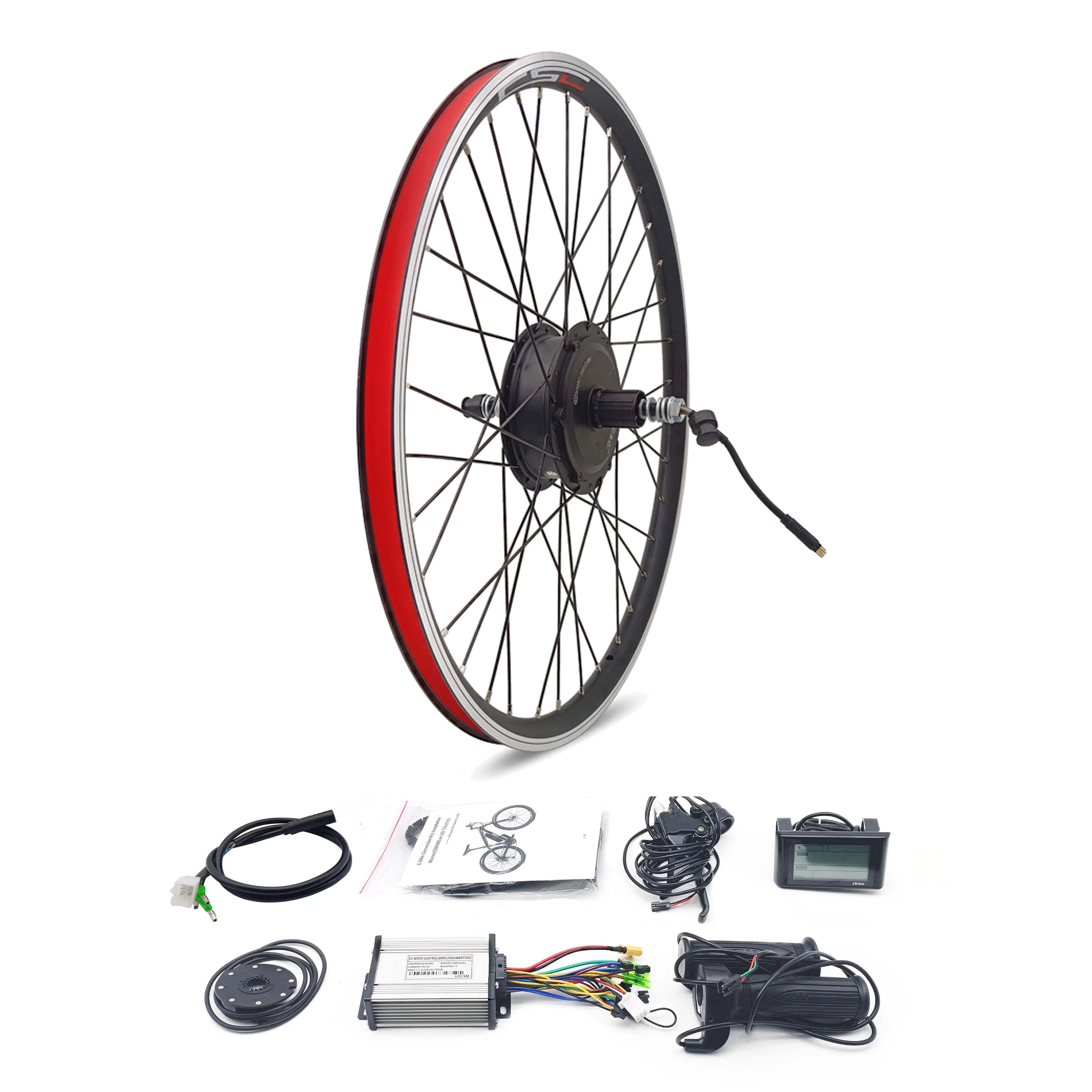

Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Front motor wheel , Rear motor wheel (Freewheel) ,Rear motor wheel (cassette)
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle
1 * extension cable

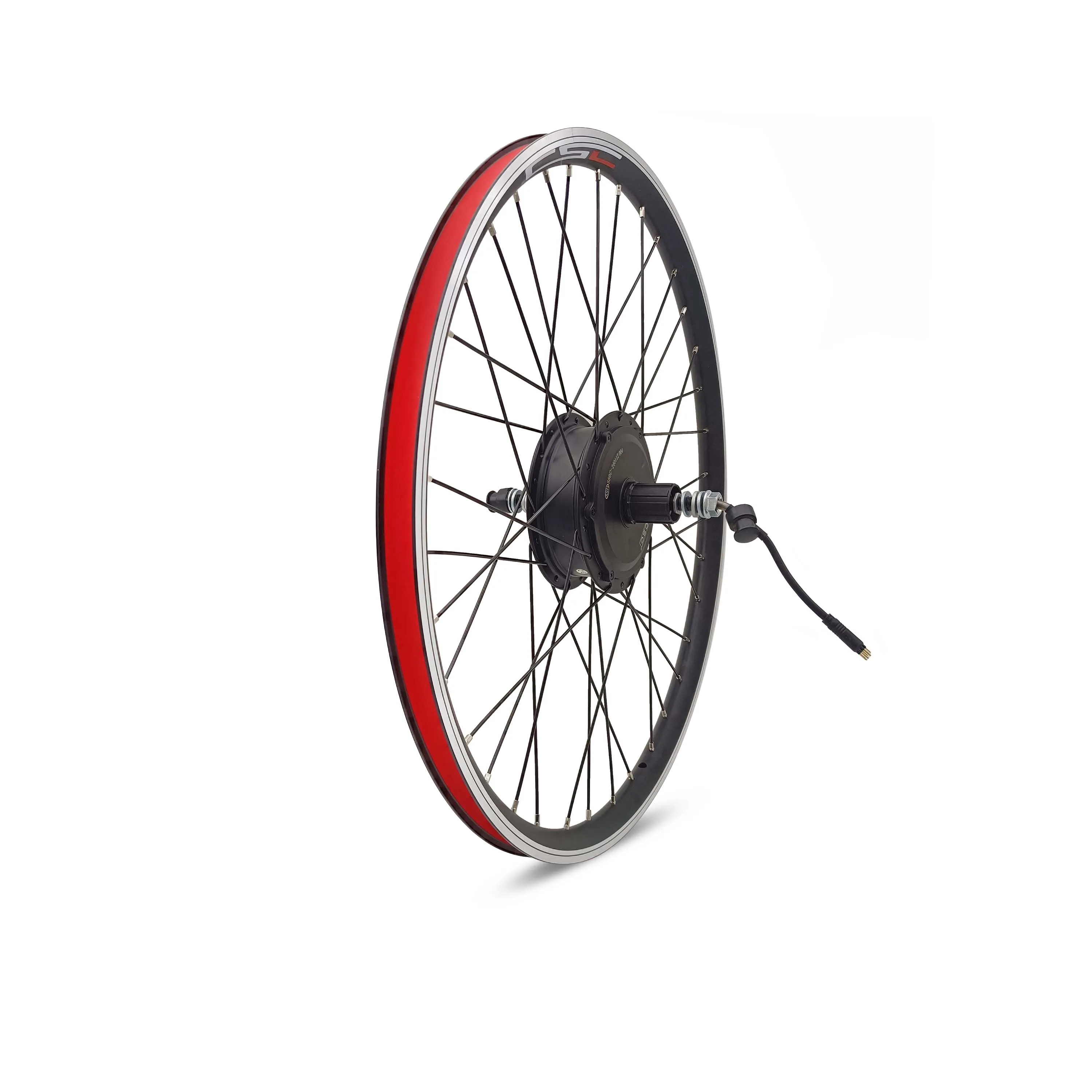

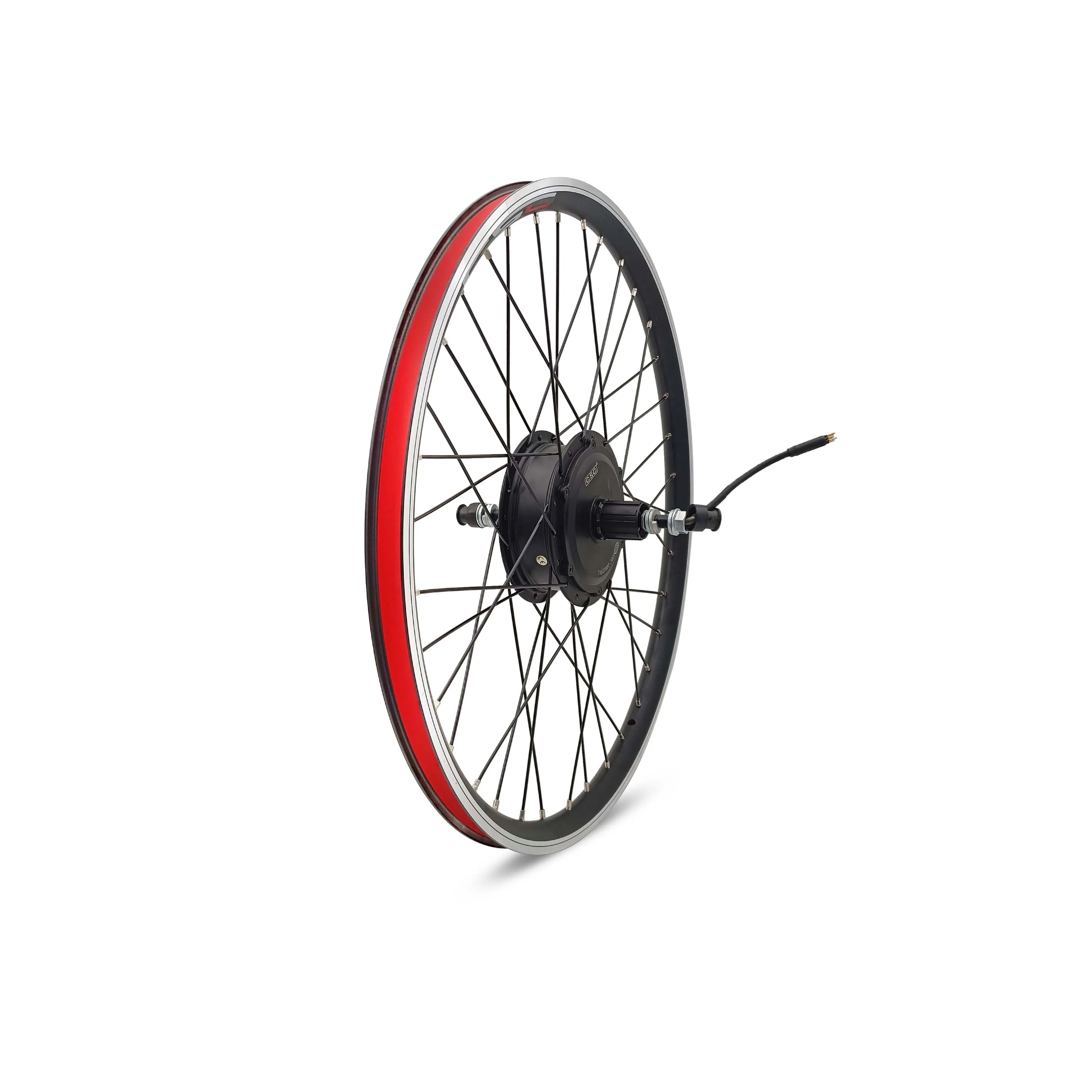

Motor Wheel

1. Motor idling speed
48V 500W about 45-50km/h,
48V 750W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm, Fonrt 100mm
5. Torque: 30-35NM for 500W ,35-40NM for 750W
6. RPM: 425RPM for 500W, 450RPM for 750W
7. Wheel Size Please check your tire description size

Display

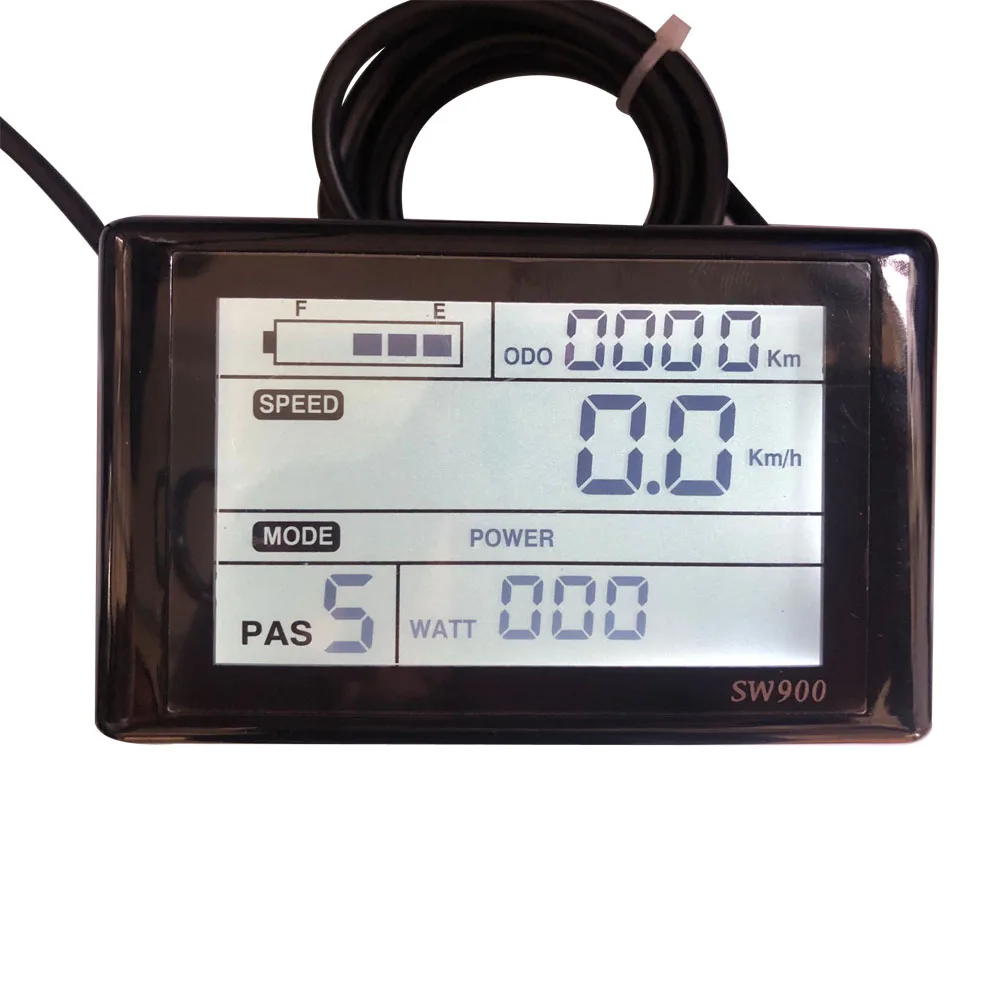

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller Bag

PAS

KT BZ-4(8) Magnet

Throttle

SW900 display uses Twist Throttle

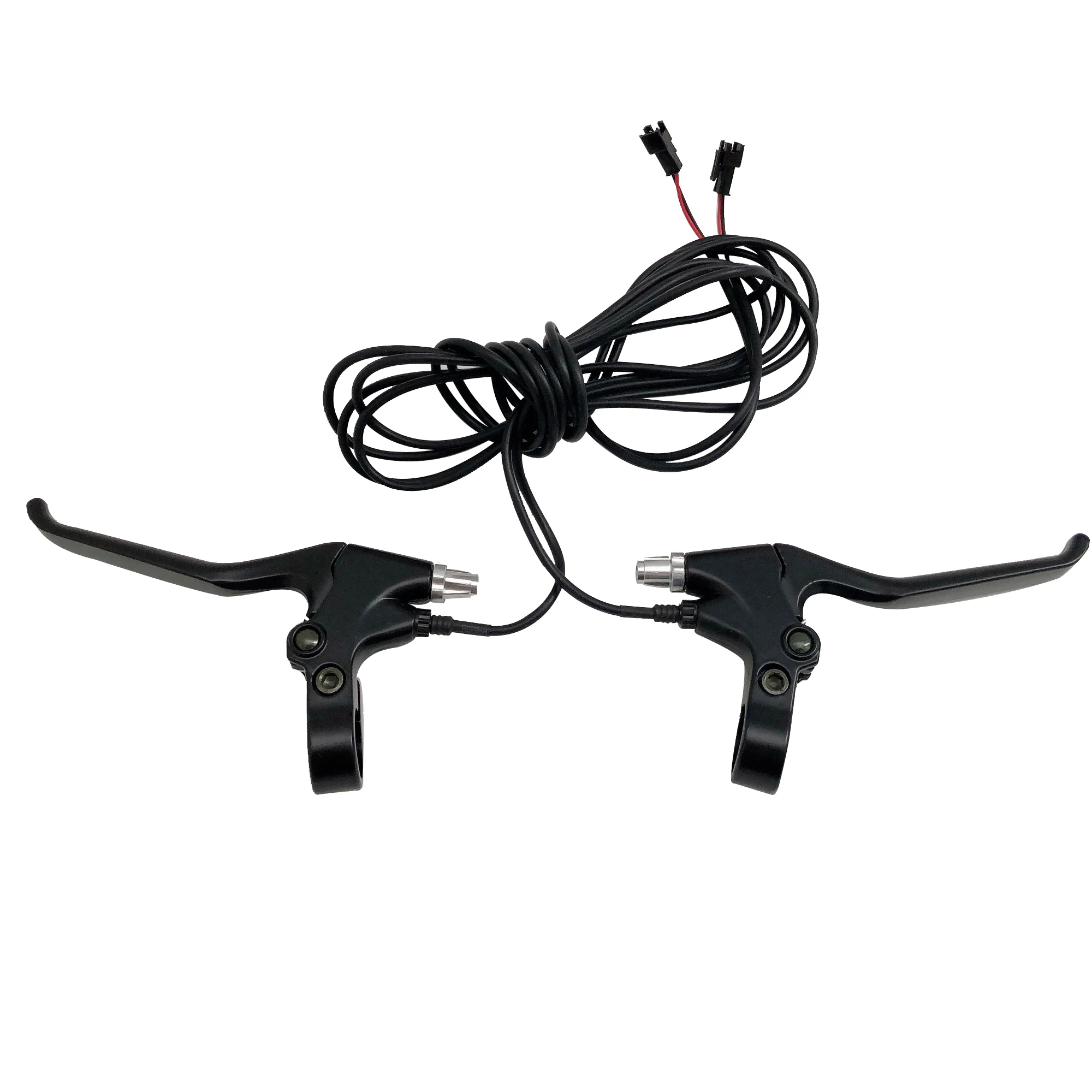

Power cut-off brake leaver
