Affichage du protocole CAN BAFANG pour kit moteur système CAN BUS DPC010 DPC080 EKD01 Bluetooth VD03 Mini VD618 VD61 Ebike HMI

Ebike CAN BUS Afficher

For BAFANG KITS

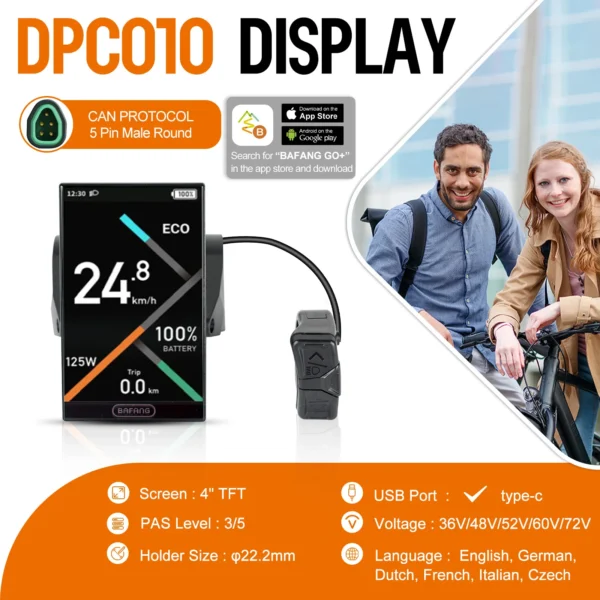

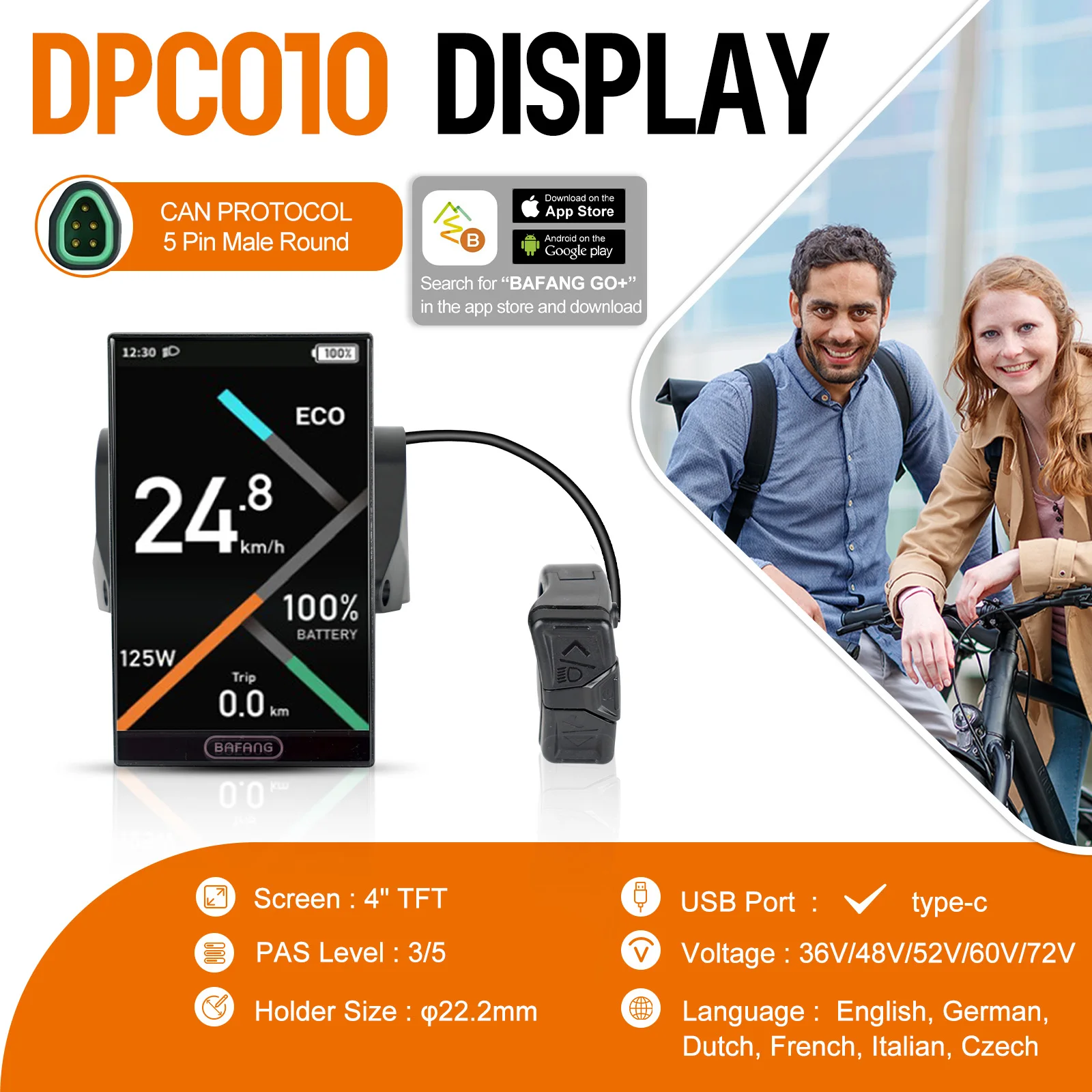

About  DPC010 PEUT

COMPATIBILITY BAFANG DPC010 display has a triangular connector specially designed for BAFANG motors with CAN protocol. It is compatible with the latest 2025 versions of BBS01B, BBS02B and BBSHD mid-mounted motors with CAN protocol. It also supports

BAFANG mid-engine systems M200, M400, M420, M500, M510, M600, M620, M625, M325 and M225

Key Distinguishing Feature This display supports OTA firmware upgrades, allowing both the display and controller to be updated directly from the device or BAFANG GO. In addition, map navigation is integrated – for more comfort when driving

Screen & Size The 4.0 inch HD TFT display allows clear and easy-to-read viewing while driving. The display is compatible with 22.2mm, 25.4mm and 31.8mm handlebars, the control button fits standard 22.2mm handlebars

Functions: IP66 waterproof, adjustable brightness, auto-off function, speed limit, wheel size adjustment, light-sensitive automatic, 0-5 PAS levels, miles/mileage switching, clock, power display (percentage/voltage), daily mileage, average speed. Supports multiple languages: English, German, Dutch, French, Italian and Czech – for worldwide usability

About  DPC080 PEUT

Display with CAN communication protocol for BAFANG mid-engines: specially designed for the BAFANG M400 and M500 mid motors with CAN communication protocol to ensure seamless and efficient communication between display and motor

Colourful and waterproof display with USB-C charging port: features a vibrant colour display, 2.5D curvature on the screen edges and a waterproof construction. Includes a USB-C charging port for convenient charging of devices such as smartphones

5 PAS LEVELS FOR IMPROVED RIDING EXPERIENCE Provides 5 levels of Pedal Assist System (PAS) to tackle different terrain types and inclines effortlessly, ensuring a smooth and supportive ride tailored to your needs

Synchronization with BAFANG GO APP for comprehensive ride data: fully compatible with BAFANG GO+ app, which allows you to view all your driving data and stats at a glance and get insights into your performance and progress

EXCLUSIVE COMPATIBILITY WITH CAN-ENABLED BAFANG MOTORS IMPORTANT NOTE: This display is only compatible with BAFANG motors using CAN communication protocol (triangular connection). It is not suitable for BAFANG BBS series engines. Please ensure compatibility before purchase

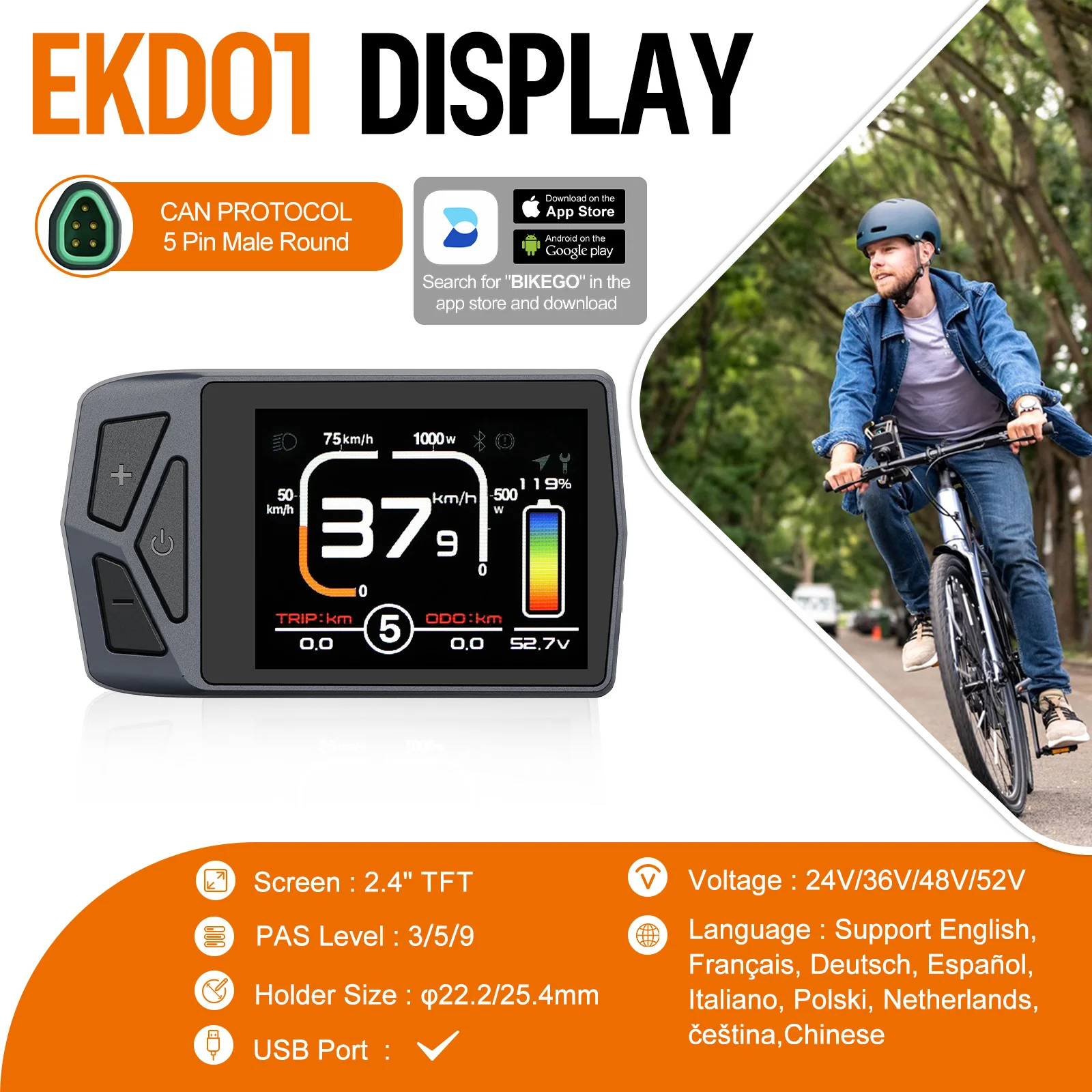

À propos  EKD01 CAN

EKD01 TFT LCD display: Consists of a 2.4 inch IPS colour display and three integrated buttons, it is a good choice for beginners. It offers an affordable price, easy operation and basic features, including optional 0-9 PAS levels and a Type-C charging port

[Compatibility & Installation] The EKD01 display is exclusively compatible with BAFANG electric motors that use the UART communication protocol versions 5.0 to 5.8. It fits handlebars with a diameter of Ø22.2/25.4 mm and its plug is a 5-pin round female connector. If you are not sure about the compatibility, please contact us before purchase

[Appearance & Material] Slim, modern design with a large, easy-to-read display. The case is made of high quality ABS plastic. Waterproof according to IP 67

The EKD01 has 9 adjustable languages (English, French, German, Spanish, Italian, Polish, Chinese, Dutch and Czech). The navigation feature makes it easy to find your way to your destination (5 free trials, then paid). Compared to other models, the odometer (ODO) can be set to zero

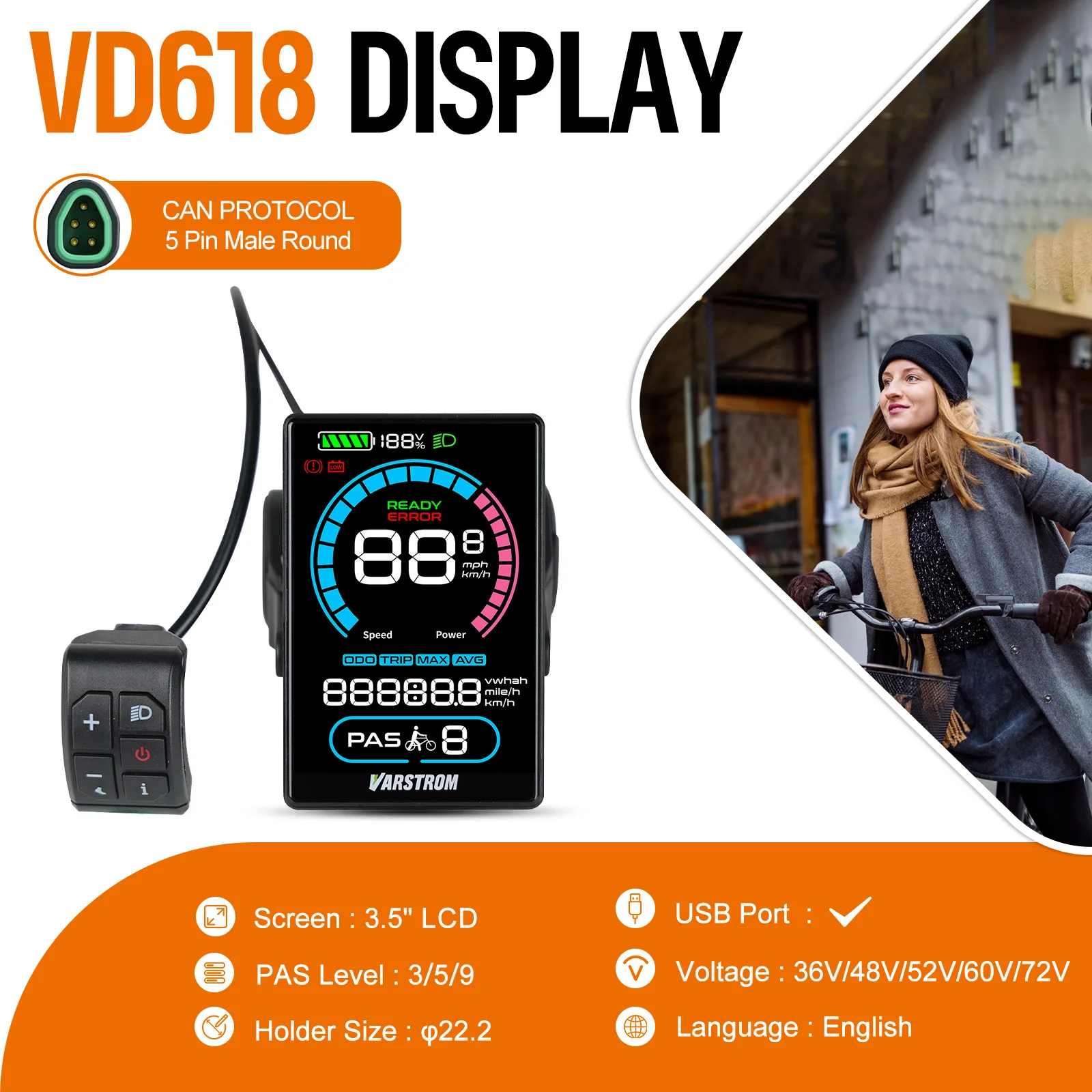

About  VD618 PEUT

Compatibility The Varstrom VD618 display features a triangular connector specially designed for BAFANG motors with CAN protocol. It is compatible with the latest 2025 versions of the BBS01B, BBS02B and BBSHD mid-engines updated to CAN. It also supports BAFANG mid-engine systems such as M200, M400, M420, M500, M510, M600, M620, M625, M325 and M225

Screen: The 3.5" HD LCD display provides clear, easy-to-read data at a glance – even while driving

Mounting dimensions The display is compatible with 22.2mm, 25.4mm and 31.8mm diameter handlebars, the control button fits standard 22.2mm handlebars

Functions: IP66 waterproof, PAS levels 0-3 / 0-5 / 0-9, USB Type-C charging port (5V 1000mA), adjustable brightness, automatic shutdown, speed limit, customizable wheel size, light-sensitive automatic, switchable miles/kilometre display, power display (percentage/voltage), daily odometer, total odometer and average u.v.m

About  VD61 PEUT

Compatibility The Varstrom VD61display features a triangular connector specially designed for BAFANG motors with CAN protocol. It is compatible with the latest 2025 versions of the BBS01B, BBS02B and BBSHD mid-engines updated to CAN. It also supports BAFANG mid-engine systems such as M200, M400, M420, M500, M510, M600, M620, M625, M325 and M225

Screen: The 3.5" HD LCD display provides clear, easy-to-read data at a glance – even while driving

Mounting dimensions The display is compatible with 22.2mm, 25.4mm and 31.8mm diameter handlebars, the control button fits standard 22.2mm handlebars

Functions: IP66 waterproof, PAS levels 0-3 / 0-5 / 0-9, USB Type-C charging port (5V 1000mA), adjustable brightness, automatic shutdown, speed limit, customizable wheel size, light-sensitive automatic, switchable miles/kilometre display, power display (percentage/voltage), daily odometer, total odometer and average u.v.m

About  VD03 PEUT

Compatibility: The Varstrom VD03 display has a three-pin connector specially designed for Bafang mid-motor with CAN protocol. It is compatible with the latest Bafang CAN protocol version 2025 for the mid-engines BBS01B, BBS02B and BBS03 as well as with mid-engine systems such as M200, M400, M420, M500, M510, M600, M620, M625, M3. 25 and M25225

Compact e-bike display: the 1.5 inch LED display in high resolution provides a clear and easy-to-read display even while driving. It is designed for standard handlebars with a diameter of 22.2 mm. Thanks to its compact design, the display can be attached discreetly and discreetly to the handlebar

APP SUPPORT The VD03 display is compatible with the "BIKEGO+" app, which allows advanced features such as resetting the total mileage. It displays basic driving information including auto shutdown, customizable wheel size, current speed, and support levels (PAS) in modes 0-3, 0-5 or 0-9

High Quality Speedometer: Made from durable ABS and PC plastic, the VD03 display is lightweight yet durable. IPX7 waterproof structure reliably protects against the elements (note: not suitable for extreme weather conditions)
