BAFANG BBSHD BBS03 BBS02B BBS02 BBS01B Ebike Mid Drive Motor Kit 1000W 750W 500W 350W 250W 52V 48V 36V 8Fun Electric Bike Engine
190 in stock
521,76 € – 986,65 €
- Bafang Model: BBS
- Wattage: > 400w
- Design: Brushless
- Voltage: 48V
- Brand Name: BAFANG
- Motor: Side Hung Motor
- Origin: Mainland China
- Protocol: CAN
- Motor Model: BBS01B/BBS02B/BBSHD
- Bafang Model: G340.250 – 750 / G320.1000
- Power: 250W/350W/500W/750W/1000W
- PAS SENSOR: Speed Sensor
- Reduction Ratio: 1 : 21.9
- Waterproof Grade: IP X5
- Bracket bottom length: 68mm-73mm/100mm/120mm
- Motor Operation Temperature: -20℃-45℃
- BBS Chainwheel: 36T 42T 44T 52T
- BBSHD Chainwheel: 40T 42T 44T 46T
- Brake System: Brake lever / Brake Sensor
- Warranty: 2 Years
- Warehouse & Maintain Point: France / Germany / Spain / Italy / Poland
- Delivery Time: 1-7 Day Delivery
- Usage: eMTB / eTour / eCity / eSpeed /
About this item
Powerful CAN BUS Mid Drive Motor Kit: BAFANG Mid Drive Motor Choose from 250W with 80N.m 500W with 100 N.m torque, 750W with 120 N.m torque, up to 1000W with 160 N.m torque. , this upgraded ebike conversion kit has upgraded current output stability, upgraded dual Hall speed sensors, battery communication function (need to be matched with a battery with communication function), and added taillight cable (with brake light function), providing better riding performance and experience
Unmatched Compatibility & Performance: The BAFANG 250w/500w/750w/1000W mid-drive motor is compatible with bottom brackets of 68-73mm, 100mm,120mm length, and 33.5-36mm inner diameter. Perfect for mountain bikes, road bikes, and commuter bikes. NOTE: Not for use with carbon fiber frames or bikes with pedal brakes
Comprehensive Package Contents: Your package includes BAFANG BBS01/BBS02B/BBS-HD mid drive motor, ebike display (Optional), sprocket, Dual Hall speed sensor and magnet, mechanical brake lever or brake sensor, crank, 1T4 EB-BUS cable, thumb throttle, locking nut, installation tool and headlight. If any component is missing, please contact us to take care of it immediately. The complete kit is designed for simple and efficient assembly, giving you peace of mind
Four Riding Modes:The unique four -type switching mode:Ebike mode(Throttle)&pedal assit mode&walk assit mode&normal bike mode, allows the ebike to adapt to more cycling scenes. Upgrade the consumer's cycling experience from three aspects: safety, convenience, and interesting. Just buy it now, you won't regret it. You'll loving your old bike again
EU Local Maintain Point : There are stocks in many countries to quickly process your orders. The local technical team solves the after -sales problems at any time. Our customer service is quickly,responsible and patient, ensuring a Peace-of-Mind post-sales experience
MID-DRIVE SYSTEMS
Bafang products convince by highest quality with best flexibility. We offer a variety of drive systems for different applications to provide the user with the best driving experience at all times. Learn more about Bafang and Power your Life.
M615
Super strong and efficient, this mid-drive system with a rated power of 1000W and a max torque of 160 Nm is an ideal upgrade for vehicles such as eSpeed and eCargo bikes. Compatible with frames with 68-120 mm bottom bracket width.
M315
Light but strong and efficient, this mid-drive system with a rated power of 500W /750W and a max. torque of 100 Nm provides ideal support for vehicles such as eTricycles, eTour and eCity bikes. Compatible with frames with 68 mm bottom bracket width.
M215
Powerful, cost effective, maintenance-friendly and easy to install. With its 250W rated power and 80Nm of max. torque, it delivers a more than welcome support to your ride. Compatible with frames with 68 mm bottom bracket width.
POWERFUL MOTOR & 3 CYCLING MODES
With the max torque 120 Nm , the 750W BAFANG electric bike conversion kit has excellent performance on climbing . Ride at the fastest speed with smallest effort , take it to exercise and have fun . There are 3 cycling modes for the mid-drive motor :E-bike , Pedal Assisting , Electric and Pedal Assisting . Various modes perfectly satisfy your different needs
WIDE COMPATIBILITY
BAFANG mid drive kit is compatible with 68-73mm /100mm/120mm (length) and 34-36mm (internal diameter) bottom bracket . You can install the mid drive motor on your mountain bike , road bike and commuter bike , not very recommended for bikes with carbon fiber frame or coaster brakes. Powerful 8fun motor makes your cylcing trip more exciting. Look forward to seeing your eBike conversion , enjoy the joy of riding right now
Note
1. Our BAFANG mid drive motors are compatible with the bike with inner diameter of the bottom bracket 33.5 ± 2 mm;
2. The 250W, 350W and 500W BAFANG mid drive motors are 68mm, which is compatible with bottom bracket length 68mm-73mm (73mm installation accessories are included in motor kits);
3. The 750W BAFANG mid drive motors are 68mm or 100mm optional, which is respectively compatible with bottom bracket length 68mm-73mm or 90-100mm (If you need washer, you could leave a note in orders or contact us);
4. The 1000W BAFANG mid drive motors are 68mm, 100mm or 120mm optional, which is respectively compatible with bottom bracket length 68mm-73mm, 90mm-100mm or 110mm-120mm (If you need washer, you could leave a note in orders or contact us).
DISPLAYS
Perfectly designed to bring you all the key information at a glance. Bafang displays employ the latest technologies in an easy-to-use package, with exceptional connectivity that keeps the information flowing through any ride.
Covering all kinds of setup, Bafang is an ideal companion no matter your style, from eMTB to eCity, and with Bluetooth and USB connection options, you can sync up your devices for a seamless experience.
How to choose a chainring for ebike conversion ?
BRAKESYSTEMFor You To Choose
The brake levers we sent default is with power cutting off funtion . We provide you some tips to choose the suitable brake system option .
If your bike brake system it is mechanical disc brakes , rim v brake , you could choose the brake lever option .
if your bike brake system it is thumb shifter are integrated , it is hydraulic dis brake or you want to keep your own brake lever prefer You could choose the brake sensors with your BAFANG mid drive kit .

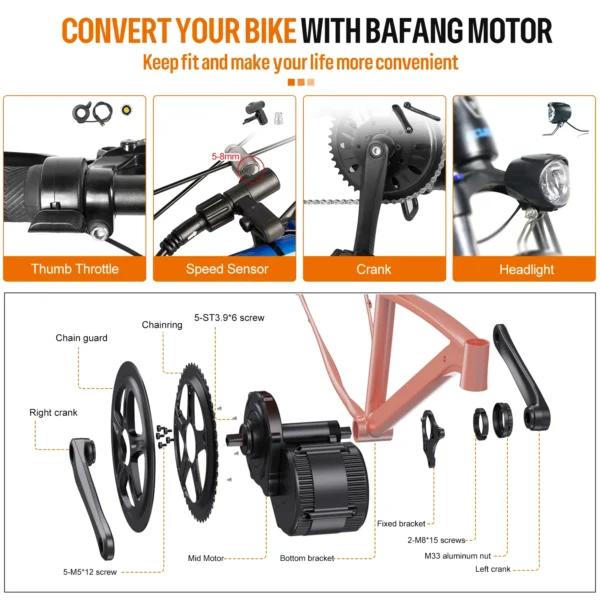

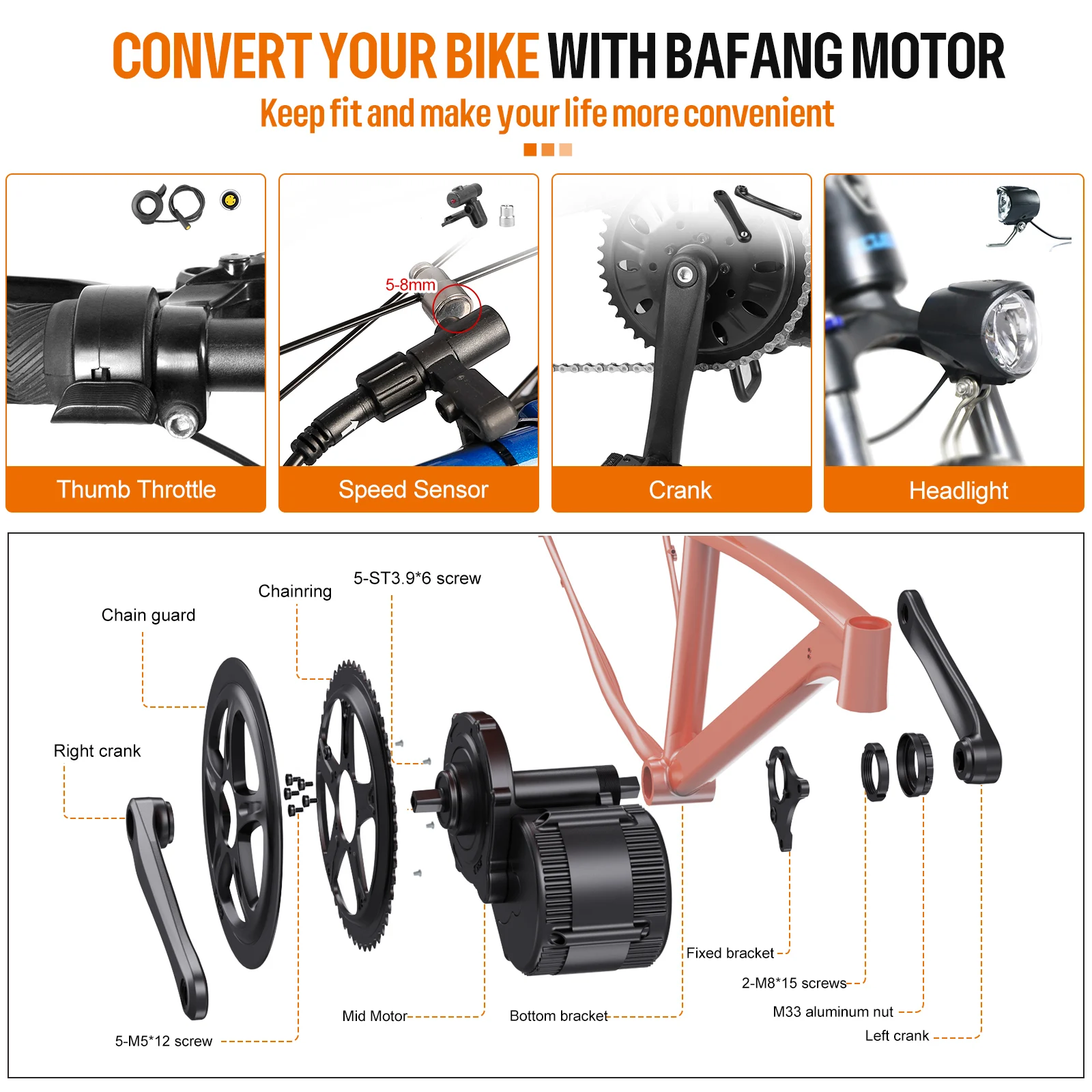

EASYINSTALLATION
It is quite easy to convert your bike to an electric bike , please feel free to contact us for detailed installation instruction and video . With integrated controller , the speed sensored BBS02 motor has great performance but low noise. High efficiency and low consumption , nobody can resist this excellent motor

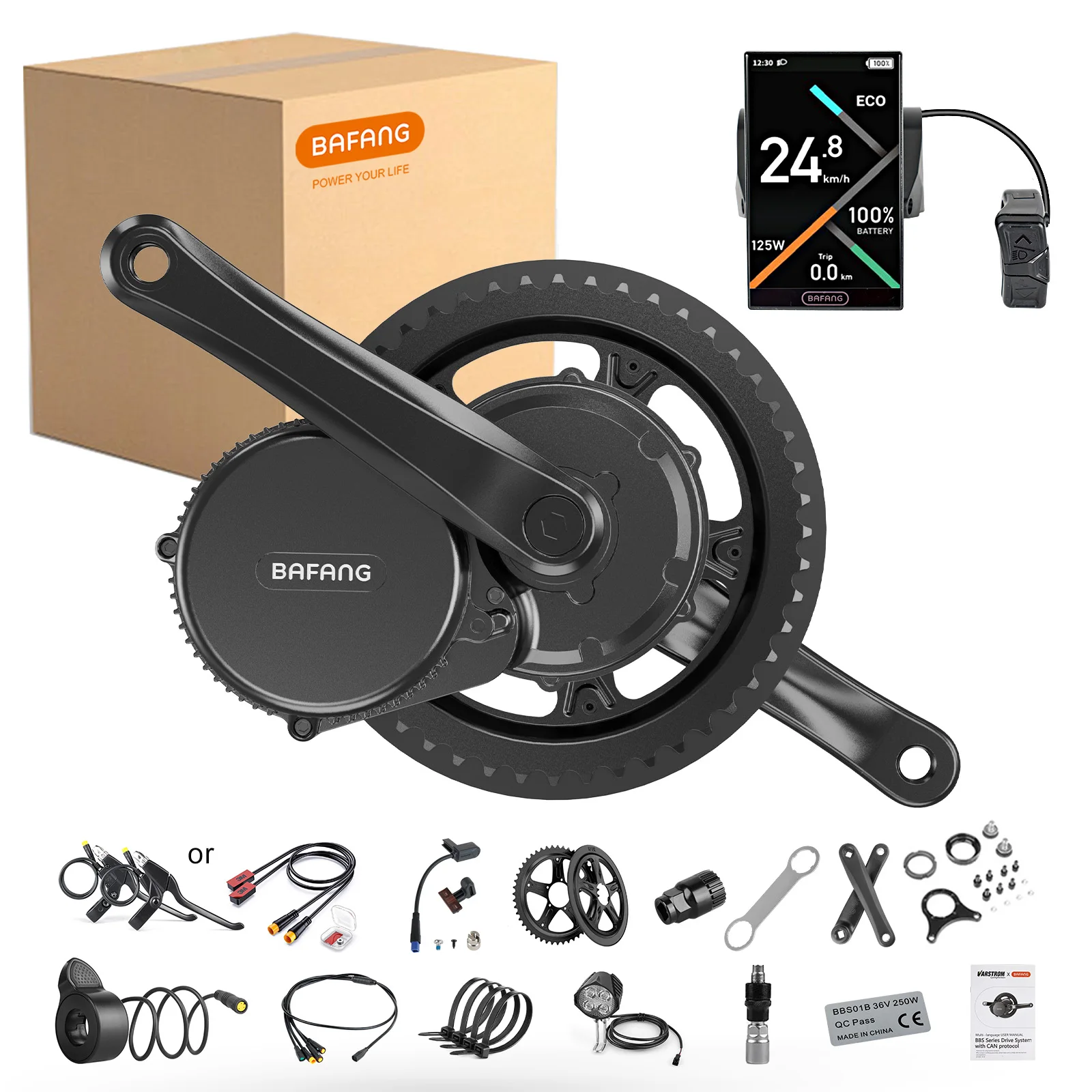

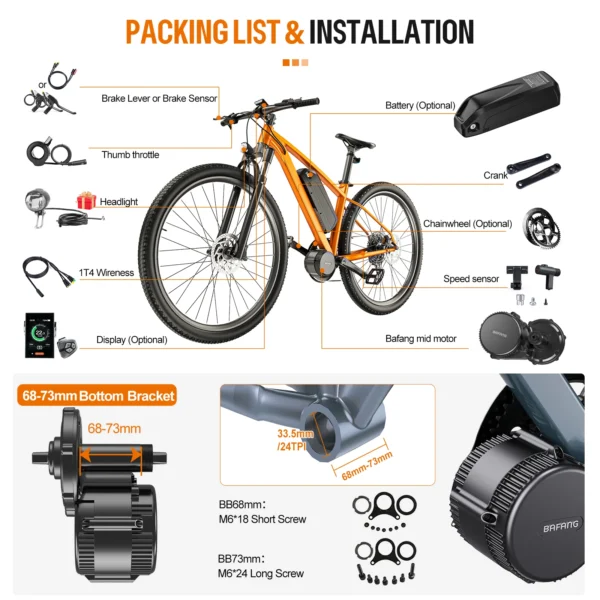

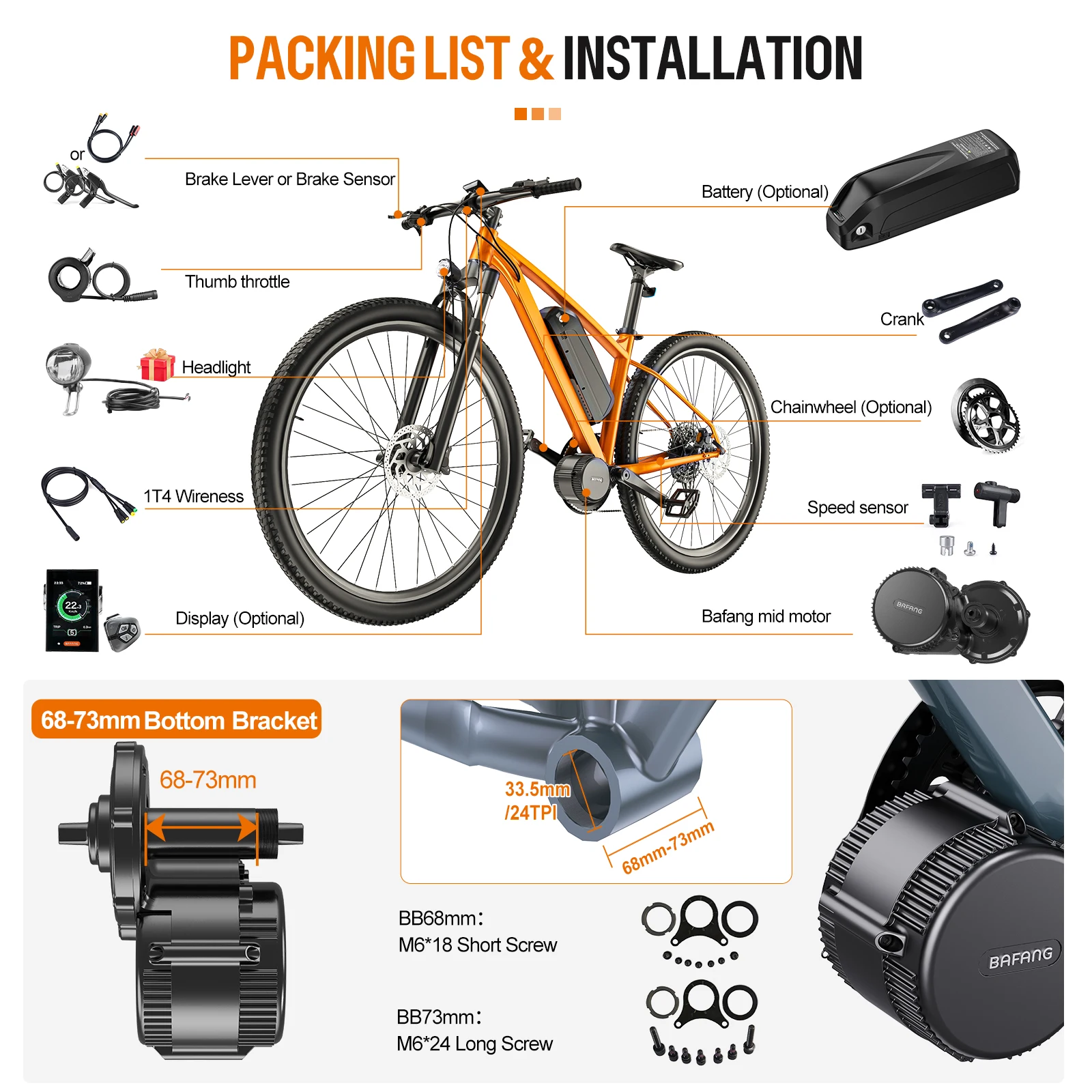

PackingList:
1 PC Bafang Mid Drive Motor
1 PC Chainwheel (Optional)
1 Pair Brake Lever or Brake Sensor (Optional)
1 PC Display (Optional)
1 Pair Crank
1 Set Thumb Throttle
1 Set Speed Sensor
1 PC 4 in 1 Cable
1 Set Accessories
FreeGifts:
1 PC 6V Front Light
1 PC Install Tool Wrench
1 PC Crank Remove Tool
1 PC XT60 Port Motor Battery Connector Cable
1 Set Install Accessories for 73MM Bottom Bracket
4 PCS 36V 250W Stickers (Only for 350W/500W/750W/1000W motor kits)
1 Set Cable Ties
1 PC User Manual
1 Pair White Gloves
About BAFANG
Bafang, one of the leading manufacturers of e-mobility components and complete e-drive systems, has been developing solutions for electric vehicles since 2003. The company focuses on all global e-mobility trends of the future: whether for individual e-bikes, e-scooters or for public bike-sharing schemes.The head office, development and manufacturing center is based in Suzhou, near Shanghai. Bafang has Sales and Service Centers in the Netherlands, in the USA, in Germany, in France, in Italy , in Denmark and in Taiwan, China. The newly opened factory in Poland will focus on production of mid motors systems for the European markets.
Having cooperated with BAFANG for lots of years, Greenergy ,BAFANG Official Authorized Agent Seller in Aliexpress ,is a professional store specializing in BAFANG mid drive kit and Electric bike. Greenergy Devotes to provide high-quality products for customers.
GLOBAL WAREHOUSE& SERVICE
We have France /Poland /Germany /Spain /Italy warehouse or Repaired Point , you can expect to receive your packges in about 2-7 days.. ALL products owns one-year warranty & 24-hour customer service. We have professional techs in the EU that can give you technical support and help you fix the problems
