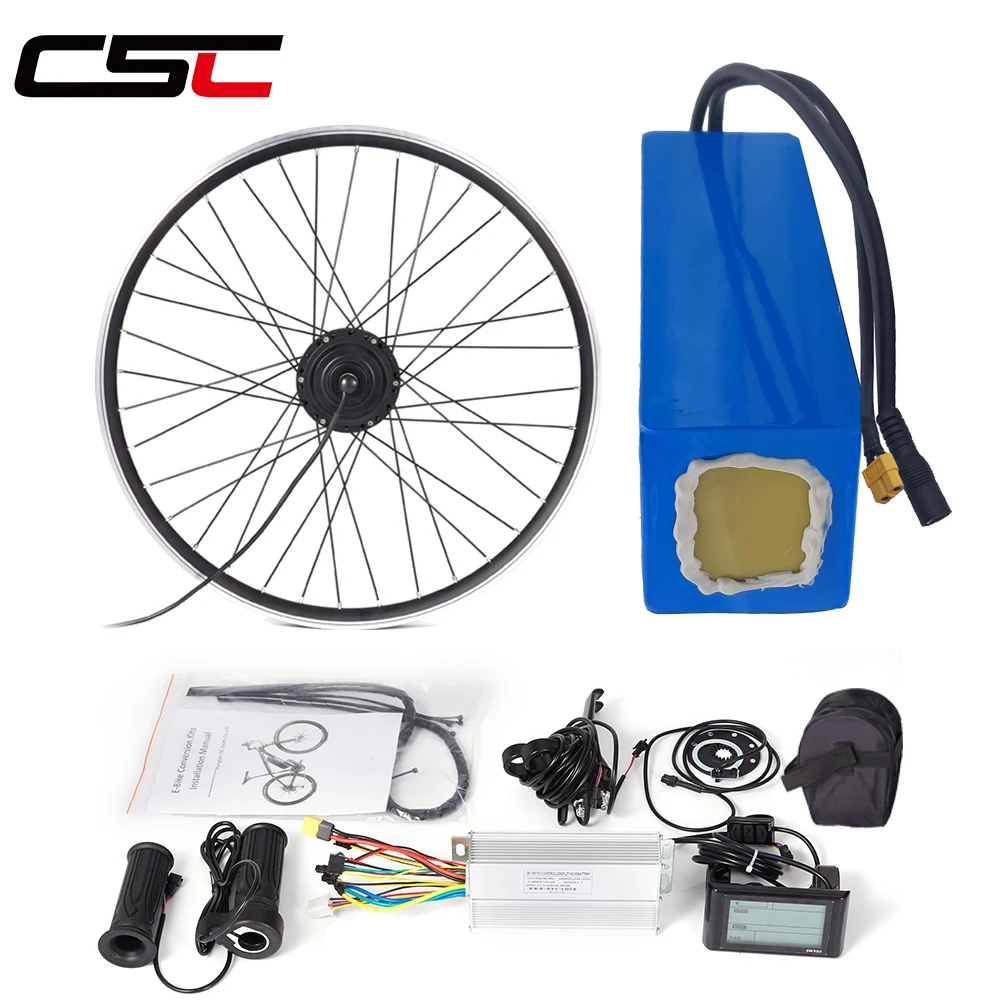

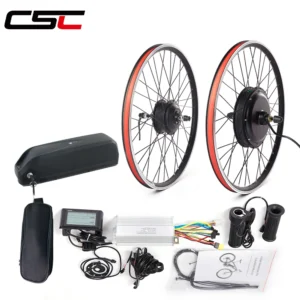

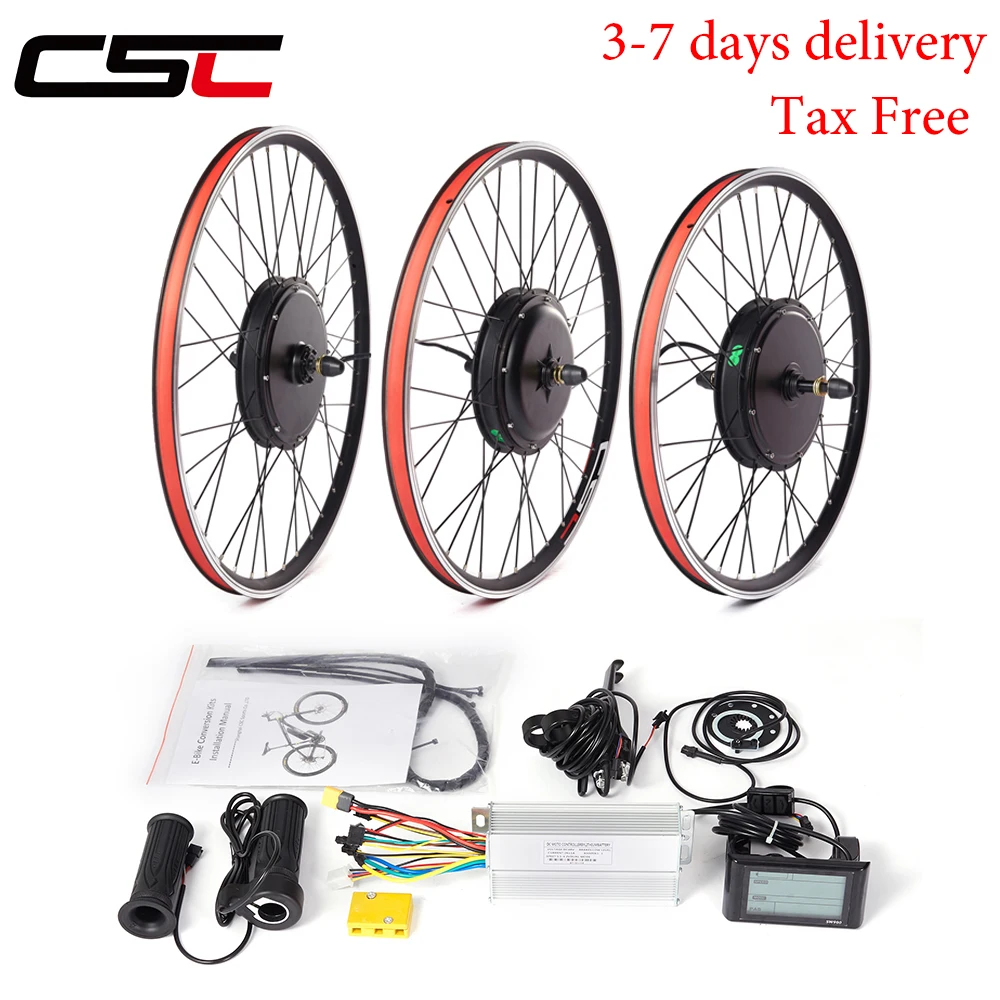

CSC e-bike Conversion Kit and 36V 10.4AH battery Front Rear Wheel motor 36V 250W 350W 500W MTX rim FOR electric bike

If you choose CSC rim kit

Noted:Conversion Kit not include , tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
If you choose CSC rim kit
1 * battery and charger (If you choose "No Battery", the battery and charger are not included)
1 * Rear motor wheel

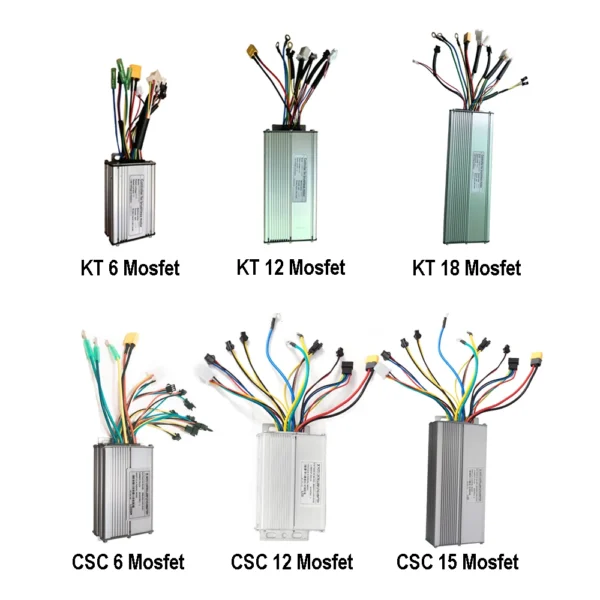

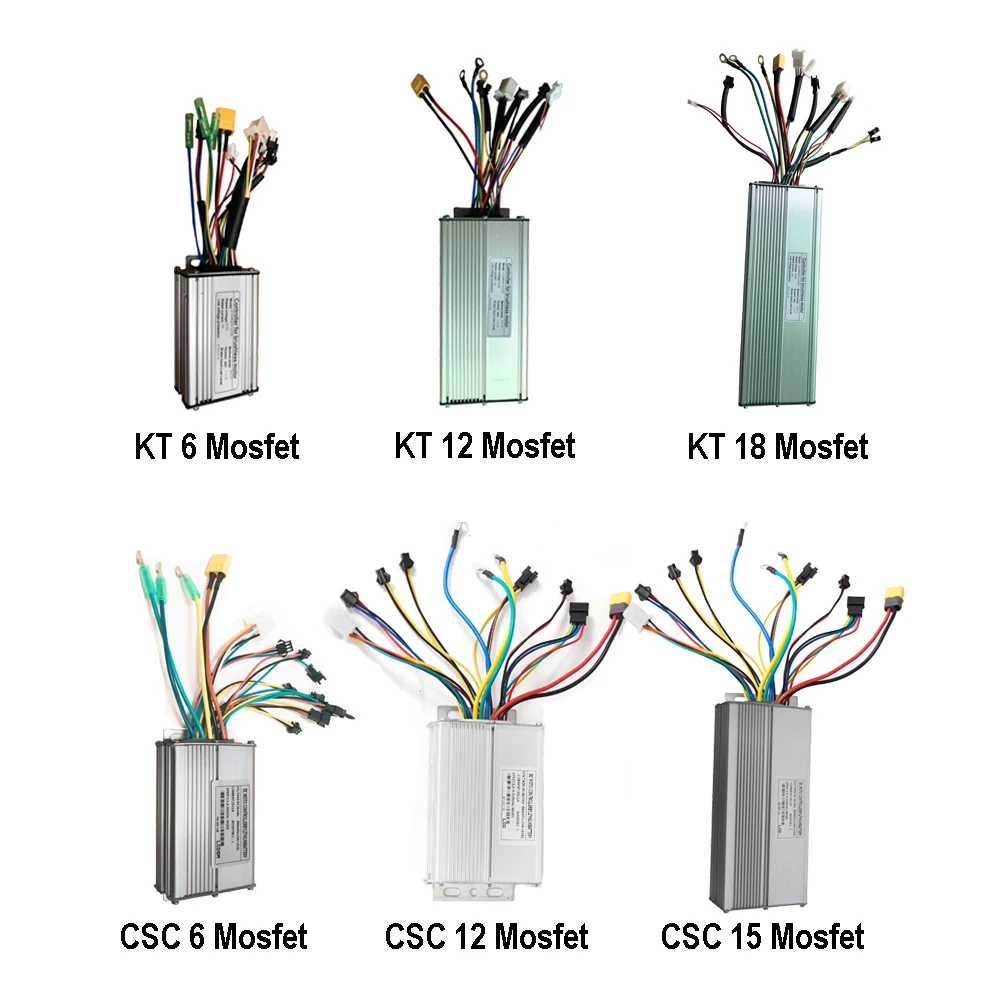

1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 or sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)

If you choose MTX rim kit

Noted:Conversion Kit not include Battery, ( If you need a Battery, Please contact us for an additional fee )
If you choose MTX rim kit
1 * battery and charger (If you choose "No Battery", the battery and charger are not included)
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Wuxing Power cut-off Brake lever
1 * Display LCD3
1 * 8 Magnet Pedal Assistant Sensor
1 set * Half Twist Throttle

36V Motor CSC Rim

48V Motor CSC Rim

48V Motor MTX rim

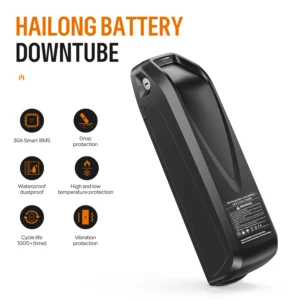

Battery

(If you choose "No Battery", the battery and charger are not included)
36V 10.4AH Battery
Connector for Controller: XT60
Nominal Voltage: 36V
Nominal Capacity: 10.4Ah
Composed Type: 10Series 4Paralles 10S4P
Cells: Powerful 18650 3.7V 2600mAh 5C Cells
BMS: 20 Amp continuous 400±10Amp maximum
Fit Motor Power : 36V 250W 350W 500W
Charge Current: 2A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 30V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 70*80*205mm
Battery Weight: 2.9kg
Cycle life: ≥80% capacity after 800 cycles.

48V 13AH Battery
Connector for Controller: XT60
Nominal Voltage: 48V
Nominal Capacity: 13Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 18650 3.7V 2600mAh 5C Cells
BMS: 30Amp continuous 60±10Amp maximum
Fit Motor Power : 48V, 500W,750W, 1000W
Charge Current: 2A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 70*95*270mm
Battery Weight: 4.4kg
Cycle life: ≥80% capacity after 800 cycles.

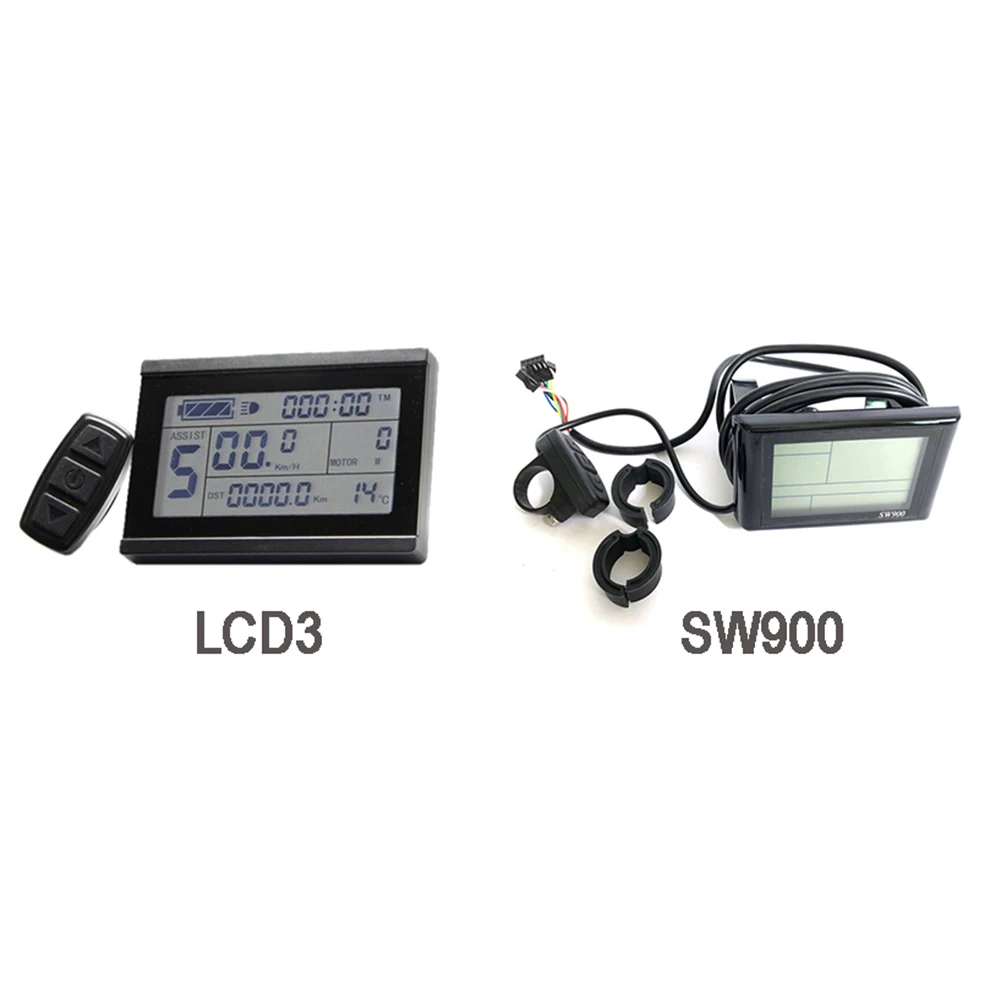

Display

LCD3 display Product Features
Display Function:
it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;
Control/Setting Function:
comes with Brake Regeneration Anti-Charge ,Data display，Intelligent power，Stalls setting， Parameter setting，Data view， Vehicle boosting，Cruise and constant speed，Night driving，Password setting，Automatically prompt，

Display

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Power cut-off brake leaver

LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle
