Tongsheng TSDZ8 750W Mid Drive Motor Kit - 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power
Tongsheng TSDZ8 750W Mid Drive Motor Kit - 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power - Image 2
Tongsheng TSDZ8 750W Mid Drive Motor Kit - 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power - Image 3
Tongsheng TSDZ8 750W Mid Drive Motor Kit - 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power - Image 4
Tongsheng TSDZ8 750W Mid Drive Motor Kit - 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power - Image 5

Tongsheng TSDZ8 750W Mid Drive Motor Kit – 48V Torque Sensor Ebike Conversion Kit with EKD01 Display, Upgraded 1056W Peak Power

Availability:

Noliktavā 9999 prece/-es

1 396,80 €–1 825,90 €

  • Size: 700c
  • Mounting Position: Side Hung Motor
  • Design: Brushless
  • Wattage: 501 – 1000w
  • Voltage: 48V
  • Brand Name: TONGSHENG
  • Origin: Mainland China
  • Power: 750W
  • Voltage: 48V
  • Motor Type: TSDZ2B
  • Chain Wheel: 44T
  • limited current: 15A
  • Max speed without limited: 37km/h
  • Motor weight: 3.6kg
  • IP Code: IP54
  • Max Torque: 120Nm
  • TSDZ8: 750W
  • Battery Version: Downtube / Rear Rack
  • 48V 13Ah Hailong: Domestic 18650
  • 48V 17.5Ah Hailong: S*msung/L*G /P*nasonic Cells
  • 48V19.2Ah/20Ah G80 Max: 21700 S*msung Cells
  • 52V20Ah YINGWU: S*msung Cells
  • Cycle Life: 1000 times
  • Charing Current: 2A – 4A
  • Charge Temperature: 0-45℃
  • Discharge Temperature: -15-65℃
  • Way of Charge: CC/CV
  • Warranty: 1 Year,2 Years
  • Maintain Point: France / Poland / Spain /UK
  • Delivery Time: 1 – 7 Days

About this item

750 Motor with 1200W Peak Power: The TONGSHENG TSDZ8 motor provides a robust 750W nominal power output, with the ability to peak at 1200W . This allows for strong assistance on varied terrains, including uphill sections, making it suitable for both mountain and road bikes


Torque Sensor Technology: One of the standout features of this TSDZ8 kit is the inclusion of a torque sensor. This sensor detects the rider's pedaling effort and adjusts the motor's assistance accordingly. The result is a smoother, more intuitive ride that feels more like traditional cycling, where the motor works in harmony with your own pedaling effort, especially on variable terrain


Mid-Drive Motor Configuration: The TONGSHENG TSDZ8 mid-drive motor is located at the bike’s bottom bracket, providing a more balanced weight distribution compared to hub motors. This configuration offers better handling, improved efficiency, and better performance on inclines, as it directly powers the bike's chain for enhanced gear shifting

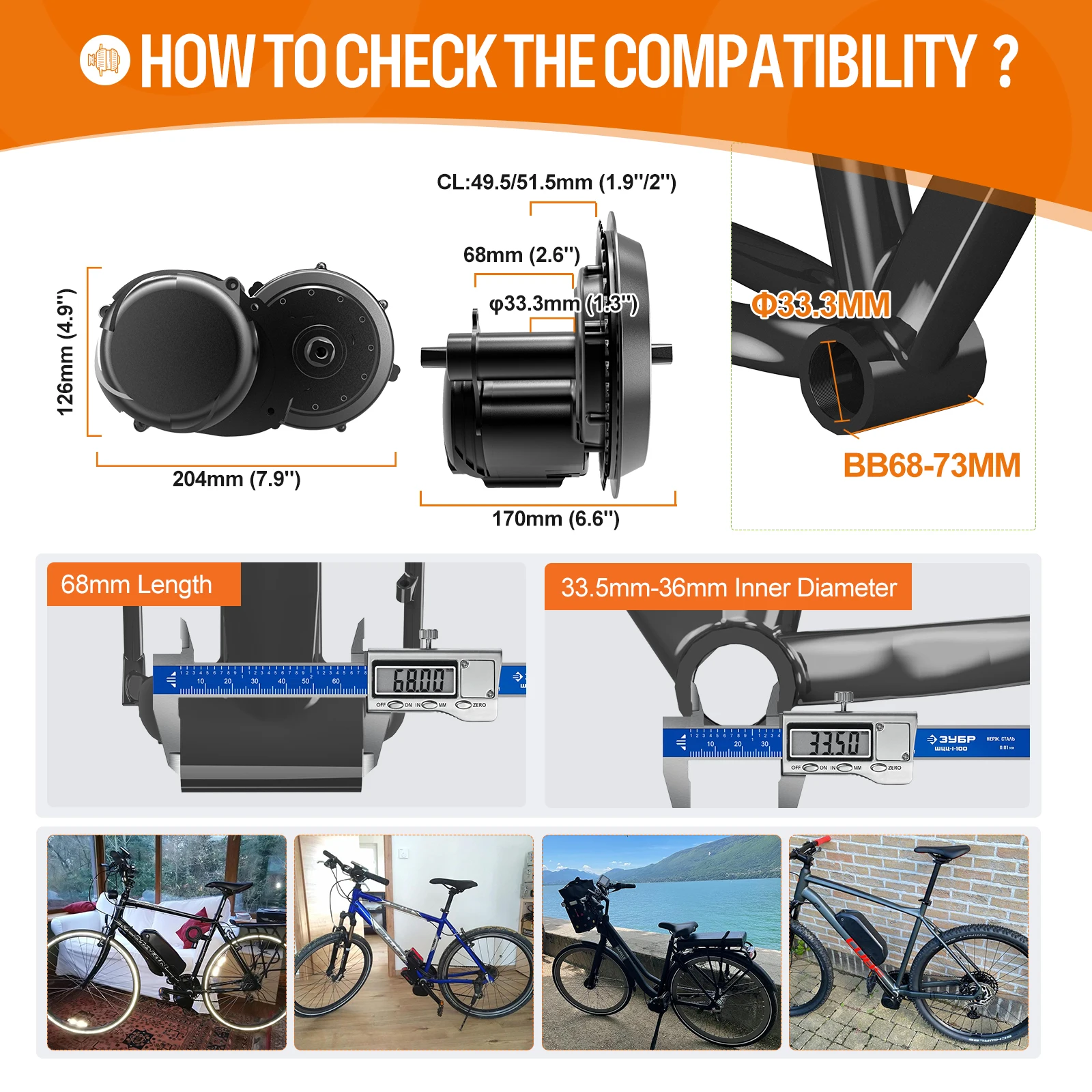

Universal Fit for 68-73mm Bottom Brackets: This kit is designed to Fits bottom bracket length 2.68in/2.87in (68mm/73mm) and inner diameter 1.34in/1.42in (34mm/36mm) This makes it a versatile option for many bike models, ensuring compatibility without the need for additional modifications


Durability and Quality Build: TONGSHENG TSDZ8 48V750W kit is built to withstand tough riding conditions, whether it’s a rough mountain trail or a daily city commute. The motor and components are designed for long-lasting performance, providing reliable power and assistance through many cycling seasons.It offers an excellent balance between power, efficiency, and ease of use, making it a solid choice for a wide range of cyclists

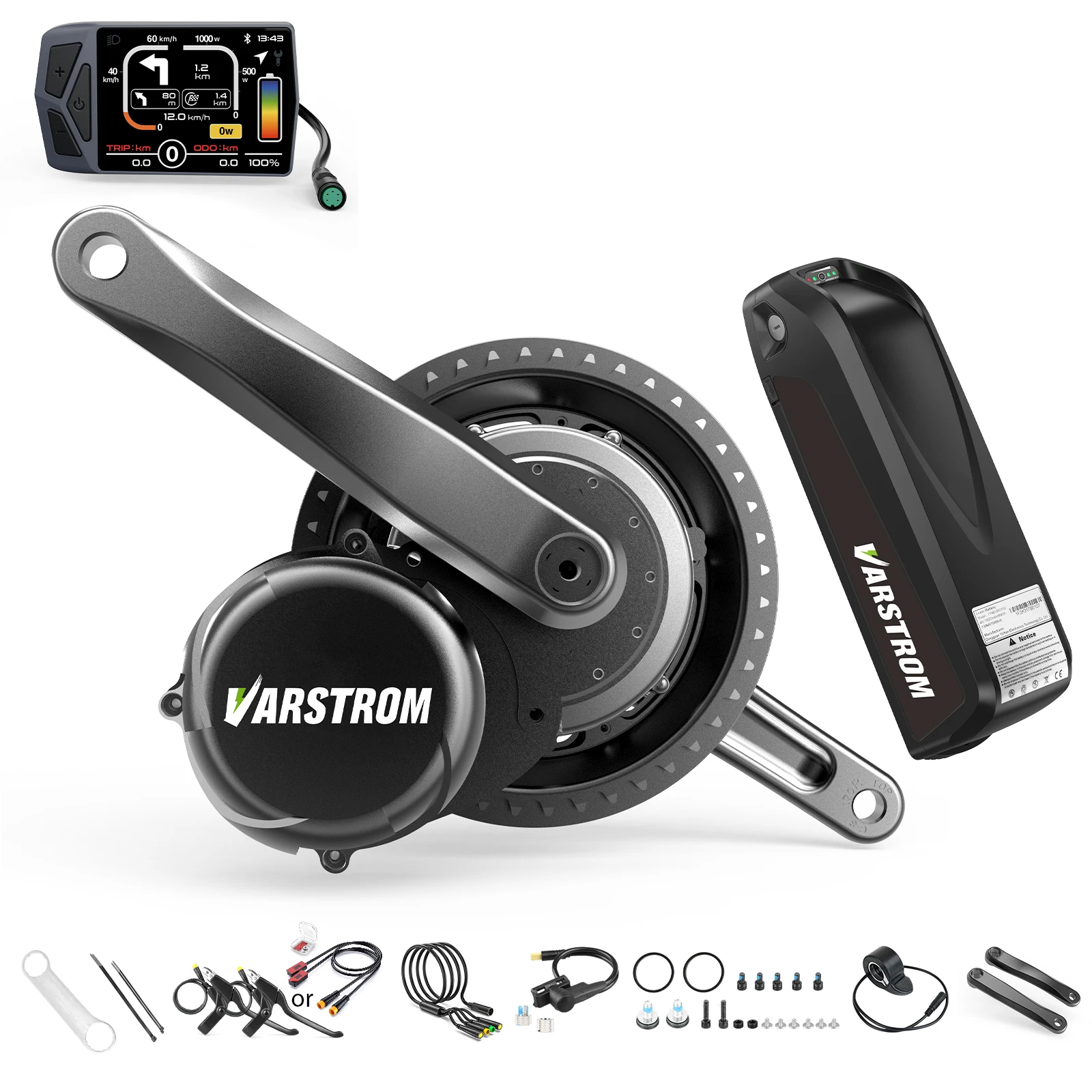

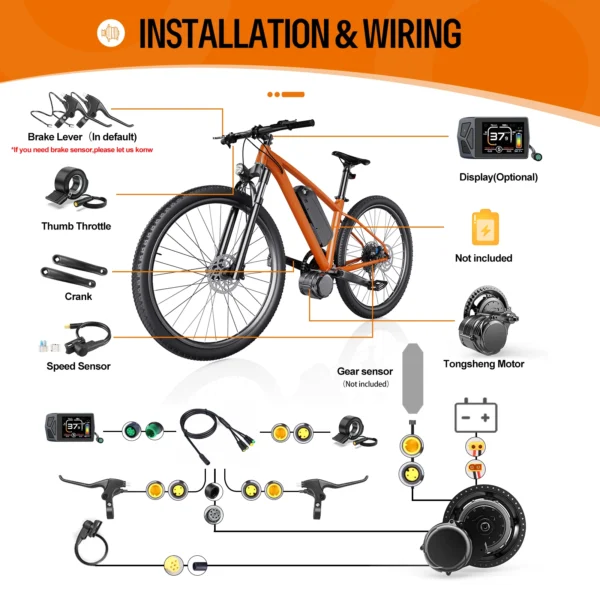

Packaging included:

1 PCS * mid-drive motor
1 PAIR * Power-off brake lever or Brake sensor
1 PCS * Thumb Throttle
1 PCS * Display with Controller
1 PCS * Power connection cable
1 PCS * Installation Tools
1 PAIR * Crank-arm x1 Pair
1 PCS * Speed detective sensor
1 PCS * Battery (Option)
1 PCS * Battery Charger (Option)
