Bafang 750W Mid Drive Motor Electric Bicycle Conversion Kit M315 BBS02B BBS02 Ebike Engine 48V 52V 20Ah 17.5Ah Hailong Battery
Pieejamība:
Noliktavā 144 prece/-es
580,29 €–1 141,85 €
- Bafang modelis: M315
- Motor Type: Sānkarināts motors
- Jauda: > 400w
- Dizains: Bezsuku
- Spriegums: 48 V
- Zīmola nosaukums: BAFANG
- Izcelsme: Kontinentālā Ķīna
- Protokols: VAR
- Bafang modelis: G340.750
- Jauda: 750W
- Spriegums: 48 V
- Kontroliera strāva: 25A
- No Load Speed(RPM): 140-160
- Ielādes ātrums (apgr./min.): 120-135
- MAKSIMĀLAIS griezes moments: 120 N.m
- Maksimālais ātrums: 50-55km/h
- Samazināšanas koeficients: 1 : 21.9
- Waterproof Grade: IPX5
- Kronšteina apakšējās daļas garums: 68mm-73mm/100MM
- Motor Operation Temperature: -20℃-45℃
- Charger: 2 – 4 A
- Peak current: 60A
- Charge voltage: 54.6V
- Discharge cut off voltage: 36.4V
- Cycle Life: 1000 times
- Charge Temperature: 0-45℃
- Discharge Temperature: -15-65℃
- 48V 13Ah Hailong Battery: Grade A Cells
- 48V 17.5Ah Hailong Battery: S*msung / L*G* / P*nasonic
- 48V 19.2Ah Hailong MAX Battery: S*msung / L*G*
- 48V 20Ah Hailong MAX Battery: S*msung / L*G
- 52V20Ah Yingwu Battery: L-G* 18650 Cells
- Saglabāt punktu: France / Germany / Spain / Italy/ Spain
- Piegādes laiks: 1 -7 Day Delivery

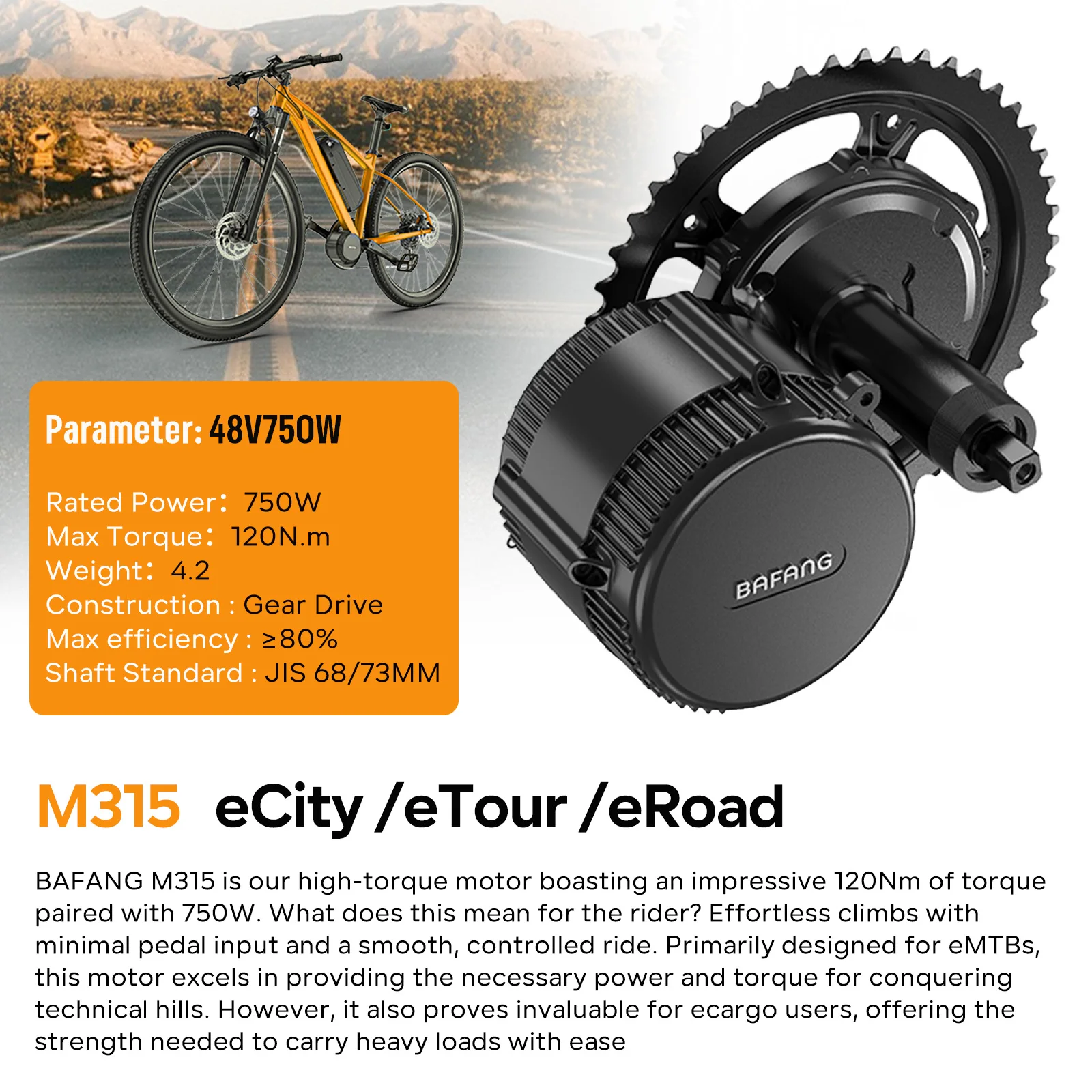

BAFANG M315 750W MID-DRIVE SYSTEMS
【Universal Compatible】Bafang BBS02B Mid drive kit is compatiable with mountain bike,road bike and so on. This kit is designed to fit a standard 68-73mm (length) and 34-36mm (internal diameter) bottom bracket.
【Powerful and Reliable Motor】The bafang 750W motor max torque up to 100-120 N.m. This mid speed sensor motor will easily climb stairs, go well over 45KM/H on the flats and much, much faster down hills. provide more powerful when you riding on the road or climb the mountains. It's a good gift for Wife/Husband and a special gift for the elder people
【Easy Installation & Three Riding Mode】 This mid drive motor easily convert your pedal bike into a electric bike, we will offer a installation video. Three riding Mode (E-bike & Pedal Assisted bicycle& Pedal Bike) for you to choose, you can choose the E-bike to enjoy a long time travel, and also exercise
【Complete Accessories】 Comes with most accessories:Mid-drive motor BBS02B 48V 750W,brake lever,thumb throttle,chainring wheel,crank,LCD display,speed sensor and magnets,1T4 wire,nuts, battery and charger—optional, ebike head light(Free gift)
PLATSSADERĪBA
BAFANG vidējās piedziņas komplekts ir saderīgs ar 68–73 mm (garums) un 34–36 mm (iekšējais diametrs) apakšējo gultni. Vidējās piedziņas motoru var uzstādīt kalnu velosipēdam, šosejas velosipēdam un ikdienas velosipēdam, taču tas nav īpaši ieteicams velosipēdiem ar oglekļa šķiedras rāmi vai pedāļu bremzēm. Jaudīgais 8fun motors padara jūsu riteņbraukšanas braucienu aizraujošāku. Gaidiet ar nepacietību sava eBike pārveidojuma apskati, izbaudiet braukšanas prieku jau tagad.

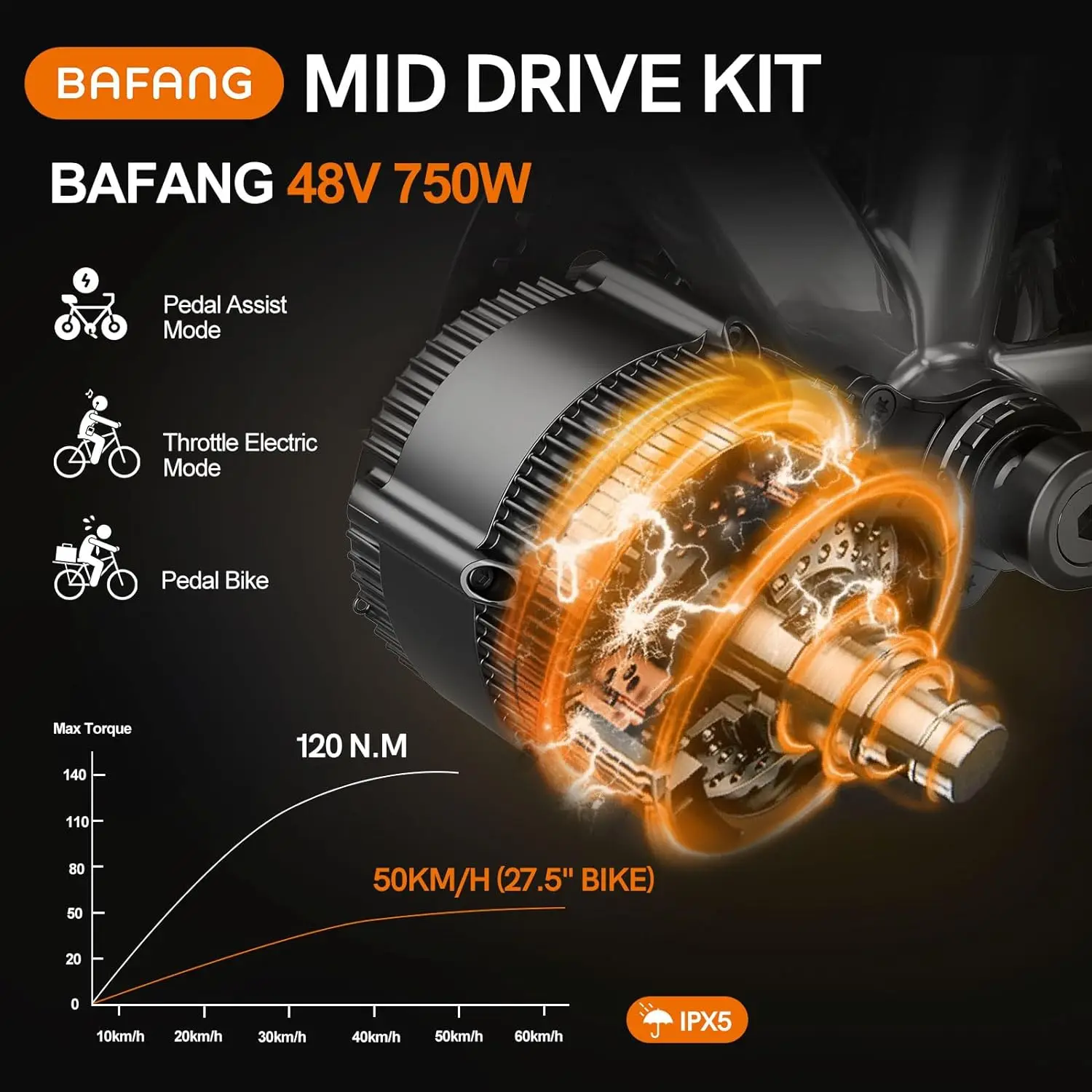

POWERFUL MOTOR & 3 CYCLING MODES
With the max torque 120 Nm , the 750W BAFANG electric bike conversion kit has excellent performance on climbing . Ride at the fastest speed with smallest effort , take it to exercise and have fun . There are 3 cycling modes for the mid-drive motor :E-bike , Pedal Assisting , Electric and Pedal Assisting . Various modes perfectly satisfy your different needs
EASY INSTALLATION & SAFETY
Easy to convert your bike to an electric bike in short time. Feel free to contact us for the manual & installation video. Featured with integrated controller and torque sensor , the motor is safer and stronger. High efficiency and low consumption , nobody can resist this excellent motor

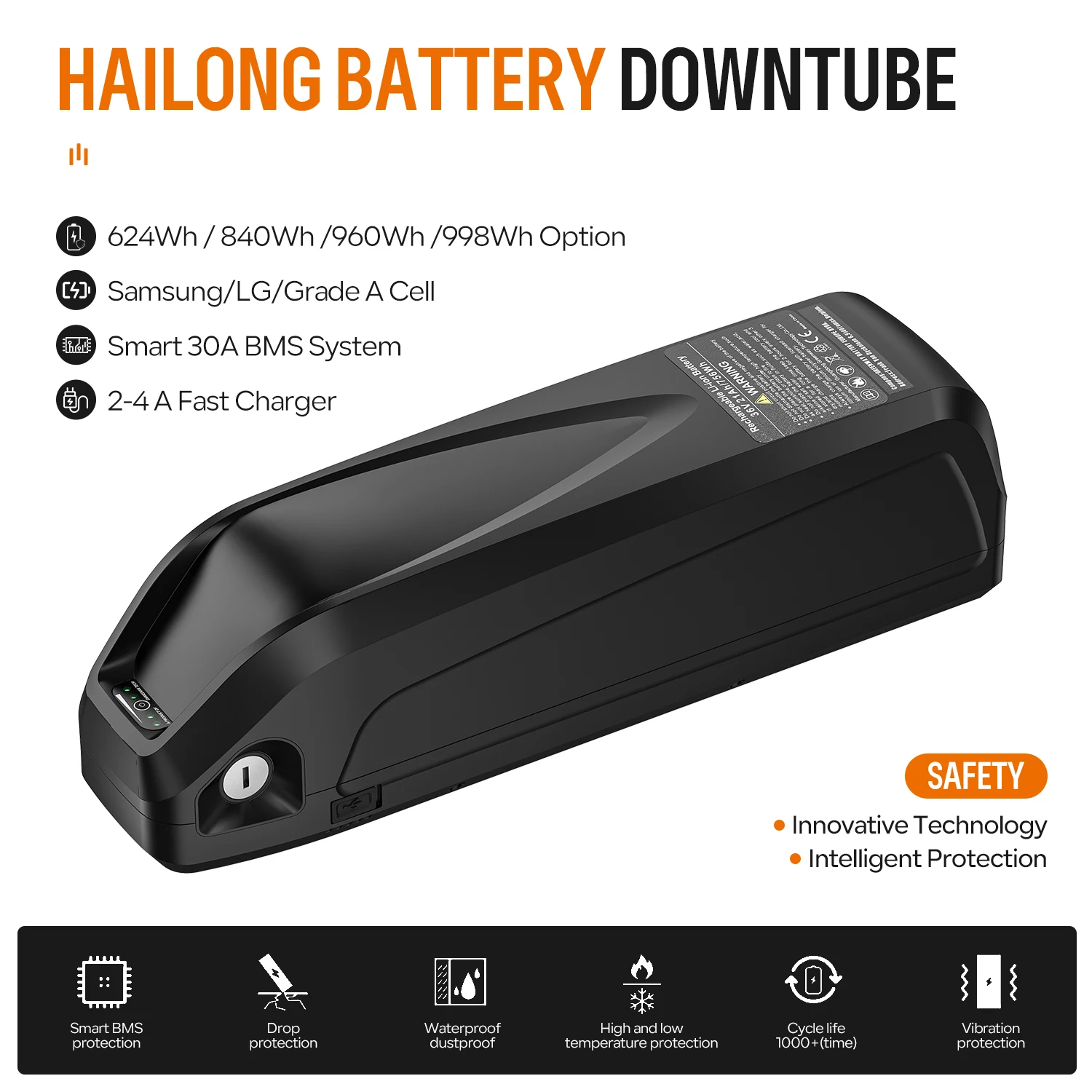

AKUMULATORS OPTION
DOWNTUBE / REAR RACK
Forma seko funkcijai. Gan eleganti, gan praktiski, daļēji integrēti akumulatori padara iespējamus vieglākus rāmjus, vienlaikus nodrošinot ērtu lietošanu, uzlādi un uzglabāšanu. Apvienojot lielu jaudu un nelielu svaru, apakšējās caurules akumulatori piedāvā ērtu un uzticamu komplektu jebkura veida eBike un braucēja pieredzei.
Form follows function! In this case, the semi-integrated battery makes lighter frames possible – and also easier handling. you'll get a convenient package for any kind of eBike and long range ride experience.

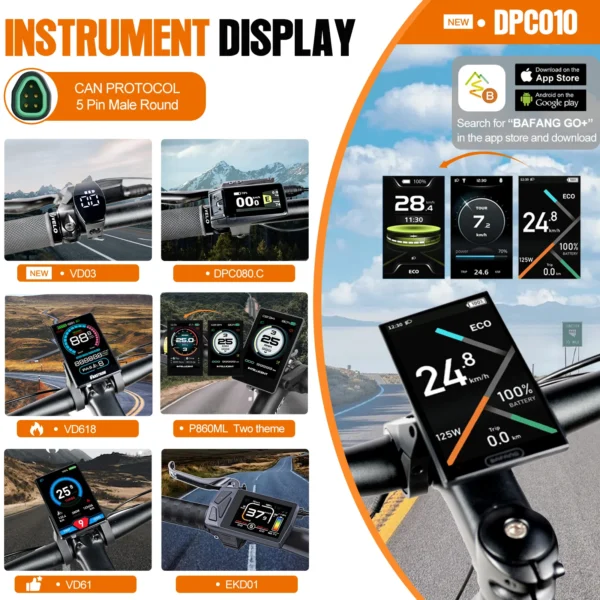

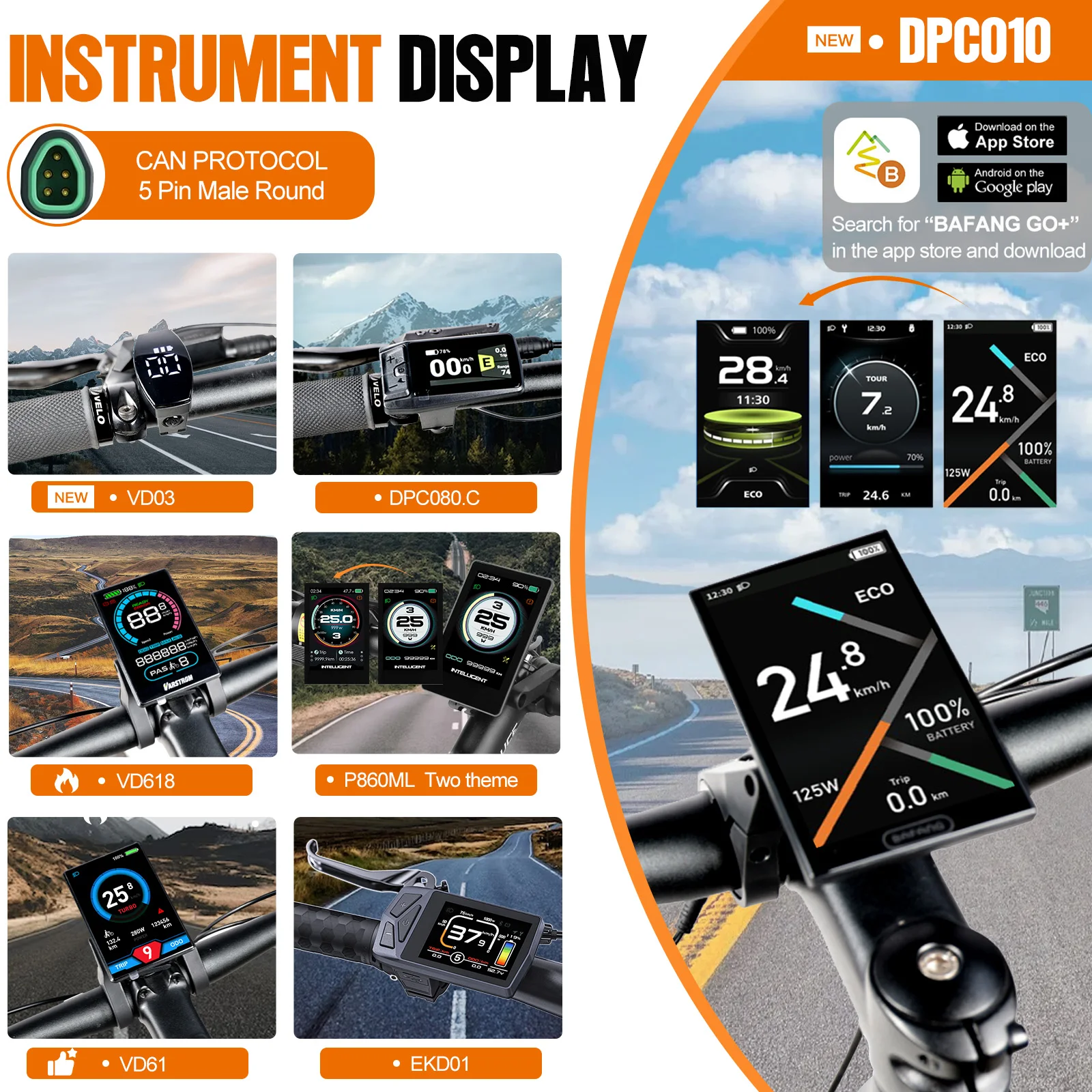

DISPLAYS OPTION
All the display have the basic function in riding . The main differences of the ebike displays are the interface , screen and holder size , specific function (check the display image below)
Personalize your CAN protocol display selection: Choose from a range of advanced displays to customize your e-bike experience: optional VD03 display, EKD01 display, VD618 display, VD61 display and BAFANG's DPC010 and DPC080 displays (BAFANG's displays can modify motor parameters on the display or BAFANG GO+ APP, no USB programming cable required). Each display offers unique features, ensuring you find the best display for your ride
How to choose the Sprocket ?
Please note that the larger the sprocket and the smaller the flywheel, the faster the speed but the more effort it will take to drive on flat roads. The smaller the sprocket and the larger the flywheel, the less effort is needed for climbing, but the speed is slow. We provide 36T 42T 44T 46T 48T 52T for you to choose . It could free change for you ( except 42T ) if the order page have no the chainwheel option you need .You could leave us message or remark it on order mark.

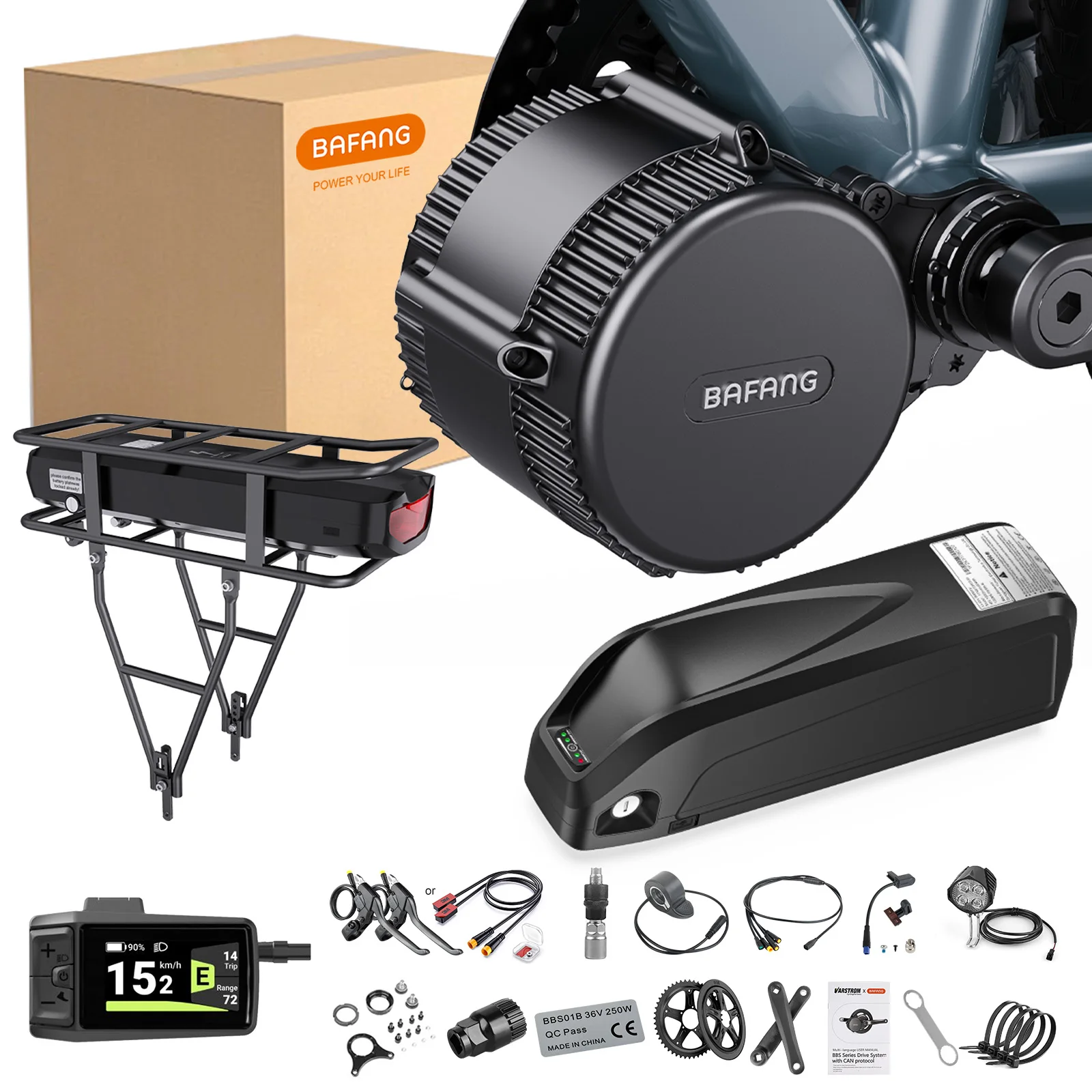

What will i receive in package ?

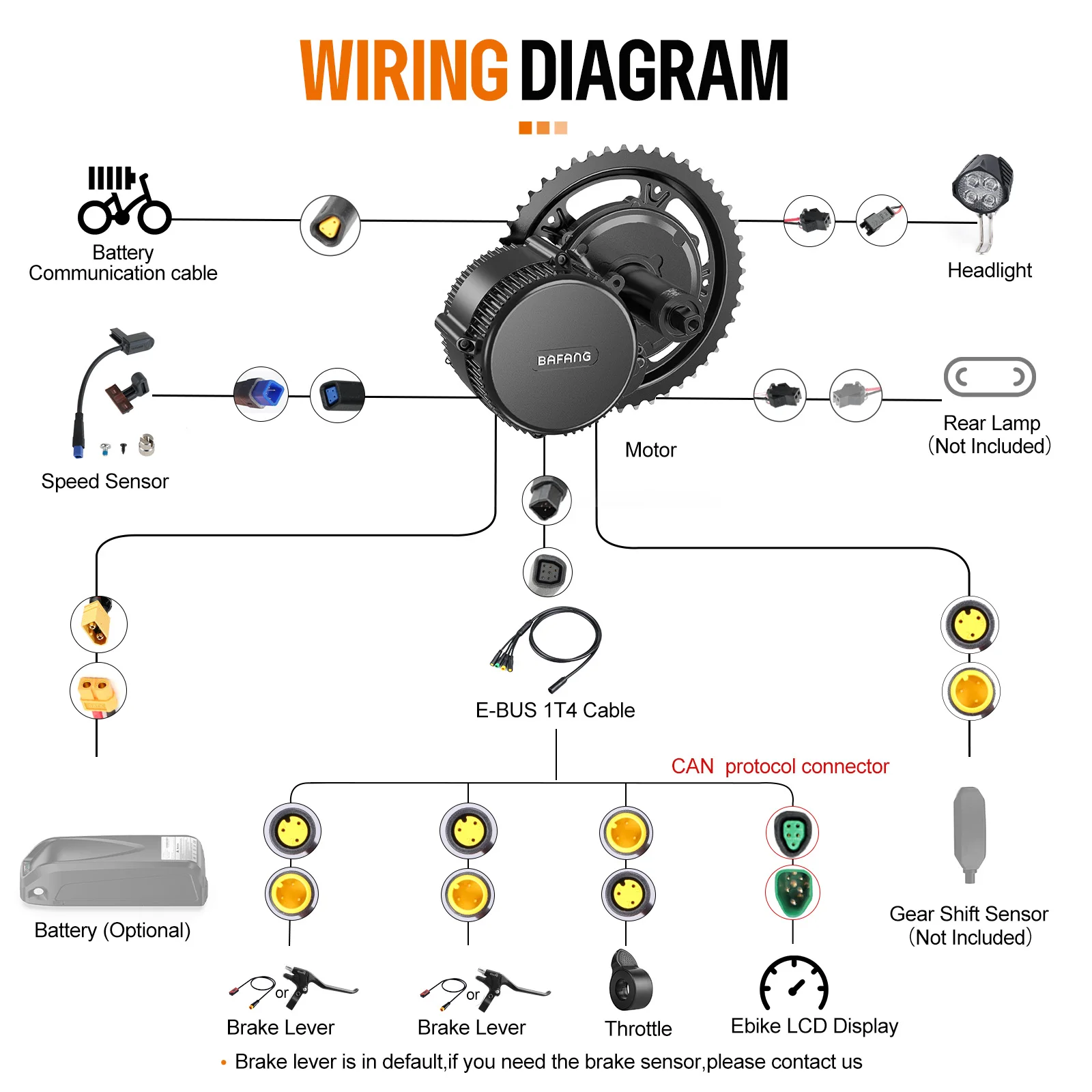

A 750W motor , a battery (if you order it together), a display , a chainring with guard ( 36T chainring is without guard ), speed sensor , brake levers or brake sensors , cranks , a 1T4 EB-BUS cable , a thumb throttle , lock nuts , basic installation tools , headlight , gloves . If there is a part missing in the box , please don't be worried. Just messagel us , we will help you figure it out.
Par mums BAFANG
Bafang, viens no vadošajiem e-mobilitātes komponentu un pilnīgu e-piedziņas sistēmu ražotājiem, kopš 2003. gada izstrādā risinājumus elektriskajiem transportlīdzekļiem. Uzņēmums koncentrējas uz visām globālajām e-mobilitātes nākotnes tendencēm: gan individuāliem e-velosipēdiem, gan e-skūteriem, gan publiskām velosipēdu koplietošanas shēmām. Galvenais birojs, izstrādes un ražošanas centrs atrodas Sudžou, netālu no Šanhajas. Bafang ir pārdošanas un servisa centri Nīderlandē, ASV, Vācijā, Francijā, Itālijā, Dānijā un Taivānā, Ķīnā. Jaunatvērtā rūpnīca Polijā koncentrēsies uz vidēja izmēra motoru sistēmu ražošanu Eiropas tirgiem.
Daudzus gadus sadarbojoties ar BAFANG, Greenergy, BAFANG oficiālais pilnvarotais pārdevējs Aliexpress, ir profesionāls veikals, kas specializējas BAFANG vidējas piedziņas komplektos un elektriskajos velosipēdos. Greenergy ir apņēmies nodrošināt klientiem augstas kvalitātes produktus.
GlobālsPakalpojums un noliktava
Mums ir noliktava Francijā/Polijā/Vācijā/Spānijā/Itālijā vai remonta punkts, jūs varat sagaidīt savu paku saņemšanu aptuveni 2–7 dienu laikā. VISIEM produktiem ir viena gada garantija un diennakts klientu apkalpošana. Mums ir profesionāli tehniķi ES, kas var sniegt jums tehnisko atbalstu un palīdzēt novērst problēmas.
