Electric bike Conversion Kit 36V 500W e-bike Front Rear 36V 250W 350W electric bicycle Kit hub motor 20in-29in Wheel

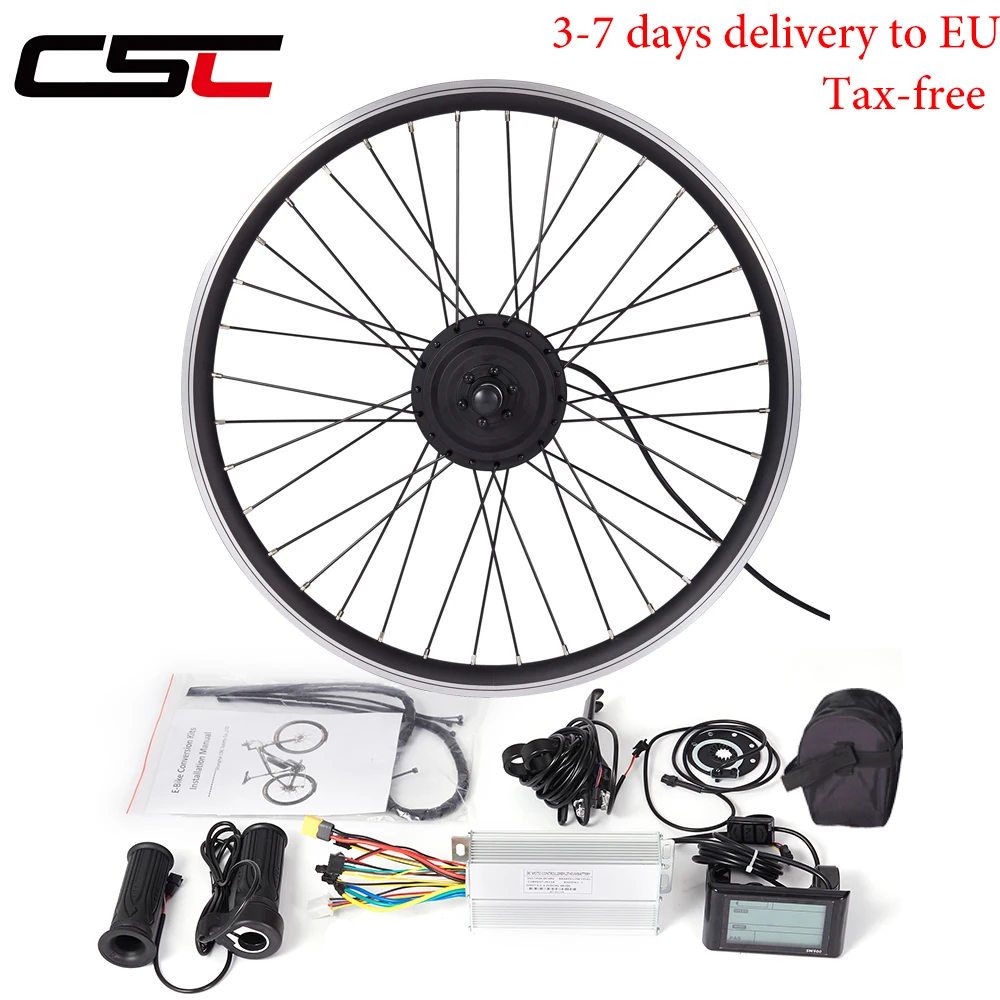

Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Front or Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display r sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

Motor Wheel

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

36V

48V

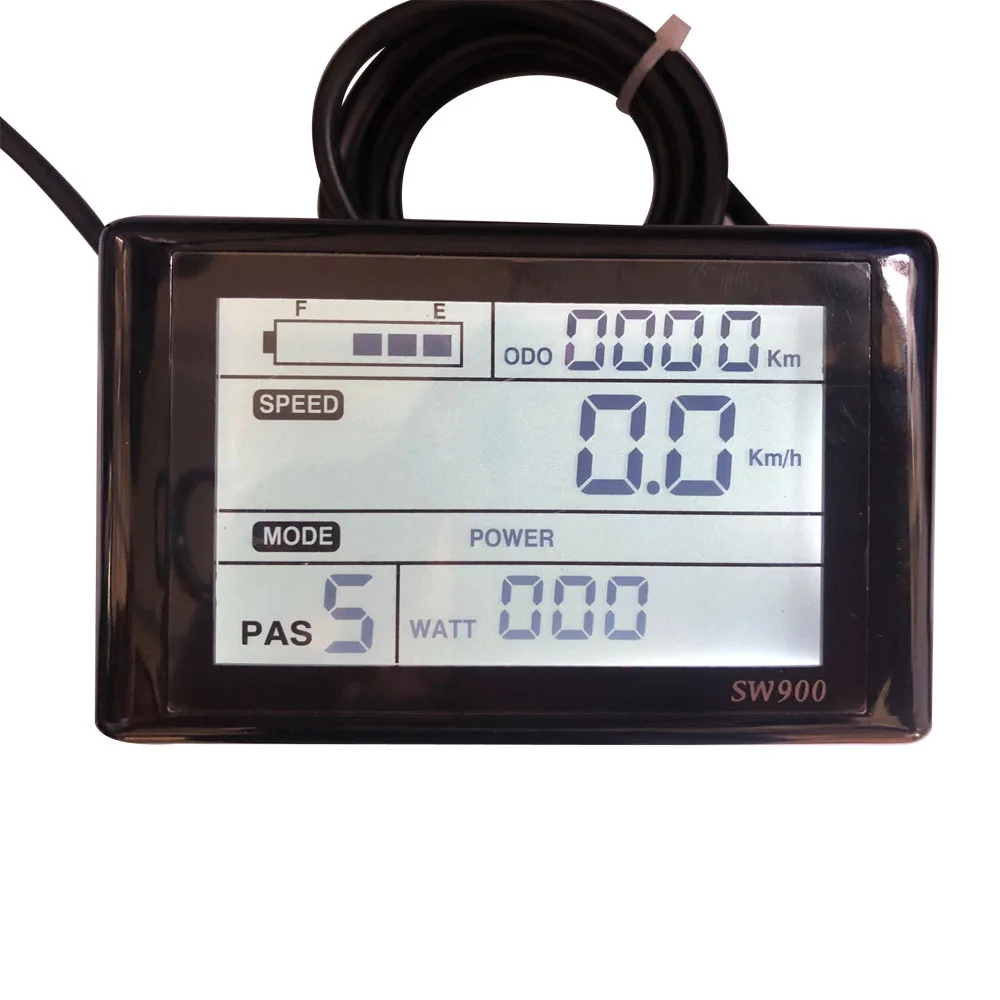

Display

SW900 display which comes with cruise Function

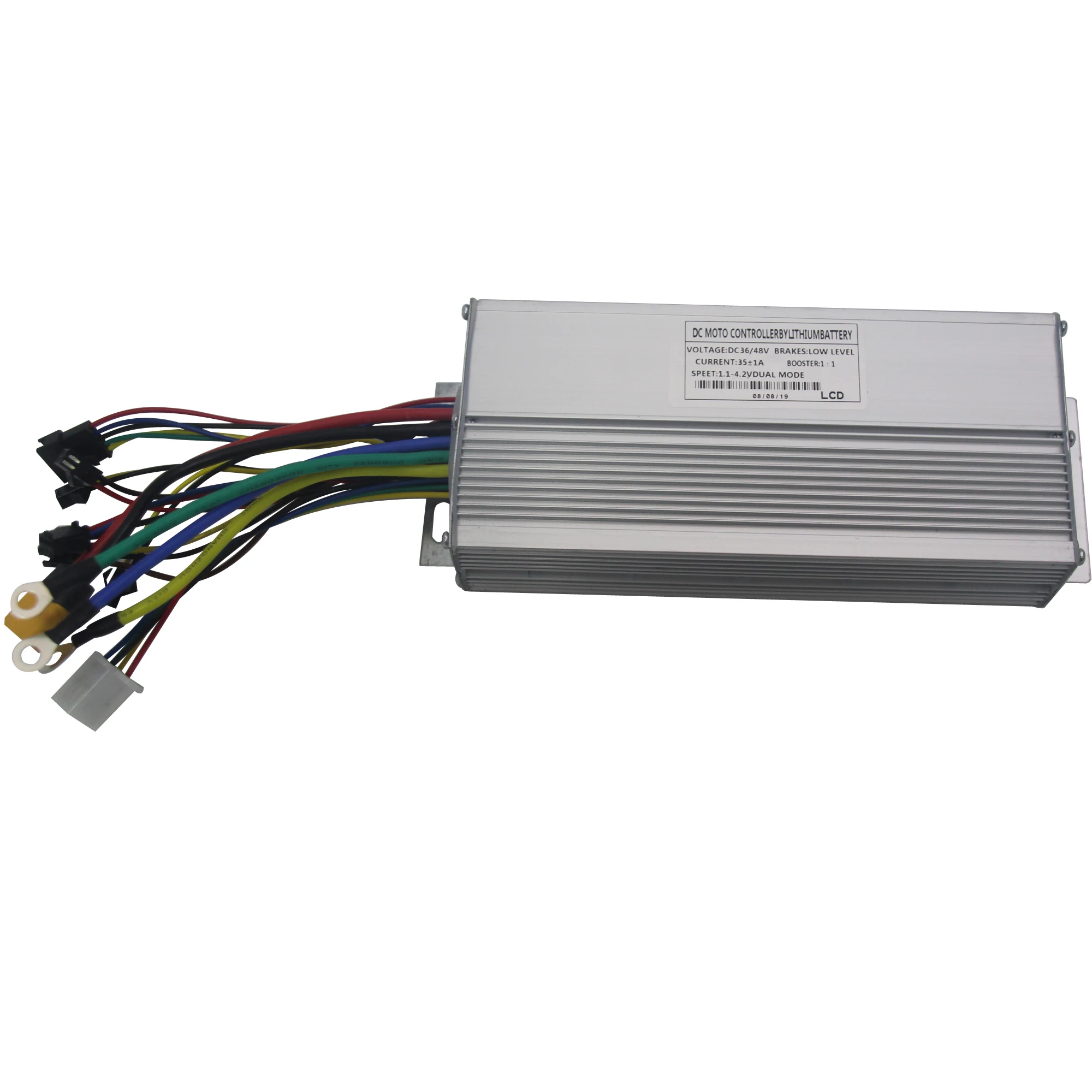

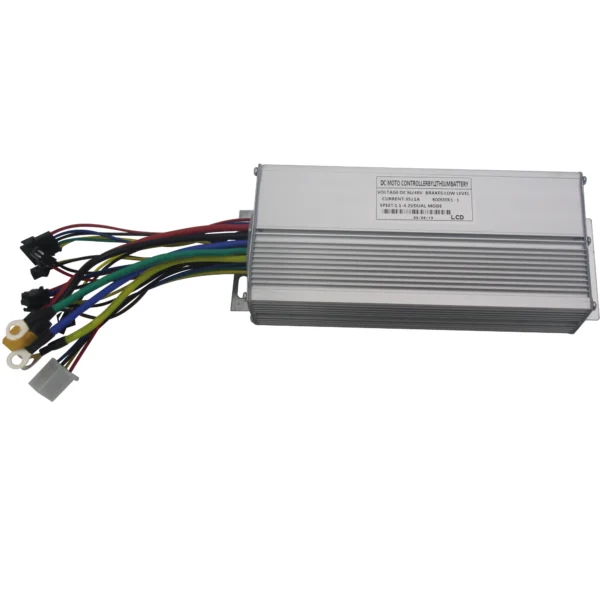

Controller

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

Controller Bag

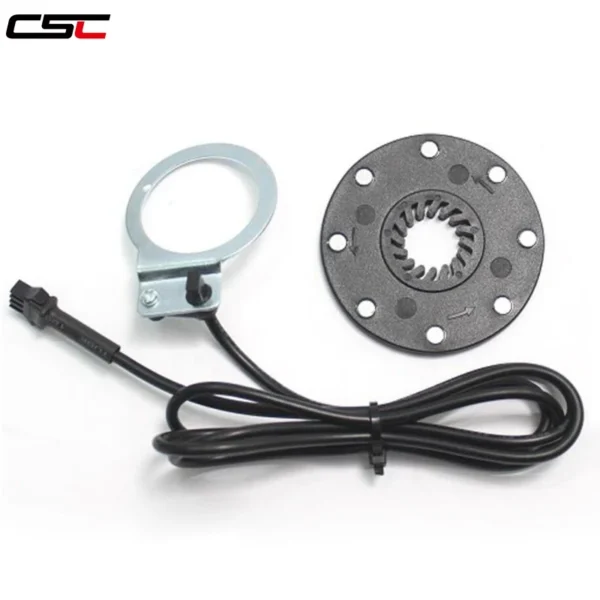

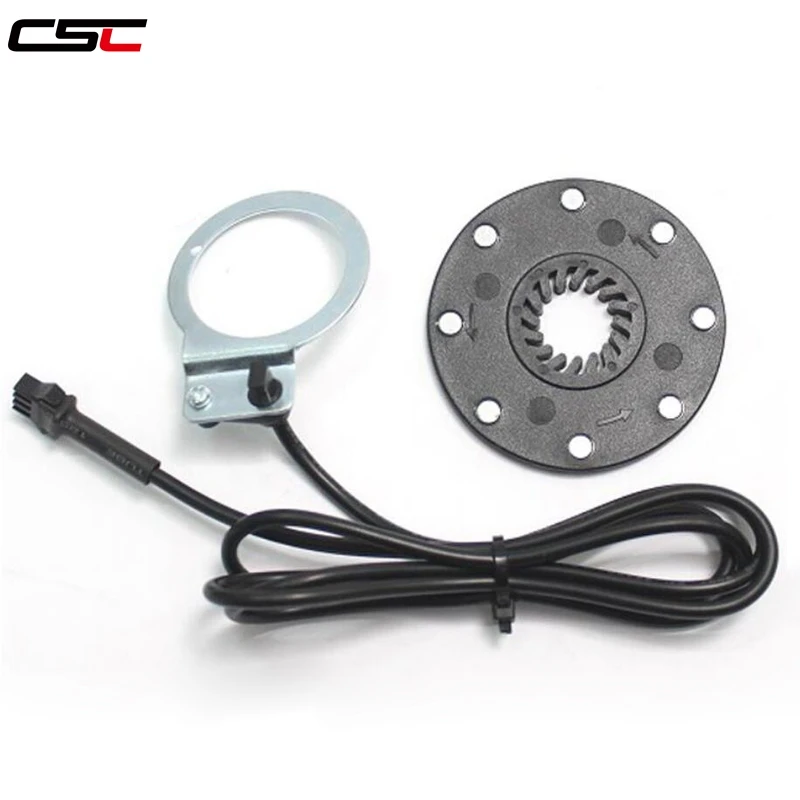

PAS

KT BZ-4(8) Magnet

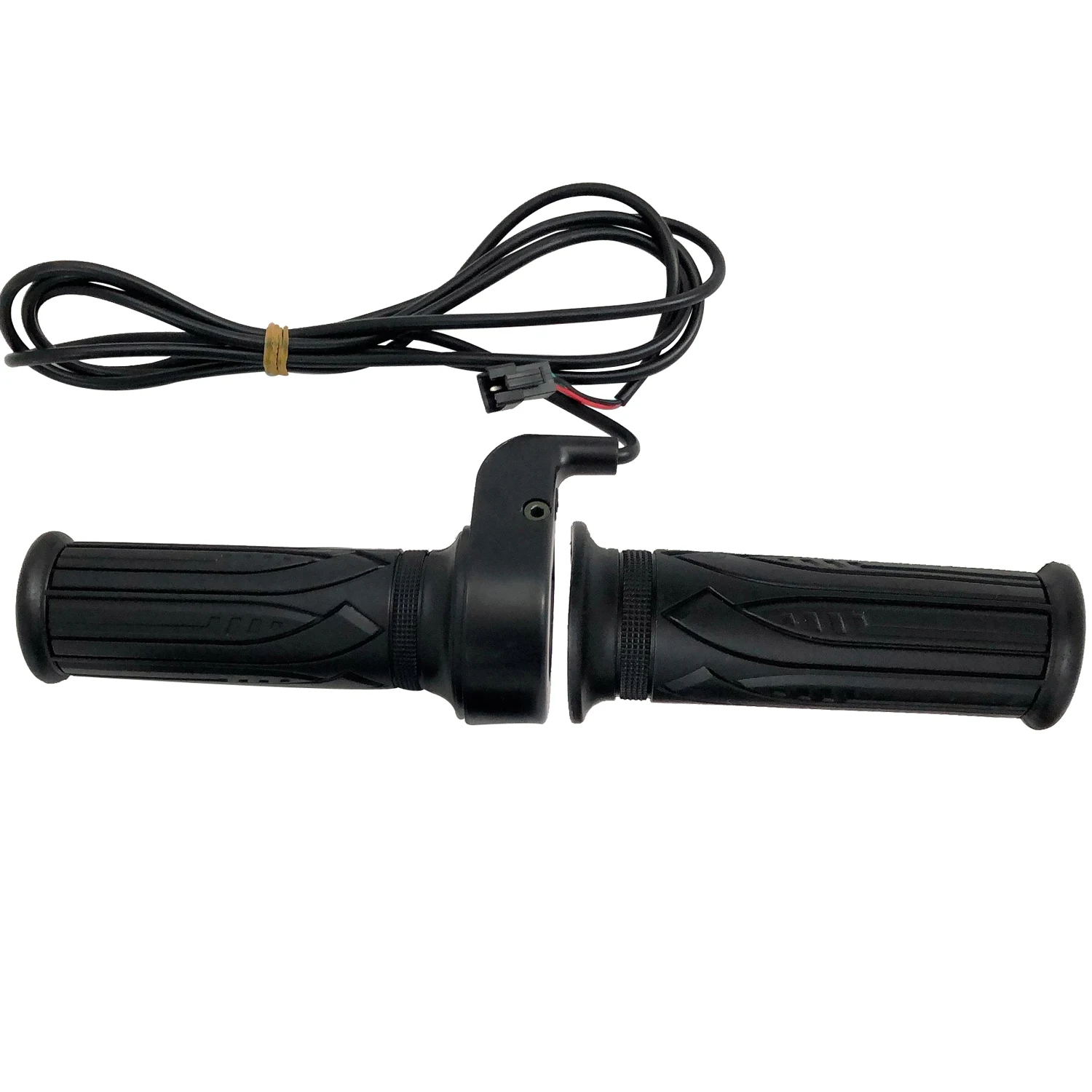

Throttle

SW900 display uses Twist Throttle

Power cut-off brake leaver
