Electric bicycle Conversion Kit hub motor Wheel Brushless 48V 1000W 1500W bike Kit MTX SUNRINGLE e-bike

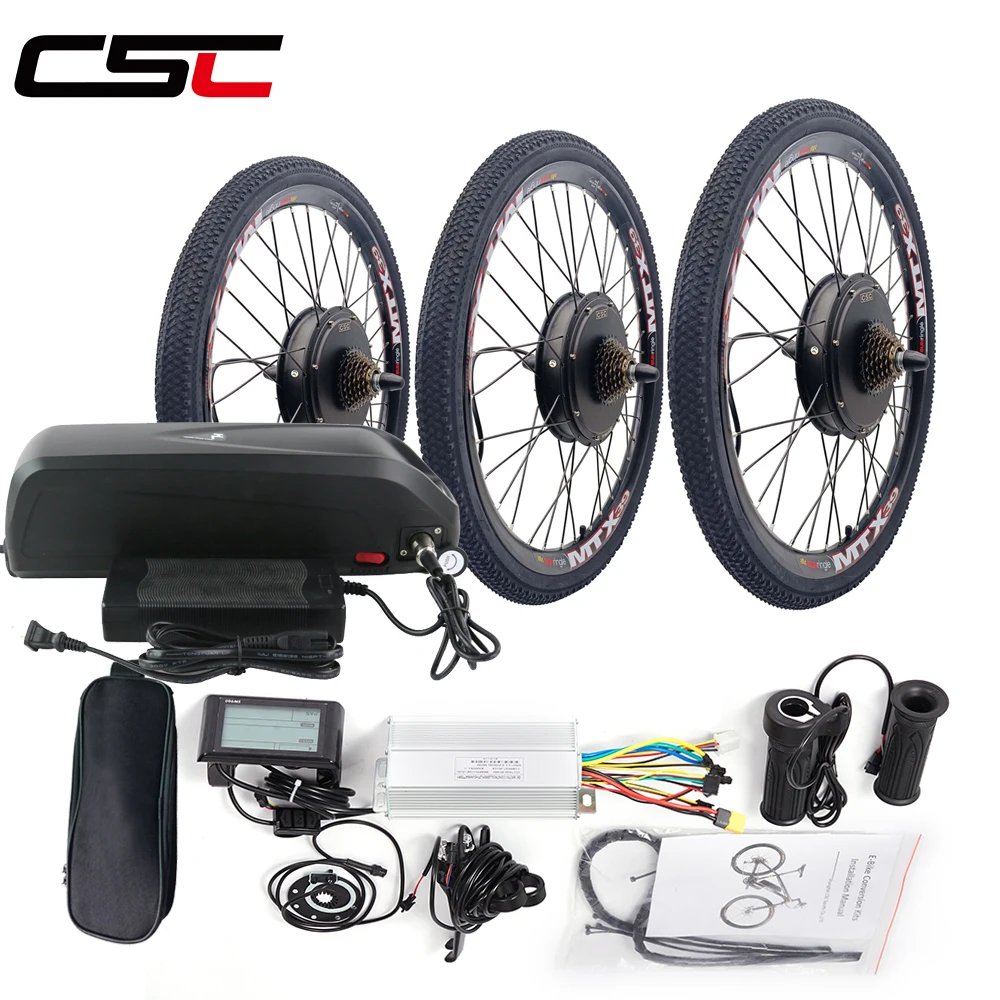

Packing List

1 * Battery and charger （If you order "NO battery", the battery is not included）
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

Battery

48V 18AH Battery
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.77kg
Cycle life: ≥80% capacity after 800 cycles.
————————————————–
48V 24AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————–

Motor Wheel

1. Full Speed:
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:
Brushless Non-gear Hub Motor
3. Rim: Double-wall Aluminium Alloy Rim
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:
30-40NM for 1000W
35-45NM for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W

Display

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

Controller Bag

PAS

Throttle

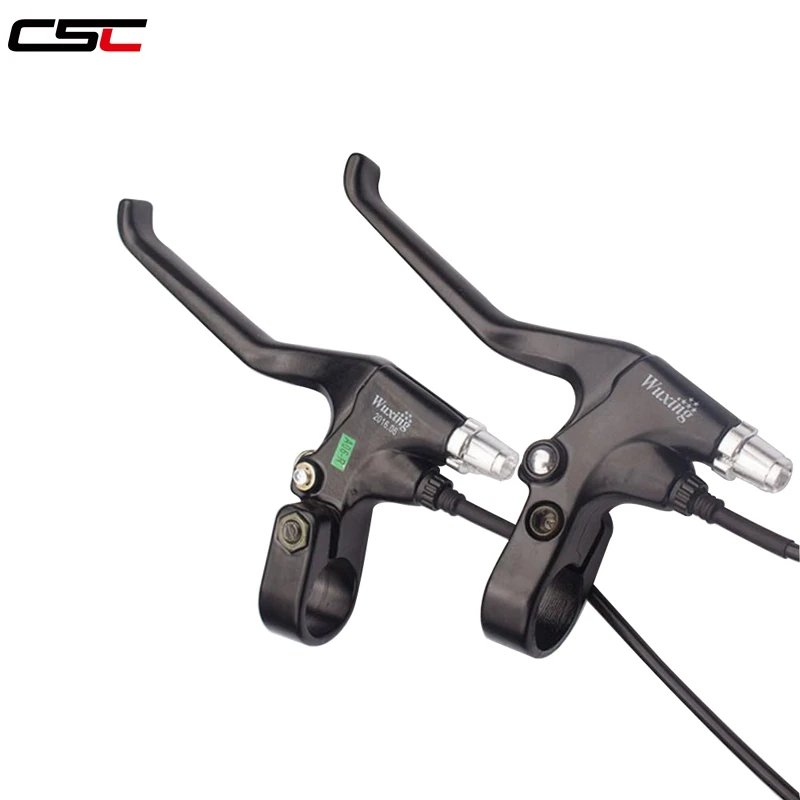

Power cut-off brake leaver

Shipping & Warranty

Tracking number is also available for Seller's shipping method.

1. ) Price includes all taxes

2. ) If you have any question after you receive the items, please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services.
