CSC DIY EBIKE Conversion Kit 26in 27.5in 29inch 48V 1000W 1500W MTX SUNRINGLE brushless motor electric wheel for bicycle

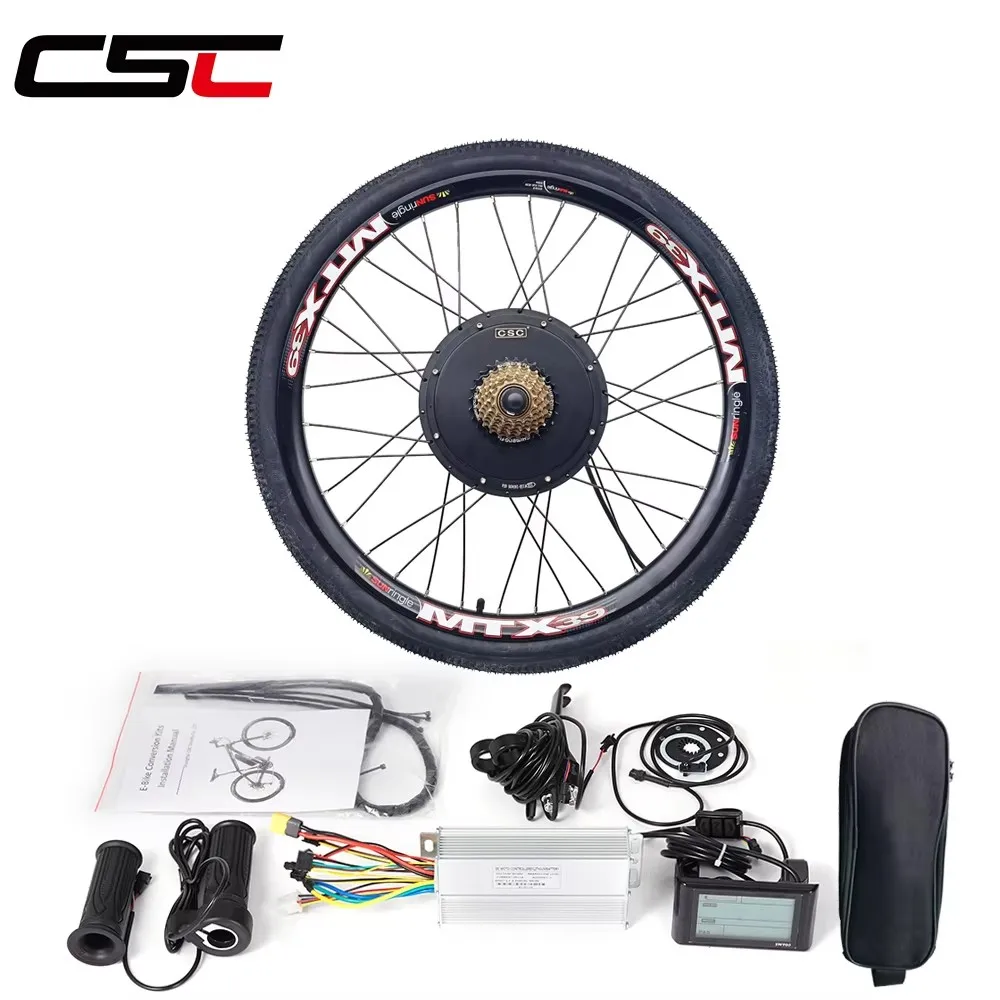

Packing List

Noted:Conversion Kit not include Battery, ( If you need a Battery,Please contact us for an additional fee )
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

Motor Wheel

1. Full Speed:
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:
Brushless Non-gear Hub Motor
3. Rim: Double-wall Aluminium Alloy Rim
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:
30-40NM for 1000W
35-45NM for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W

Display

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

Controller Bag

PAS

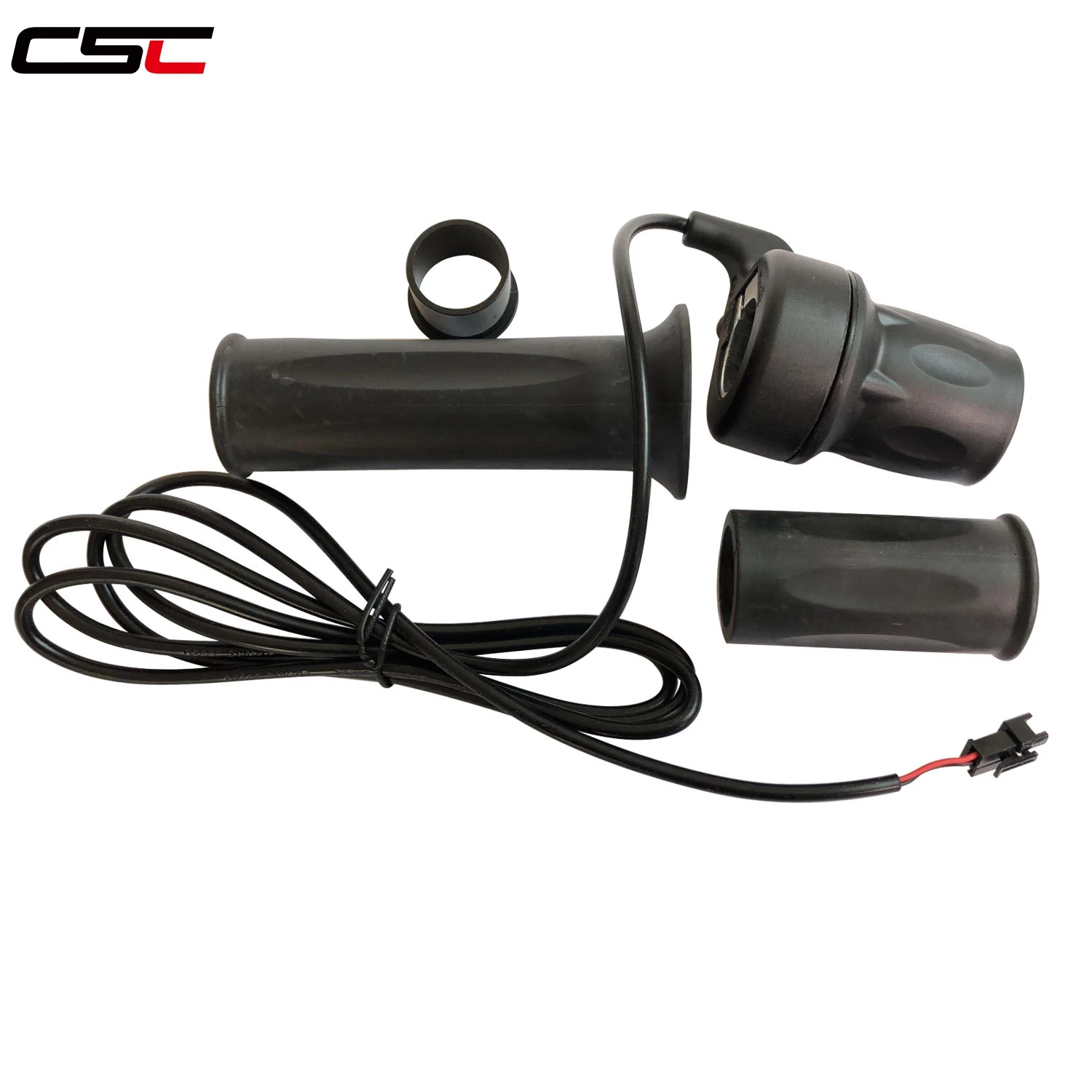

Throttle

Power cut-off brake leaver
