20″ 48V 1000W Front/Rear Wheel Electric Bike Conversion Kit, E-Bike Powerful Hub Motor Kit with SW-810LED Display

Description

No matter where you are, your bicycle needs a high-performance wheel. This 20-inch wheel conversion kit is exactly what you need! This wheel has a premium material, allowing you to maintain control in various environments. Whether on forest trails or rugged paths, it allows you to travel smoothly, and takes you to even farther destinations. Whether you are a beginner or an experienced rider, this wheel conversion kit is your ideal choice. Come and buy this excellent kit and enjoy the fun of exploration and challenges!

Key Features

Strong Compatibility: The front wheel is well-compatible with mainstream disc brakes or V-brakes in the market, ensuring fast and stable braking during high-speed driving. Featuring a large loading capacity (286.6lbs), whether a professional athlete or a leisure sports enthusiast, it can provide a thrilling cycling experience.

Outstanding Performance: It adopts high power (1000W) that can provide a rated speed of 440 rpm and a Max. no-load speed of 42km/h, as if weaving through a time and space tunnel intertwined with technology and speed, perfectly interpreting the aesthetic of speed.

User-friendly Design: The thumb throttle integrates the switch and throttle, greatly improving your operational convenience and freedom during driving. There is a battery indicator and three-speed adjustments on the LED display, ensuring that you always know riding states and making your cycling plan more reasonable.

Easy to Install:This conversion kit is easy to install. You only need to follow the simple steps shown in the instructions and install it gradually. It can be put into use soon.

Thoughtful Design: Its brushless controller not only has low noise but also saves energy, achieving a high degree of unity between economic and environmental benefits. Its crankshaft speed sensor can detect the magnetic field and movement speed of the controller for easier driving, thereby achieving stronger starting and smoother riding.

High-quality Material:The wheel is made of high-quality Al-alloy material with high compressive strength and strong anti-corrosion ability. Its lightweight (18.3lbs) ensures the stability and durability of the overall structure, adapting to various riding environments.

Protective Packaging:We use protective foam to avoid damage to the machine during transportation, maximizing its safe arrival.

Satisfaction Guarantee: No matter what problem you encounter or have any questions, please contact us. We will reply and solve the problem for you as soon as possible.

Details

Cable Ties:They are suitable for organizing the various complex lines, avoiding potential safety hazards caused by line crossing and entanglement.

Steel Spokes: They are made of high-quality steel, which can absorb the impact and vibration during cycling, thereby preventing wheel deformation.

Controller Bag: It is designed for easy mounting of the controller on bicycles, aiming to meet your carrying needs during your journey.

Application

It is only suitable for front-wheel installation on two-wheeled bicycles. It can easily handle forest roads, steep hills, dirt roads, and gravel roads.

Specification Front Wheel 48V1000W

Color: Black + Red

Material: Al-alloy, 45# Steel

Bike Type: Electric Bike

Placement on Bicycle: Front

Brake Style: Disc Brake or V-brake

Controller Type: BrushlessController

Controller Voltage: DC48V/30A

Power: 1000W

Rated Speed: 440rpm

Rated Torque: 45NM

Speed: Max. 42km/h (No Load)

Loading Capacity: 130kg/286.6lbs

Front Dropout Spacing: 10cm/3.94in

Rim Width: 3cm/1.2in

Rim Outer Diameter: 39.5cm/15.6in

Rim Inner Diameter: 36cm/14.2in

Motor Hub Diameter: 22cm/8.7in

Axial Length: 18cm/7.1in

Controller Size: 21*8*4.3cm/8.3*3.2*1.7in

Controller Bag Size: 30*20cm/11.8*7.9in

Package Size: 50.3*23.5*51cm/19.8*9.3*20.1in

Net Weight: 8.3kg/18.3lbs

Gross Weight: 9.7kg/21.4lbs

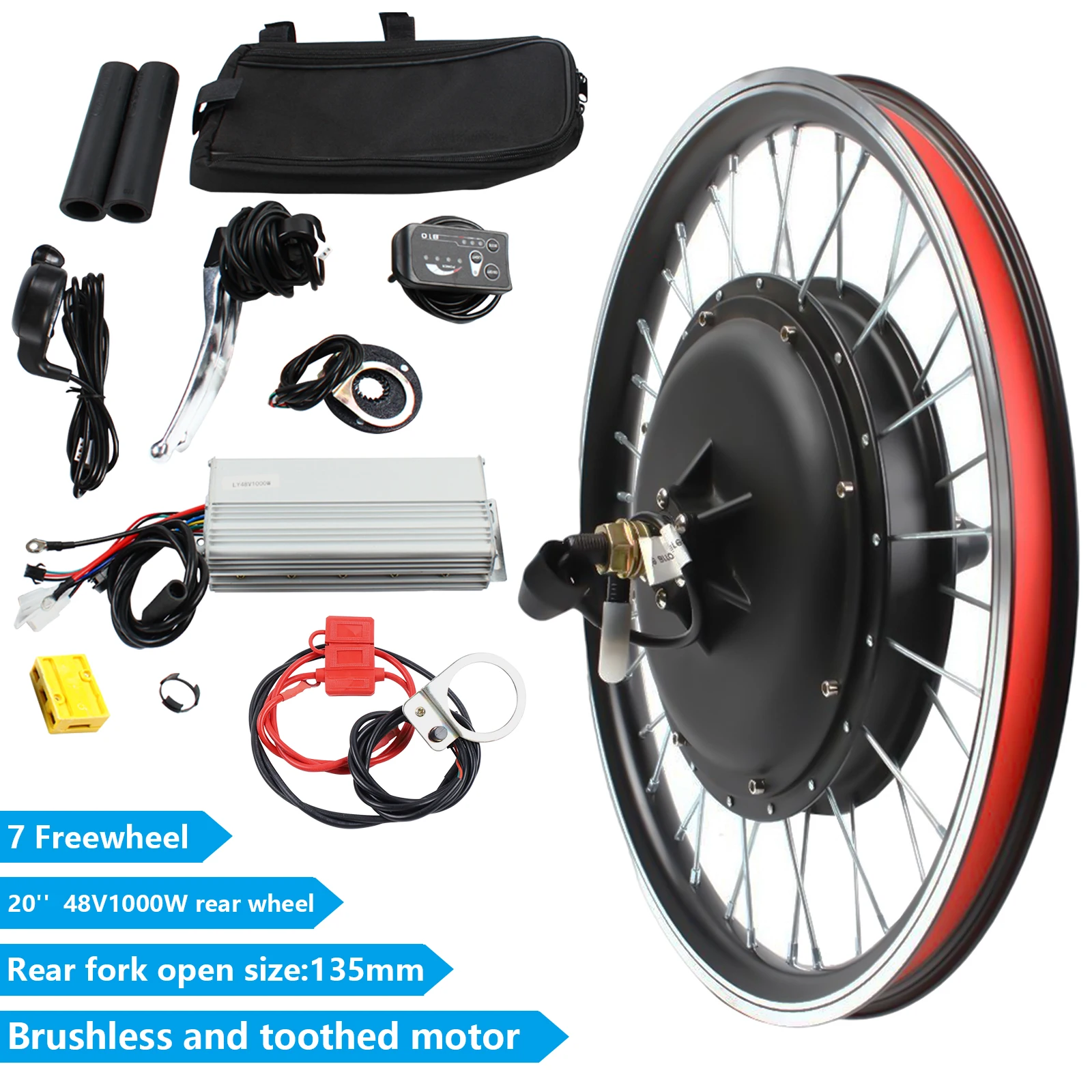

Specification Rear Wheel 48V1000W

Materials: Aluminum, Iron, Copper, Magnetic Steel

Process:  Baking Paint

Color: Silver, Black

Style: Modern

Assembly Required: Yes

Installation Posituon: Rear

Applicable Wheel Size: 20 Inches

Motor Type: Brushless Toothless Motor

Hand Brake Type: Disc Brake/V-Type Brake

Voltage: 48V

Power: 1000W

Empty Speed: 43km/26.72mile/h

Load Speed: 35-38km/21.75-23.61mile/h

Rear Fork Open Size: About 135mm/5.31in

Controller: 48V 30A

Gear Adjustment: 3 Gears

Assist: 5 Magnetic Point Assist Sensor, Pedal Assist Sensor

Brake Lever: Power Cut-off Brake Lever

Throttle: Thumb Throttle

Display: SW-810 LED Display

Wiring Mode: Waterproof Wire for Outgoing Motor, Common Wiring for Other

Efficiency: ≥82%

Climbing Angle: 12°

Rated Speed: 440PRM

Rated Torque: 40N.m

Rim Diameter: 42cm/16.54 in

Rim Thickness: 3.2cm/ 1.26 in

Load-Bearing Capacity: ≤140kg/308.64 lbs

Brake Line Length: 1.8m/5.9ft

Motor Diameter: 24.5cm/9.64 in

Motor Overall Width: 21.3cm/8.38in

Package Size: 51*50*23cm/20.07*19.68*9.05in

Gross Weight: 10.05kg/ 22.15lbs

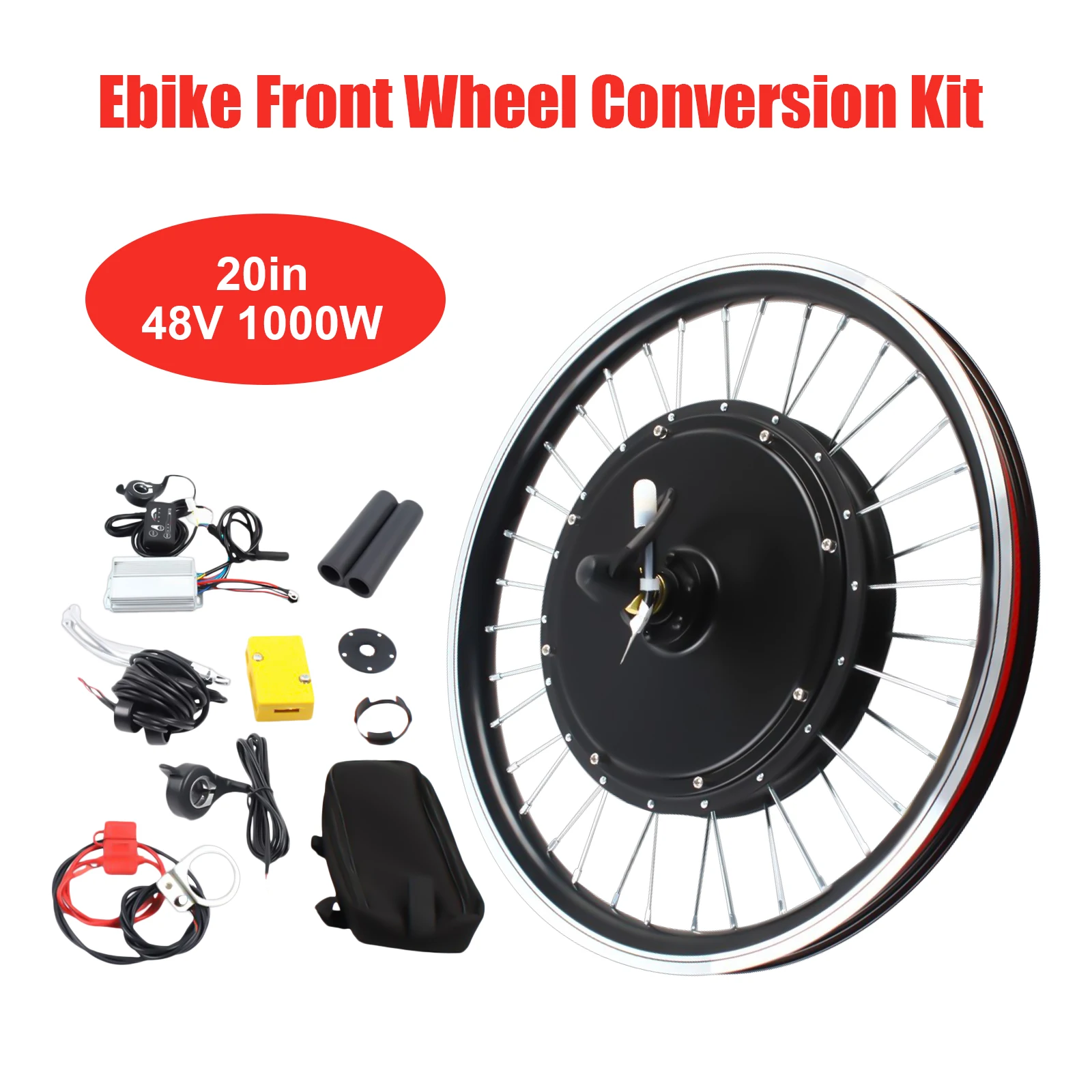

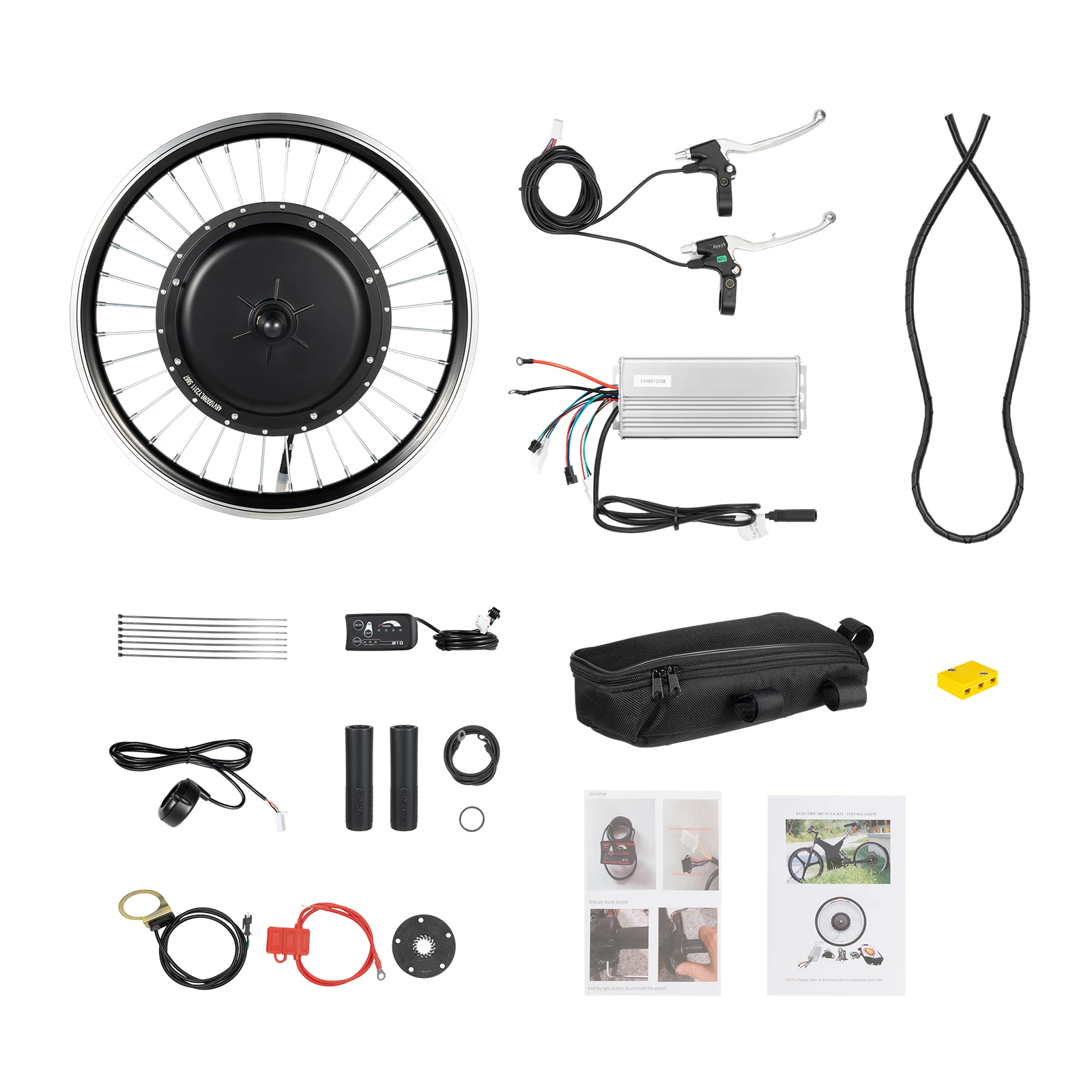

Package Included

1* Front Wheel

1* Brake Lever

1* LED Display

1* Thumb Throttle

1* Brushless Controller

1* Controller Bag

1* Junction Box

1 Set* Crankshaft Speed Sensor

2* Handles

1 Set* English Manuals

Other Accessories for Installation

Notes

1. This kit includes a 20in front wheel (battery and tire are excluded). Please measure the size of your existing tire before purchasing.

2. Please note that it is only suitable for front-wheel installation on two-wheeled bicycles. It cannot be used for three-wheeled or multi-wheeled vehicles.

3. When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged.

       4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
