Bafang 1000W 750W 500W 250W Mid Drive Motor 36V 48V 52V Electric Bike Conversion Kit Hailong Lithium Battery BBS01B BBS02B BBSHD

BAFANG M Series

MID-DRIVE SYSTEMS

【Universal Compatible】Bafang BBS02B Mid drive kit is compatiable with mountain bike,road bike and so on. This kit is designed to fit a standard 68-73mm (length) and 34-36mm (internal diameter) bottom bracket.

【Complete Accessories】 Comes with most accessories:Mid-drive motor BBS02B 48V 750W,brake lever,thumb throttle,chainring wheel,crank,LCD display,speed sensor and magnets,1T4 wire,nuts, battery and charger—optional, ebike head light(Free gift)

BRED  KOMPATIBILITET

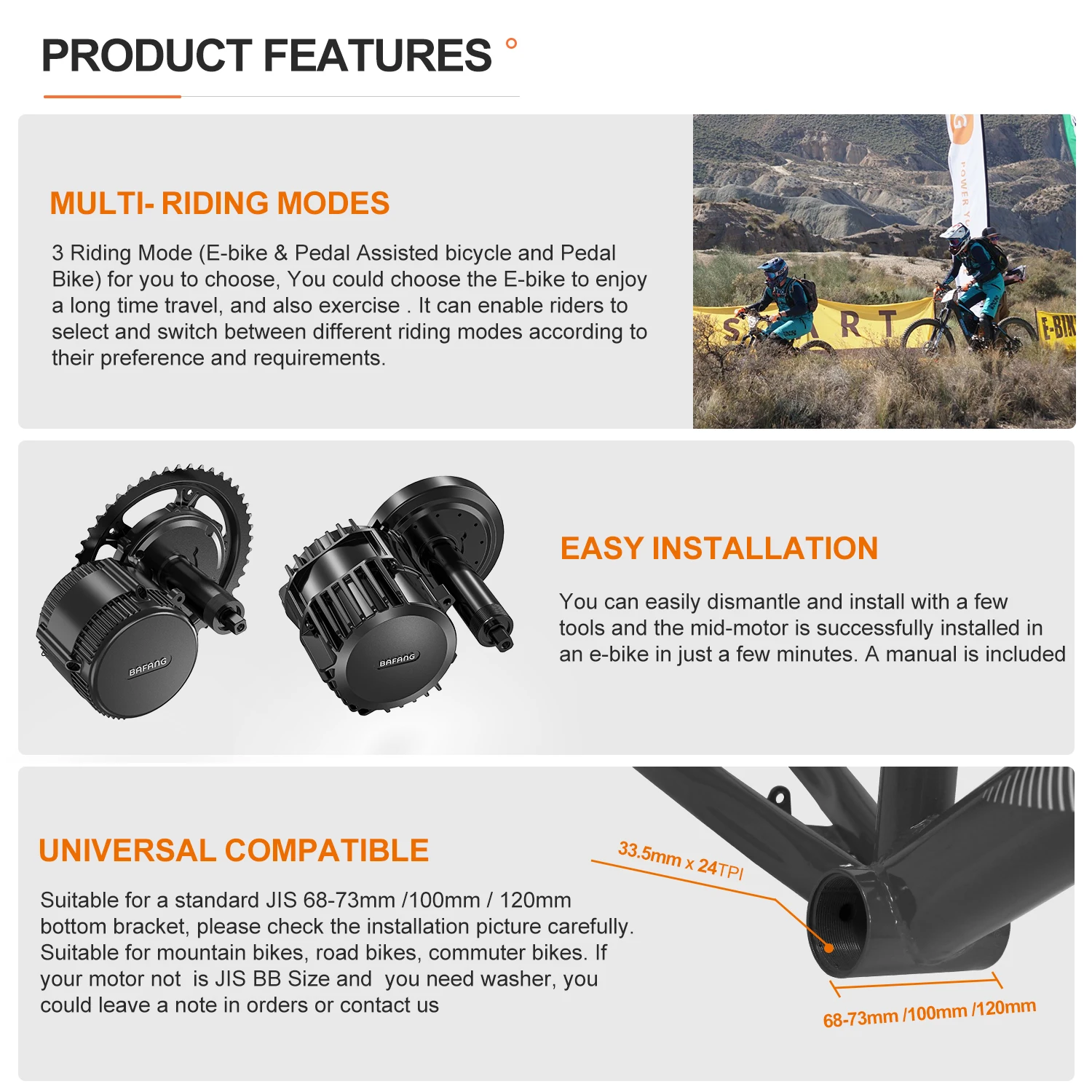

BAFANG mid drive kit is compatible with 68-73mm (length) and 34-36mm (internal diameter) bottom bracket . You can install the mid drive motor on your mountain bike , road bike and commuter bike , not very recommended for bikes with carbon fiber frame or coaster brakes. Powerful 8fun motor makes your cylcing trip more exciting. Look forward to seeing your eBike
conversion , enjoy the joy of riding right now

EASY INSTALLATION & SAFETY

Det er nemt at konvertere din cykel til en elcykel på kort tid. Kontakt os gerne for manual og installationsvideo. Motoren er udstyret med integreret controller og momentsensor, hvilket gør den mere sikker og stærk. Med høj effektivitet og lavt forbrug kan ingen modstå denne fremragende motor.

BATTERI VALGMULIGHED

DOWNTUBE /  REAR RACK

Form follows function. Both elegant and practical, semi-integrated batteries make lighter frames possible, while also allowing easy handling, charging and storage. Combining high power and light weight, downtube batteries offer a convenient and dependable package for any kind of  eBike and rider experience.

Formfollows function! In this case, the semi-integrated battery makes lighter frames possible – and also easier handling. you'll get a convenient package for any kind of eBike and long range ride experience.We provide Multi battery for you to choose , We provide 13Ah , 17.5Ah ,19.2Ah ,20Ah Capacity for you to choose .  If  you need long time riding , We advice that you could choose the bigger Capacity .

SKÆRMEVALGMULIGHED

Personalize Your  CAN Protocol Display Selection: Choose from a range of advanced displays to customize your e-bike experience: VD03 display included in the package, optional upgrade to P860ML display, EKD01 display, VD618 display, VD61 display and BAFANG's DPC010 & DPC080 display (BAFANG's Display can modify motor parameters on the Display or BAFANG GO+ APP, without the need for a USB programming cable). Each display offers unique features, ensuring you find the best display for your ride



What will i receive in package  ?

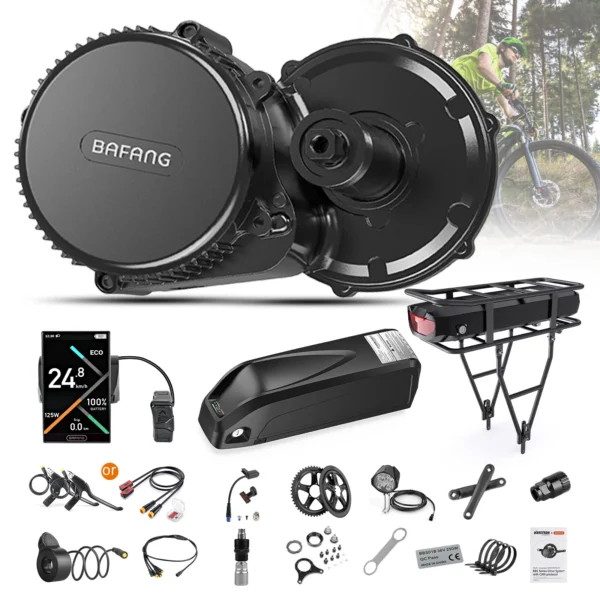

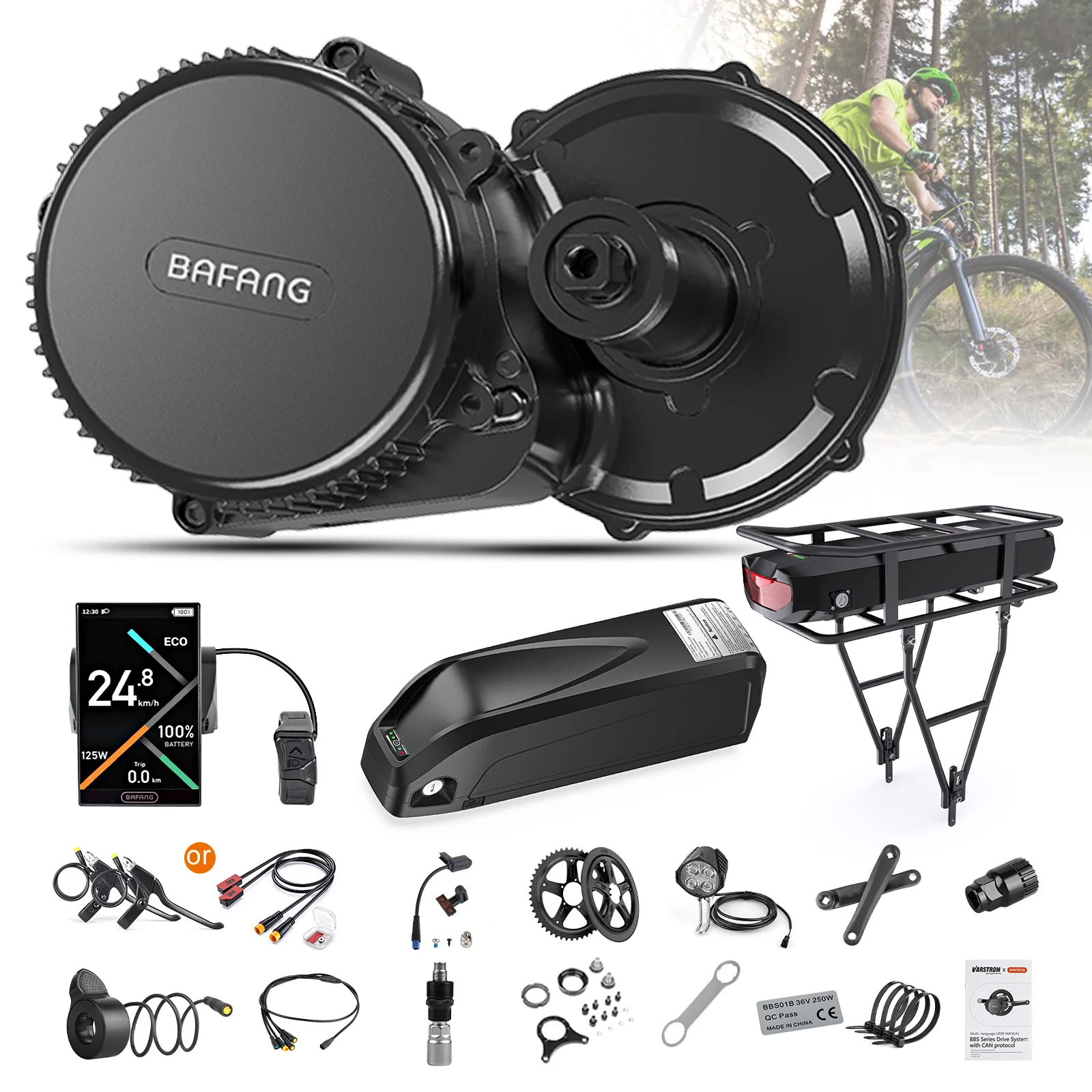

A750W motor , a battery (if you order it together), a display , a chainring with guard ( 36T chainring is without guard ), speed sensor , brake levers or brake sensors , cranks , a 1T4 EB-BUS cable , a thumb throttle , lock nuts , basic installation tools , headlight , gloves . If there is a part missing in the box , please don't be worried. Just messagel us , we will help you figure it out.
