CSC 48V 1000W 1500W Electric bicycle Conversion Kit with 48V battery 26in 27.5in 29inch motor Wheel MTX SUNRINGL RIM

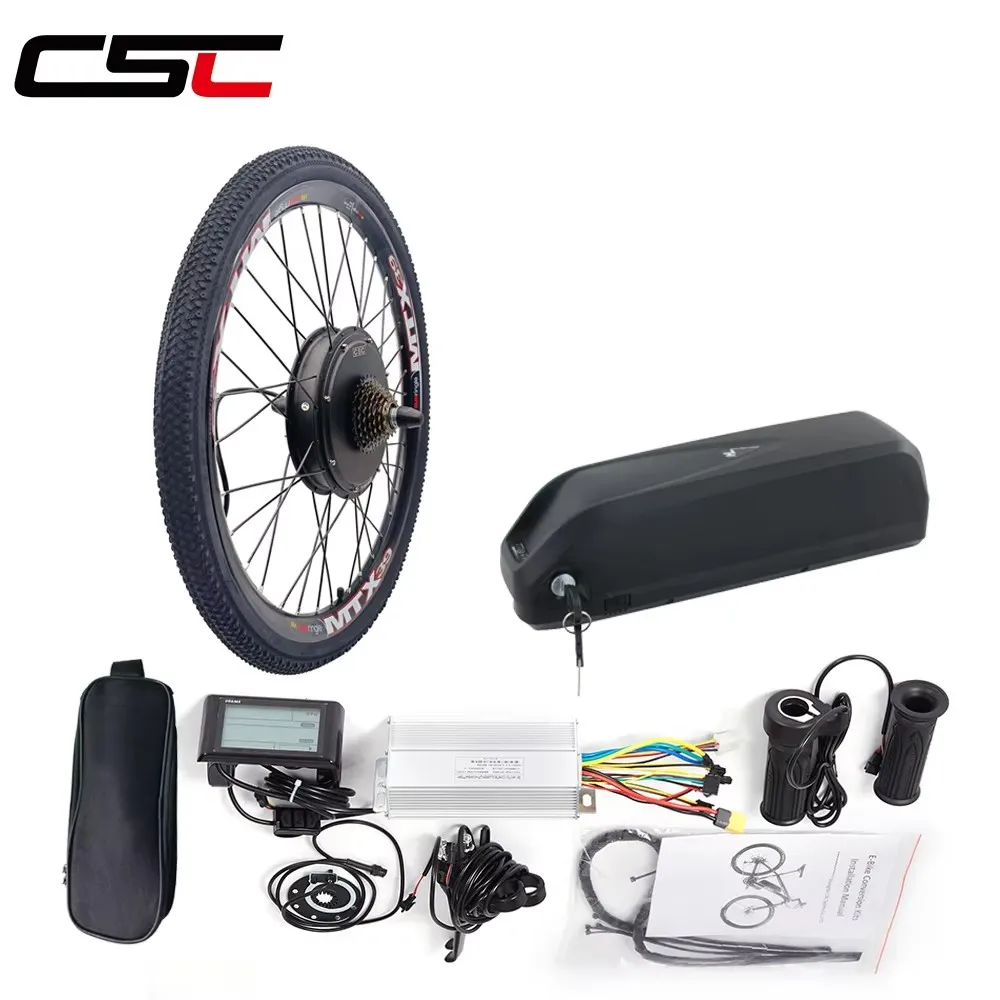

Packing List

1 * Battery and charger （If you order "NO battery", the battery is not included）
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

Battery

48V 18AH Battery
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.77kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————
48V 24AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————

Motor Wheel

1. Full Speed:
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:
Brushless Non-gear Hub Motor
3. Rim: Double-wall Aluminium Alloy Rim
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:
30-40NM for 1000W
35-45NM for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W

Display

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm

Controller Bag

PAS

Pedal Assistant Sensor BZ-4 8 Magnet

Throttle

Twist Throttle

Power cut-off brake leaver

Twist Throttle
