24” 36V 500W For/Bag Elcykel Konverteringssæt Elcykel Baghjulsnavmotor Konverteringssæt med LCD-skærm

24” 36V 500W For/Bag Elcykel Konverteringssæt Elcykel Baghjulsnavmotor Konverteringssæt med LCD-skærm

YDFKUA6VNDZH8

36V 500W Front

Specifikationer

Materiale: Aluminum Alloy

Farve: Sort

Suspension Type: Front

Special Feature: Electric

Assembly Requirement: Yes

Brake Type: Power-off Brake Lever (Applicable to V Brake, Disc Brake)

Motortype: Børsteløs Gear Motor

Gear Adjustment: 5 Gears

Recommended Battery: 36V 13AH or Higher Capacity Battery(Not Included)

Output Voltage: 36V

Power: 500W

Minimum Flat Fork Distance: 100mm/3.94in

Speed: 30-35km/h

Display Size: 6.8*9.6cm/2.67*3.77in

Packing Size: 55*55*22cm/21.65*21.65*8.66in

Motor Wheel Diameter: 61cm/24in

Gross Weight: 9kg/19.84lbs

Net Weight: 8kg/17.63lbs

Loading Capacity: 120kg/264lbs

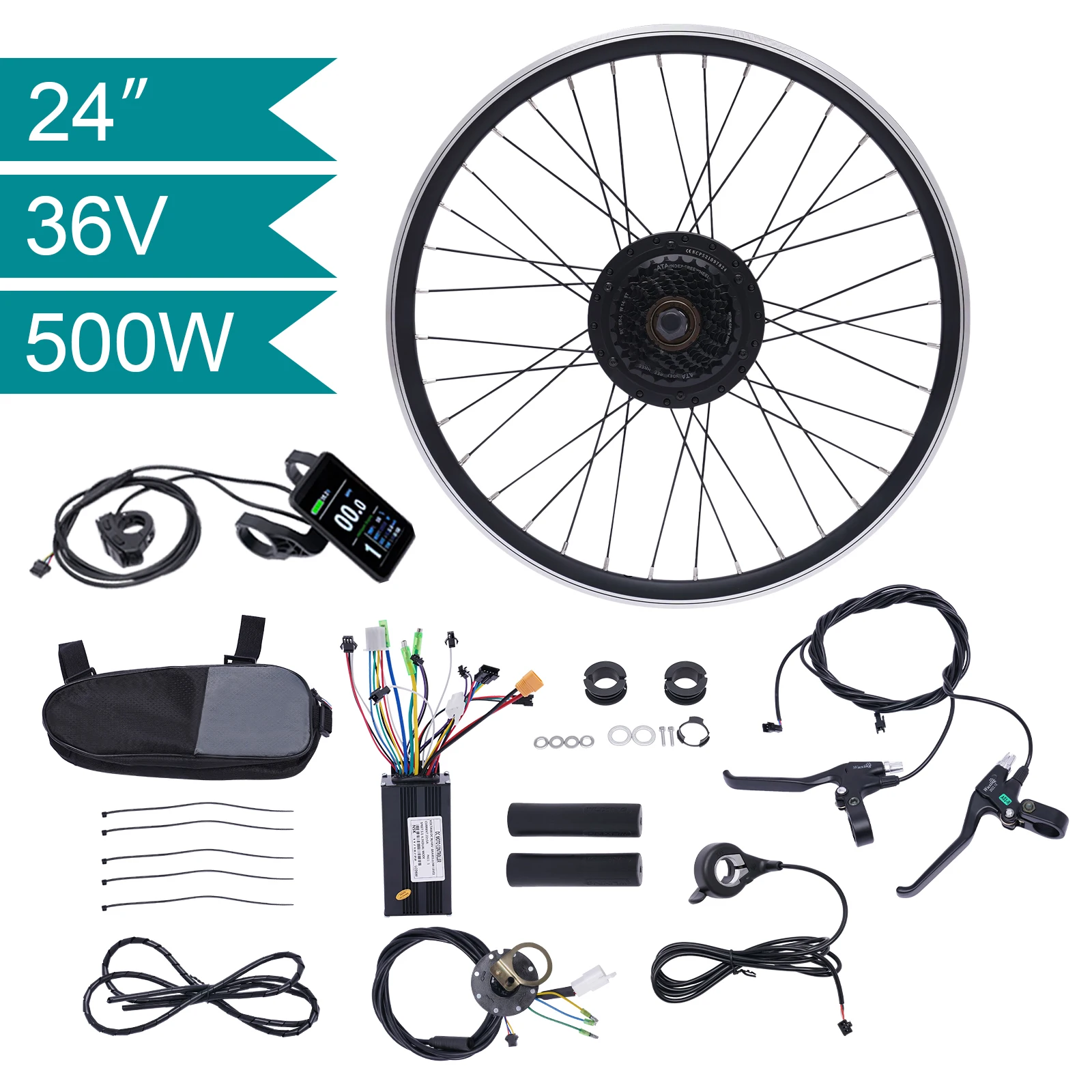

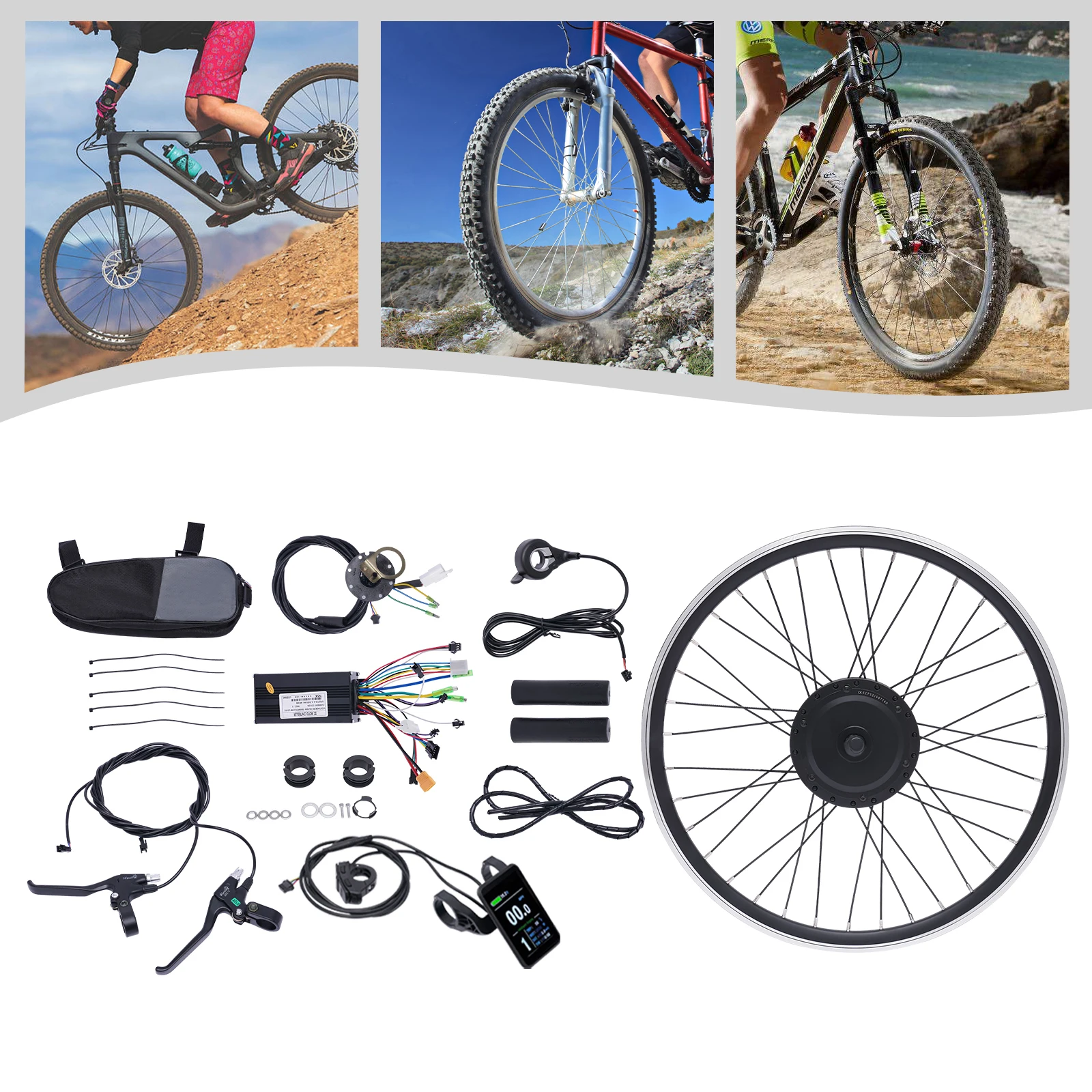

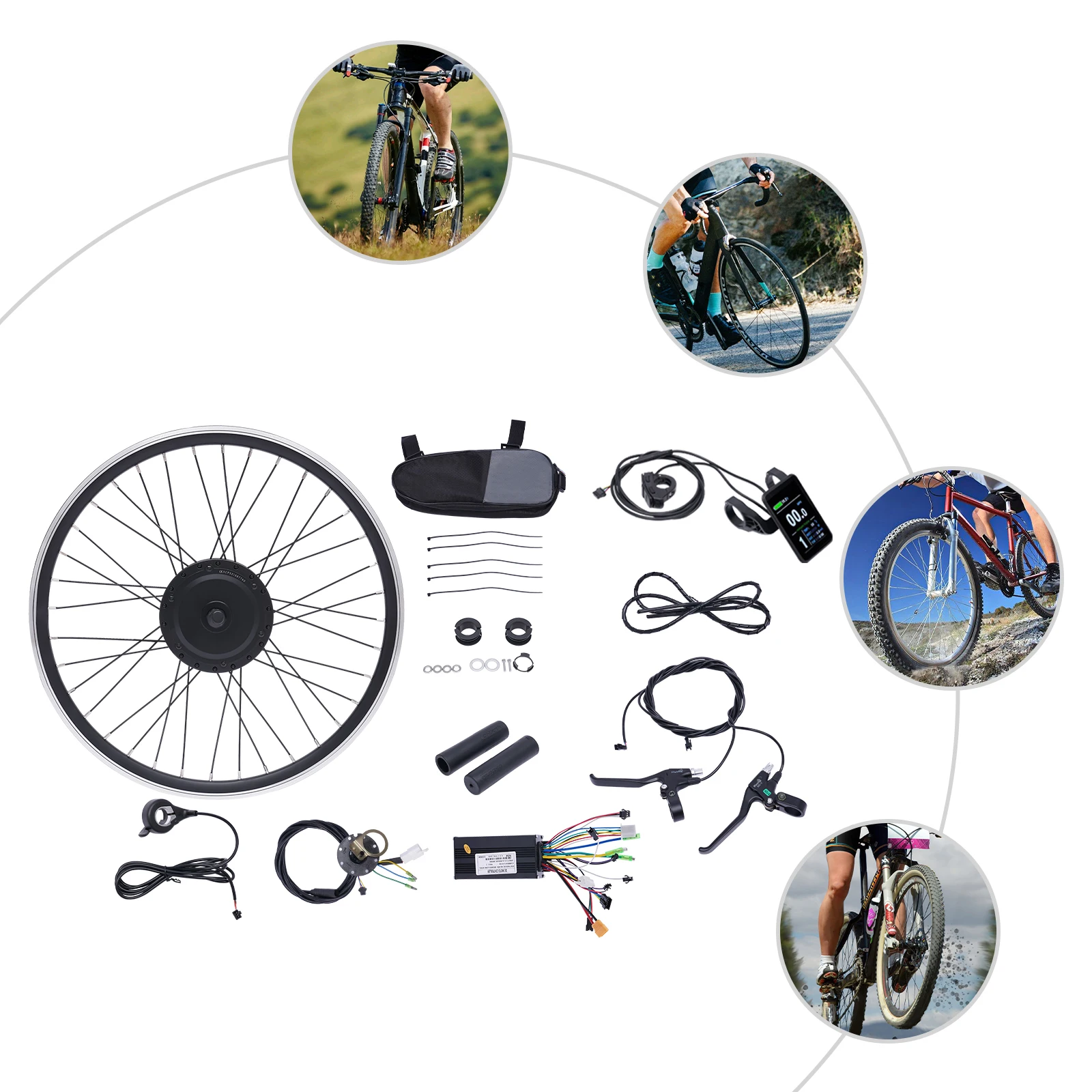

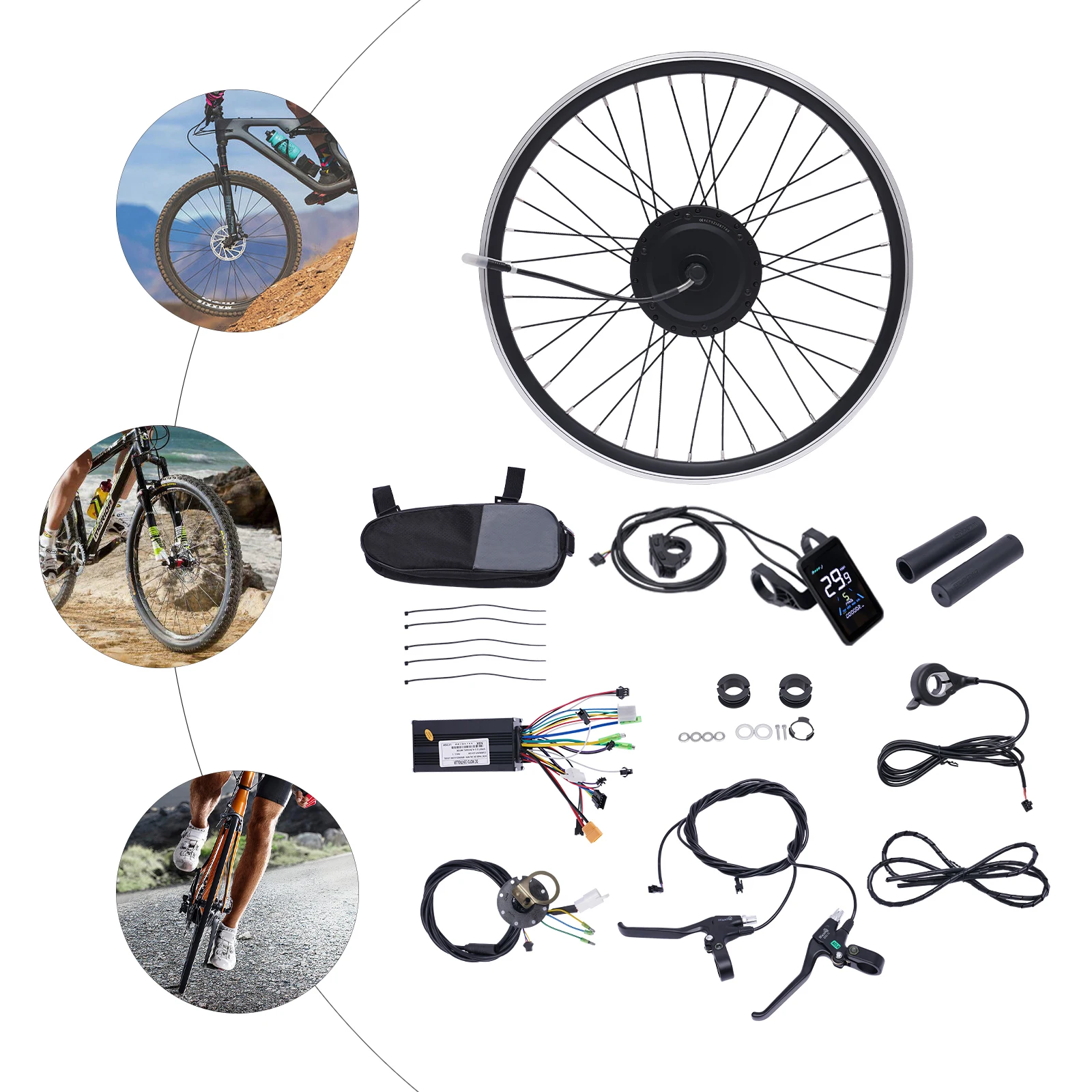

Package Included

1* Motor Wheel

1* Display

2* Brake Levers

2* Throttles

1* Padel Sensor

1* Controller

1* Thumb Knob Handle

1* Controller Bag

All Accessories for Assembly

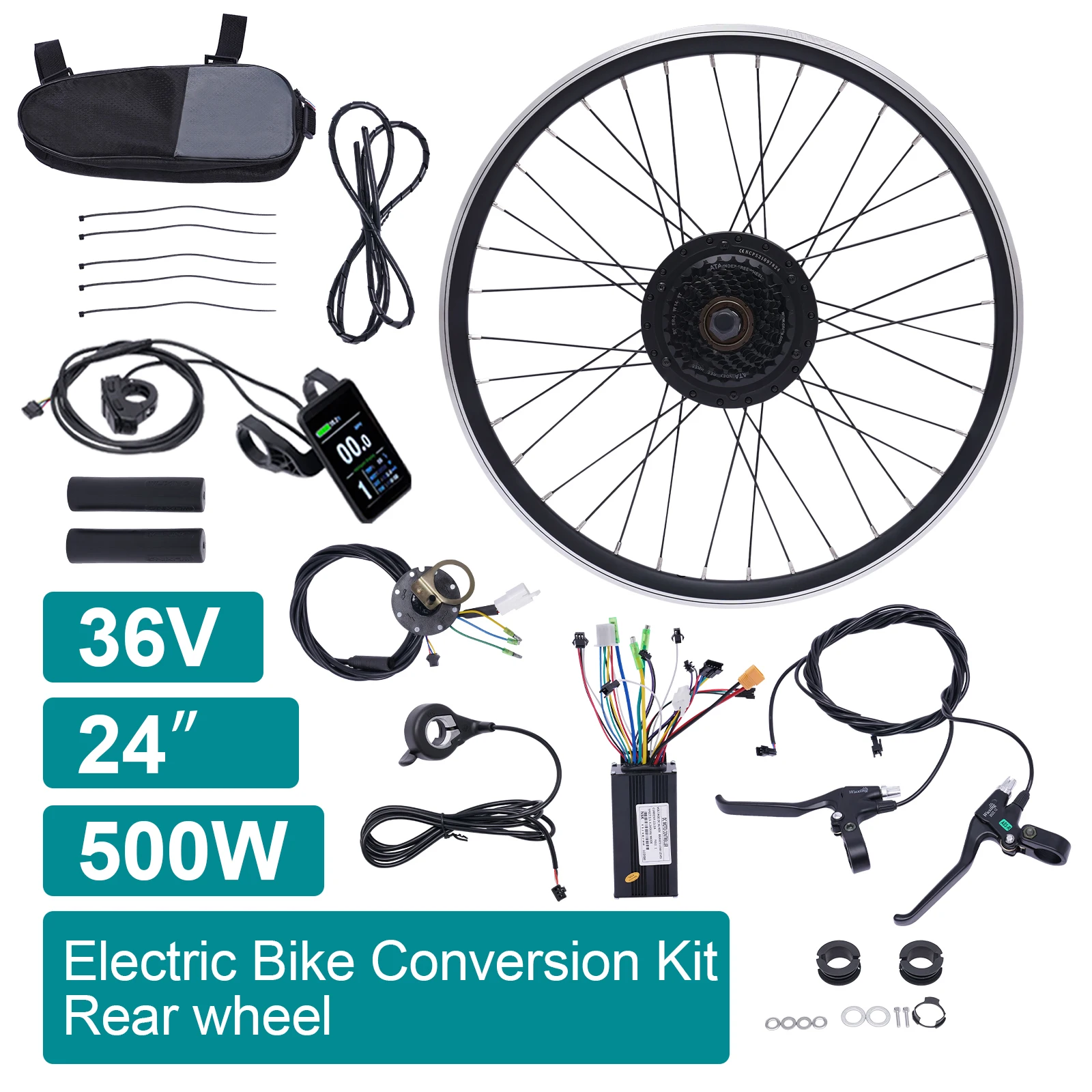

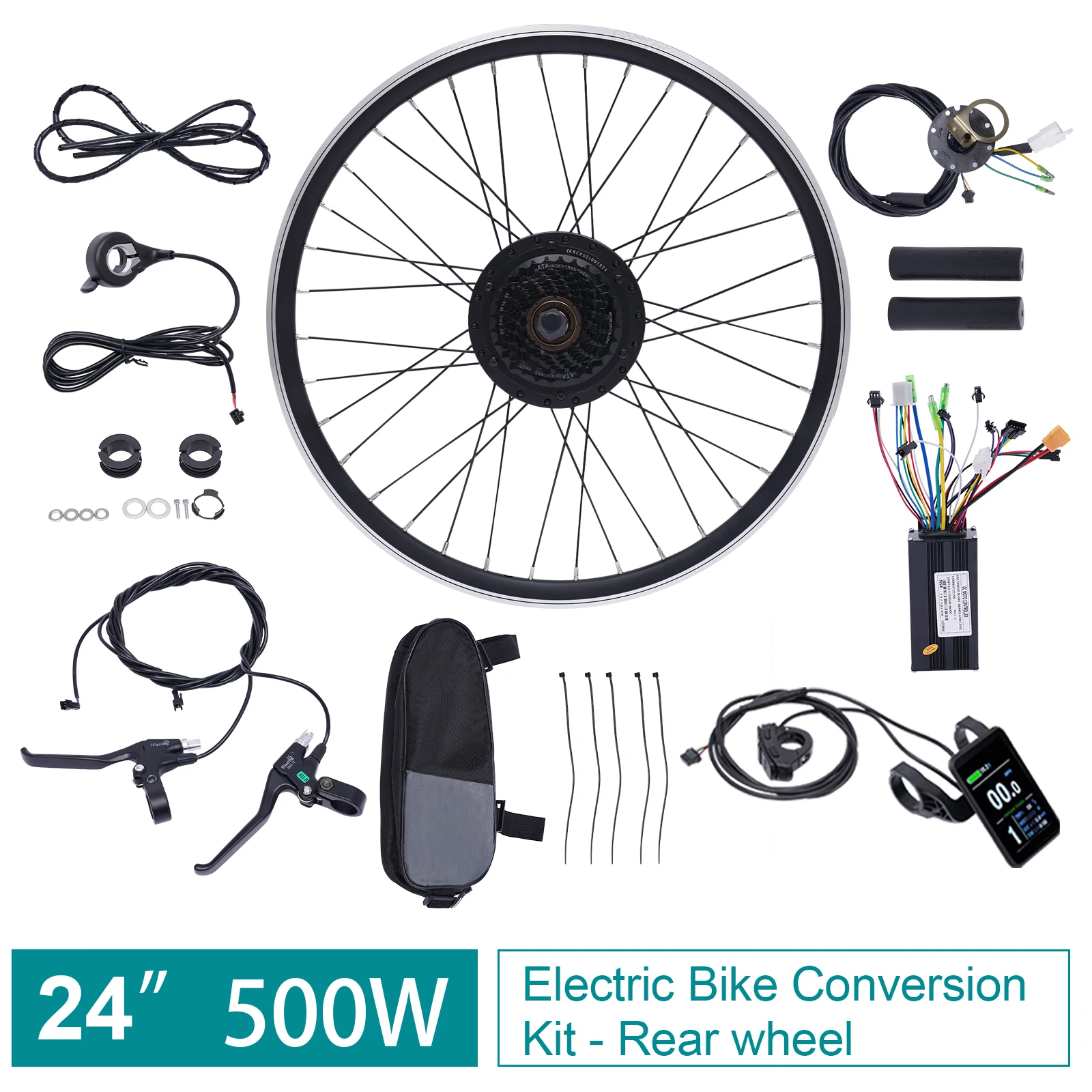

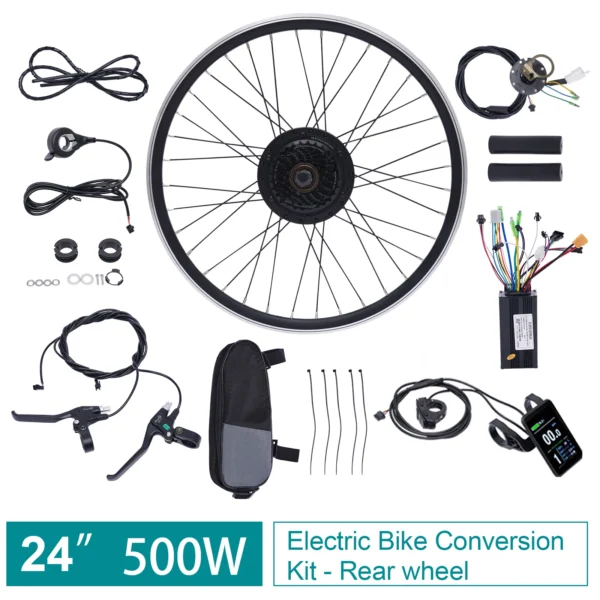

YDFKUA9ONDZH8 Rear Wheel

Specifikationer

Materiale: Aluminum Alloy

Farve: Sort

Suspension Type: Rear

Special Feature: Electric

Assembly Requirement: Yes

Brake Type: Power-off Brake Lever (Applicable to V Brake, Disc Brake)

Motortype: Børsteløs Gear Motor

Gear Adjustment: 5 Gears

Recommended Battery: 36V 13AH or Higher Capacity Battery(Not Included)

Output Voltage: 36V

Power: 500W

Minimum Flat Fork Distance: 100mm/3.94in

Speed: 30-35km/h

Display Size: 6.8*9.6cm/2.67*3.77in

Packing Size: 55*55*22cm/21.65*21.65*8.66in

Motor Wheel Diameter: 61cm/24in

Gross Weight: 9kg/19.84lbs

Net Weight: 8kg/17.63lbs

Loading Capacity: 120kg/264lbs

Package Included

1* Motor Wheel

1* Display

2* Brake Levers

2* Throttles

1* Padel Sensor

1* Controller

1* Thumb Knob Handle

1* Controller Bag

All Accessories for Assembly

Notes

1. While connecting the controller to the wires, please make sure that you connect the right colors to the controller. Otherwise, the controller may be broken.

2. This kit does not include tires, batteries and chargers, which need to be purchased by customers. Please check the product size and practical voltage before purchasing.

3. It is suitable for the rear wheel of a two-wheeled bike. It cannot be used for three-wheelers or multi-wheelers.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
